Lift Assist

LEEC Lift Assist

Class Leading Technology & Design

Features:

  • Simple space saving Storage.
  • Can be fitted to an existing installation.
  • Interacting with new or Existing equipment.
  • A simple cost effective, solution to body handling.

Ceiling mounted hoists are often expensive and not all sites have suitable structural fixing points to install these types of systems, LEEC has therefore developed an alternative method of transferring bodies between trays and coffins using available resouces and without lots of manual handling.

Most installations will have a Body Storage Cabinet and a Hydraulic Stacking Trolley, so by using the trolley as the height adjustable platform in place of a height adjustable hoist, this can reduce the cost outlay considerably.

SWL = Up to 65 Stone 412kg (Depending on fixings)

The Lift Assist System includes;

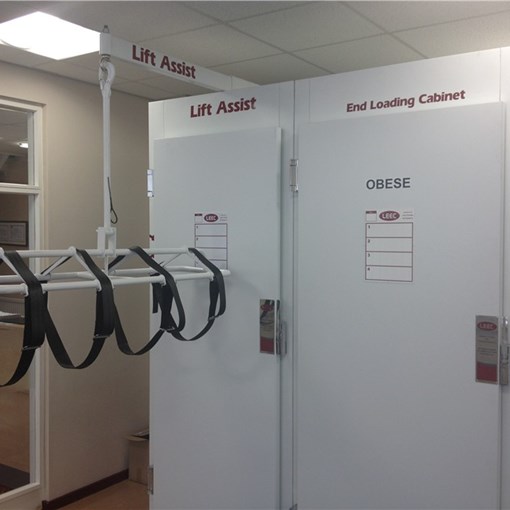

  • Body cradle with body securing straps
  • Removable tether bar with hooks to attach to the cradle and to beam
  • Roof beam with 2 pre-set lengths and hook mounting hoop
  • Cabinet reinforcement internal frames

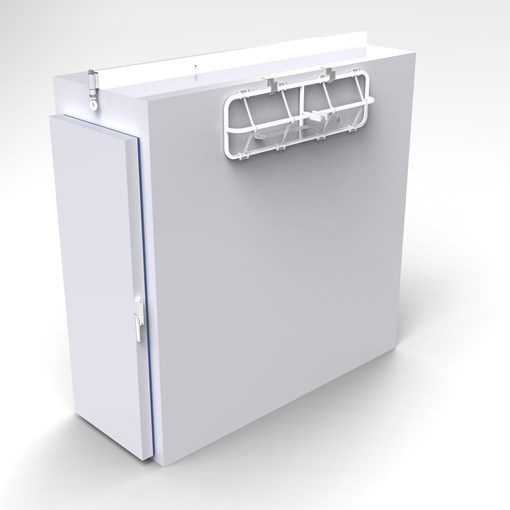

  • Side storage hooks for cradle and tether when not in use

Basis Operation;

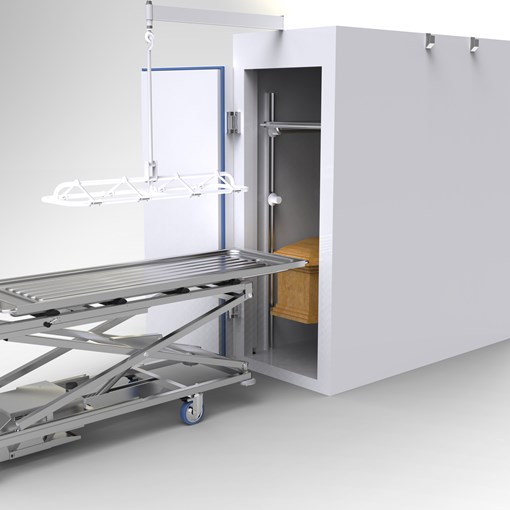

  • The Hydraulic Trolley is used to unload the tray from the cabinet and positioned underneath the Lift Assist Cradle
  • The tray is raised up to the cradle and the securing straps are fastened around the body
  • The trolley is lowered with the tray and the tray is then placed back in to the cabinet leaving the body held in the cradle of the Lift Assist

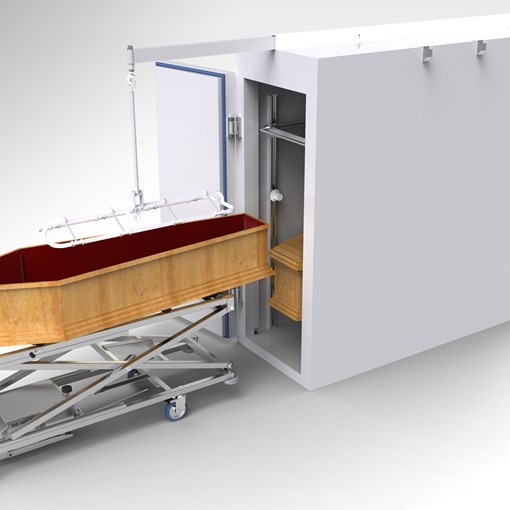

  • The hydraulic trolley collects a coffin and is then postioned underneath the body
  • The coffin is raised to encase the body and, the securing straps are then unfastened releasing the body inside the coffin

LEEC Lift Assist





Every LEEC Lift Assist is made to order to meet the exacting needs of every customer.  LEEC prides itself on being able to deliver exactly what the customer wants and relishes the challenge of producing products that are tailored to every specific customer need.

Below are the Dimensions of the Lift Assist but please be aware that the Dimensions may change on custom built installations, however LEEC will Provide Dimensions on every item before the order is confirmed.

Please do contact us for more information.

Lift Assist

Lift Assist Technical Data

Every LEEC Lift Assist is made to order to meet the exacting needs of every customer.  LEEC prides itself on being able to deliver exactly what the customer wants and relishes the challenge of producing a Product that is tailored to every specific customer need.

The main option that is available on the Lift Assist is the custom design to meet any specific cabinet design. Please be aware that LEEC will endeavour to meet every customer requirement request.

Please do contact us for more information.

Options

  • Wall mounting of the Lift Assist
