Hydraulic Embalming Trolley Fixed Handle

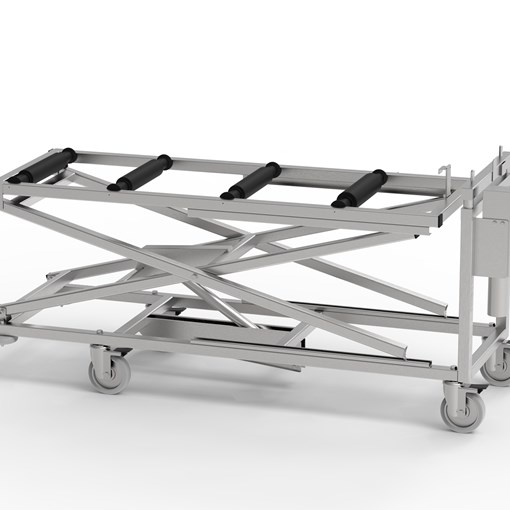

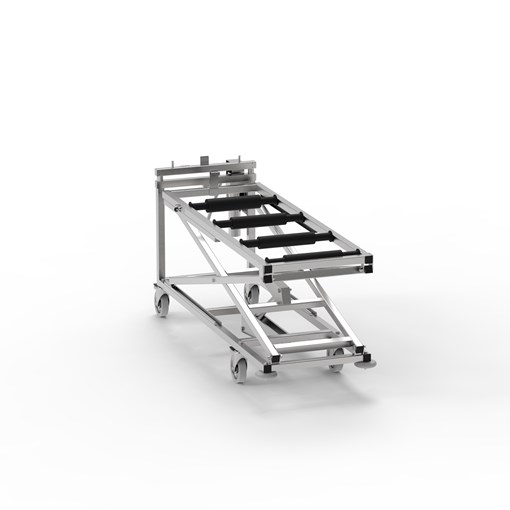

LEEC Hydraulic Embalming Trolley, Model HET-F

Class Leading Technology & Design

Features:

  • Single person operation
  • Variable tilt (Adj. handle)

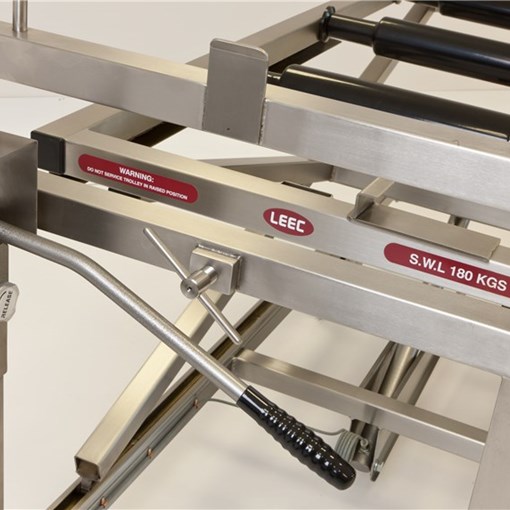

  • Dual acting manual pump
  • Length - 1920mm
  • Height - 400-1660mm standard lift range
  • Rated to 180kg, 28st lift
  • Width - 580mm frame, 655mm overall (buffers)

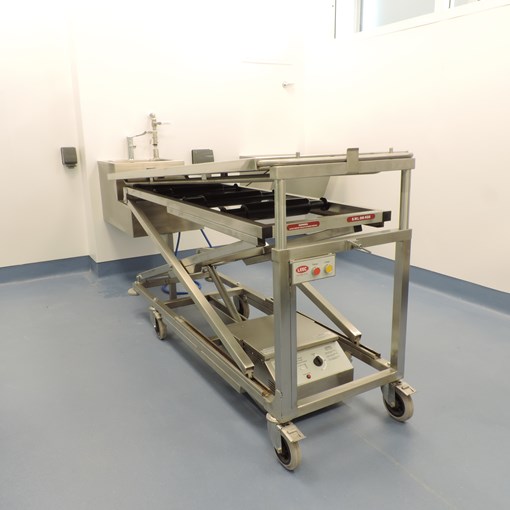

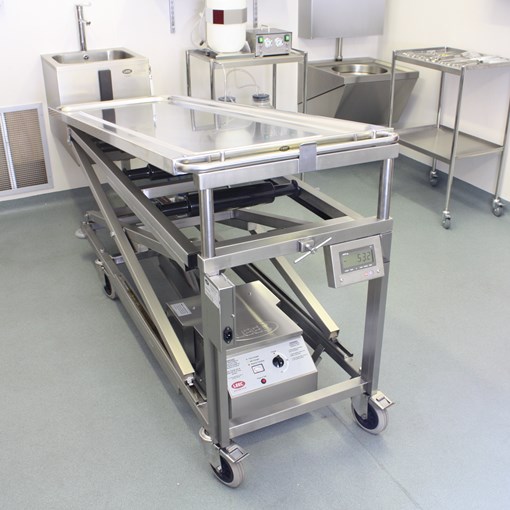

Embalming room with HET-F

Designed to offer a versatile and stable platform for embalming and / or autopsy, this robust trolley offers a simple, yet effective approach to eliminating lifting within the mortuary, and allowing single person operation.

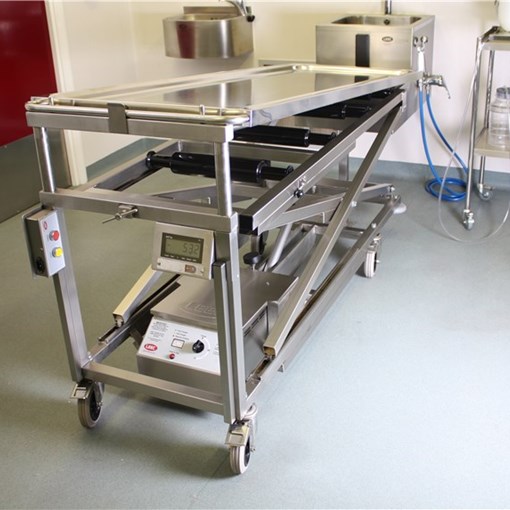

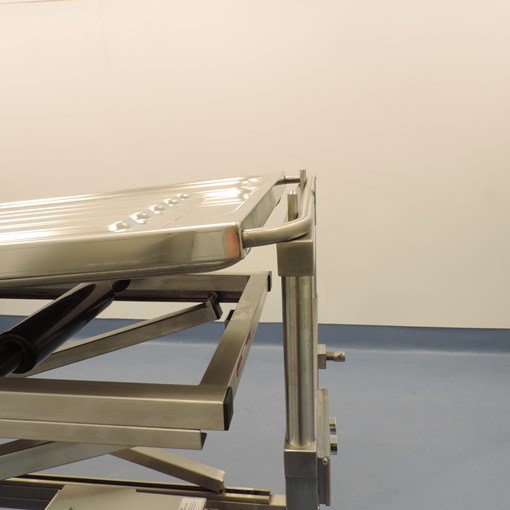

The embalming trolley, which doubles up as an embalming table, is used in the normal manner to unload the tray from the cabinet. With the handle set at a comfortable working height, the tray can be drawn over and locked onto the handle. With the tray captured, and as the trolley is depressed, the tray continues to incline until a suitable gradient is reached, or to allow connection to a drainage facility.

The trolley is particularly effective in a small or confined facilities, where space is at a premium, avoiding the need for other forms of transfer equipment.

Many users have found this trolley to be particularly beneficial for obese cases, where a specially adapted and reinforced unit, used with a wide tray, introduces the principle of a full handling system.

The standard unit is supplied as dual action manual unit, with a number of options to enhance the standard model, all of which are compatible with LEEC refrigerated cabinets.



Further Funeral Trolleys

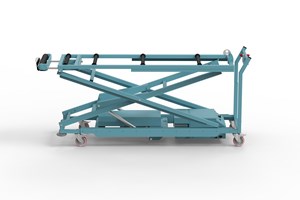

LEEC Standard Hydraulic Stacking Trolley  LEEC Hydraulic Stacking Trolley Featuring a simple yet robust construction, this trolley provides a stable and versatile platform which is easy to move and built to withstand heavy and continual use.
 LEEC Dual Purpose Trolley LEEC Hydraulic Embalming Table Designed to offer a versatile and stable platform for embalming and / or autopsy, this robust stainless trolley offers a simple, yet effective approach to eliminating lifting within the mortuary, and allowing single person operation.
 LEEC Fixed Top Trolley LEEC Fixed Top Trolley Designed to provide a low cost, alternative to the complete LEEC Body Handling System, this trolley can either be used alone or in conjuction with one of the LEEC operating stations.
 LEEC Roller Top Trolley LEEC Roller Top Trolley Stainless steel trolley fitted with an upper roller frame to allow simple tray transfer to/from a stacking trolley from either end. The frame is fitted with a lever mechanism which locates and lifts the tray by some 60mm for drainage purpose.
   LEEC Bier Trolley Fixed Height Bier Trolley, Model FB
 Mobile Instrument Trolley LEEC Mobile Instrument Trolley Stainless Steel morgue Instrument trolley fitted with one fixed shelf and mounted on 75mm castors
 LEEC Bariatric Viewing Trolley LEEC Viewing Trolley Rigid robust, fully welded steel frame trolley fitted with an upper roller frame to allow simple tray transfer to/from a stacking trolley from either end.
 LEEC 3 Tier   Transportation Trolley LEEC Transportation Trolley Transportation Trolley's are manufactured from grade 304 stainless steel fully welded construction with 4 swivel castors and wall bump guards.
  LEEC Low Loading Trolley This funeral director trolley is robustly constructed from 40mm heavy duty mild steel. It is specifically designed for reaching into low cabinets, this allows an extra space not normally accessible.

Every LEEC trolley is made to order to meet the exacting needs of every customer.  LEEC prides itself on being able to deliver exactly what the customer wants and relishes the challenge of producing a trolley that is tailored to every specific customer need.

Below are the Dimensions a standard Dual Purpose Trolley (embalming table and trolley) but please be aware that the Dimensions may change on custom built trolleys, however LEEC will Provide Dimensions on every item before the order is confirmed.

Please do contact us for more information.

Dimensions on a Standard Dual Purpose Trolley

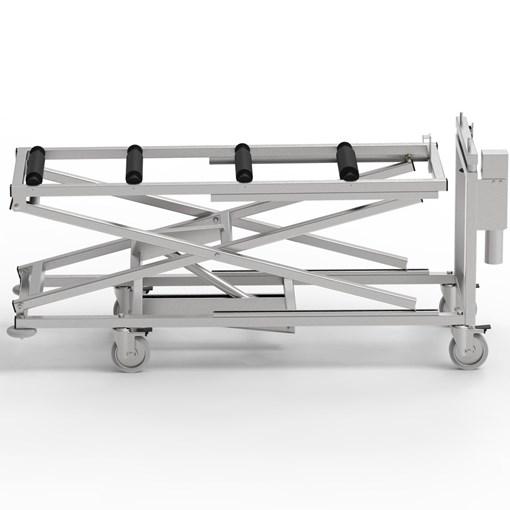

Side View HET-F
End View HET-F
 Top View HET-F


Every LEEC trolley is made to order to meet the exacting needs of every customer.  LEEC prides itself on being able to deliver exactly what the customer wants and relishes the challenge of producing a trolley that is tailored to every specific customer need.

Below are the Options which are available on the Dual Purpose Trolley.  Please be aware that LEEC will endeavour to meet every customer requirement request.

Please do contact us for more information.

Standard Dual Purpose Trolley Options

FD - Funeral Director Rollers

The plain trolley rollers are replaced with raised centre coffin rollers and a coffin lock on the top frame of the trolley which can be used to stop the rear roller rotating. Raised coffin rollers are compatible with all varieties of LEEC body storage trays as well as for a typical coffin.
