LEEC Warming Cabinets

LEEC Warming Cabinets

Class Leading Design & Technology

Features

  • Stainless steel construction
  • Energy efficient
  • Fully sealed chamber
  • Simple to use
  • Fan assisted air circulation
  • Fast recovery time
  • Accurate temperature control
  • Radius corners - easy to clean and disinfect
  • Replacement for KS1, KS2 and KS3 solution warming cabinets

MODEL RANGE

W100 (100 litres)

W157 (157 litres)

W330 (330 litres)

TYPICAL USES

Warming cabinets (also known as blanket warmers, solution warmers, fluid / lotion warmers or heated lotion cabinets) are designed for use in hospitals in Operating Theatres, Accident and Emergency departments (A & E / casualty), and also maternity delivery suites. They are suitable for warming bottles, bags of fluid / saline, and blankets to 37.0°C or above.

CONSTRUCTION

The new LEEC Warming Cabinet Range has fully sealed chambers manufactured from polished stainless steel with rounded corners for easy cleaning. The outer cabinet is manufactured from stainless steel, and has a tough powder coat paint finish. This gives the warming cabinet exceptional corrosion resistance. An inner glass viewing door closes positively onto a silicone gasket and allows a clear view of the chamber contents without disturbing the internal atmosphere. The outer door has a magnetic gasket providing a good seal. A rear access port allows temperature monitoring probes to be inserted safely into the chamber.

HEATING

New profiled resistive wire heating elements and high performance insulation ensure optimum temperature control. All models have gentle fan assisted air circulation. This ensures even temperature distribution throughout the chamber. Fast temperature recovery keeps heat loss to a minimum after door opening.

TEMPERATURE CONTROL

The latest in microprocessor temperature controller technology gives this warming cabinet range excellent temperature stability to within 0.1°C. Fuzzy Logic and Auto Tune features allow the controller to adapt to each chamber size, optimising their performance and accuracy. The controller is simple to use, with target and actual temperatures being displayed in real time on a two-colour digital display.

SAFETY

Over and under temperature alarm thresholds can be programmed into the controller. An independent safety cut out disconnects the heating elements should an over temperature condition occur. The controller can be password protected too, stopping any unauthorised adjustments to the Set Point and alarm thresholds.

WARRANTY

LEEC Warming Cabinets are covered by a 1 year warranty.



SPECIFICATION

MODEL



W100



W157



W330


External (Dimensions H x W x D mm)



582 x 684 x 620



790 x 684 x 620



 1417 x 684 x 620



Internal (Dimensions H x W x D mm)



365 x 550 x 500



573 x 550 x 500



1200 x 550 x 500



Chamber Cacapity (litres)



100



157



330



Shelves included



2



4



6



Power Rating (Watts)



240 (maximum)



280 (maximum)



440 (maximum)



Weight (kg)



54



70



107



Temperature Range



At least 5°C above ambient to +60°C



Temperature Control



Typically ± 0.1°C at 37°C



Temperature Variation



Typically better than ± 0.2°C at 37°C



Temperature Recovery (approx) 2 minutes 3 minutes 4 minutes








Every LEEC Warming Cabinet is made to order to meet the exacting needs of every customer.  LEEC prides itself on being able to deliver exactly what the customer wants and relishes the challenge of producing a Incubator that is tailored to every specific customer need.

Below are the Options which are available on the LEEC Warming Cabinets.  Please be aware that LEEC will endeavour to meet every customer requirement request.

Please do contact us for more information.

Standard Warming Cabinet Options

  • SHW  Spare stainless steel shelf and runners for W100, W157 or W330.
  • WST6  Stand with shelf for W100 or W157 (950mm high).
  • WST9  Stainless steel wall mounting system for W100.
  • WST1  Wheeled platform for Warming Cabinets.
  • WST7 Stacking kit for Warming Cabinets.

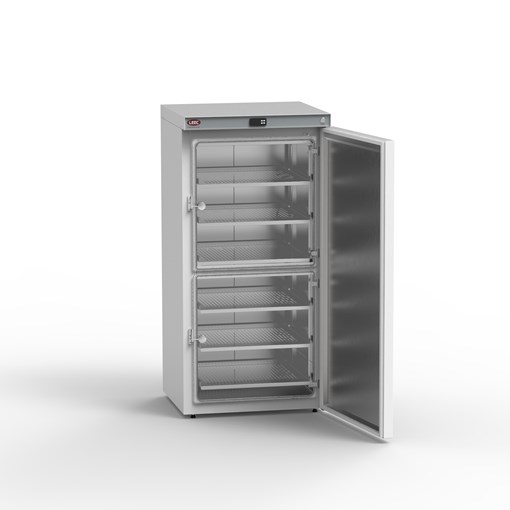

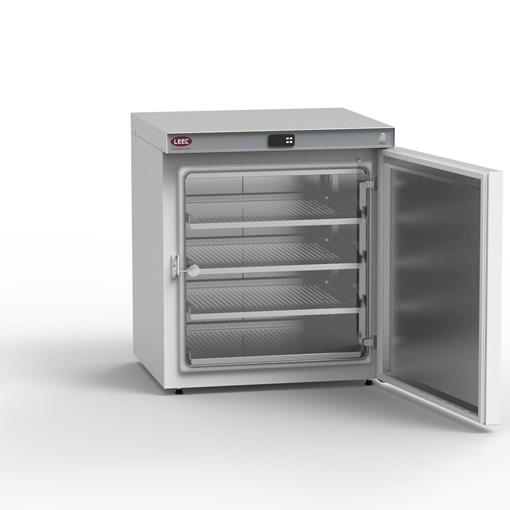

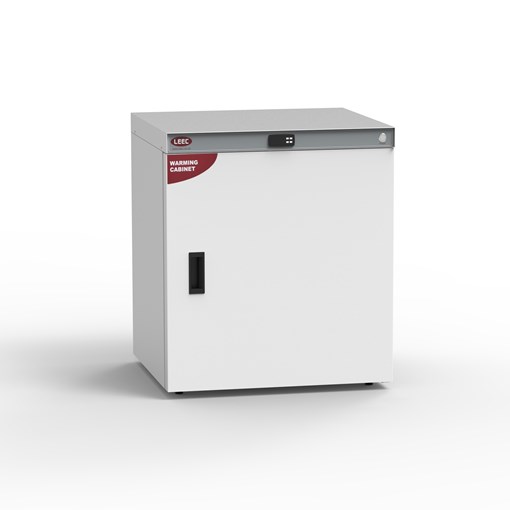

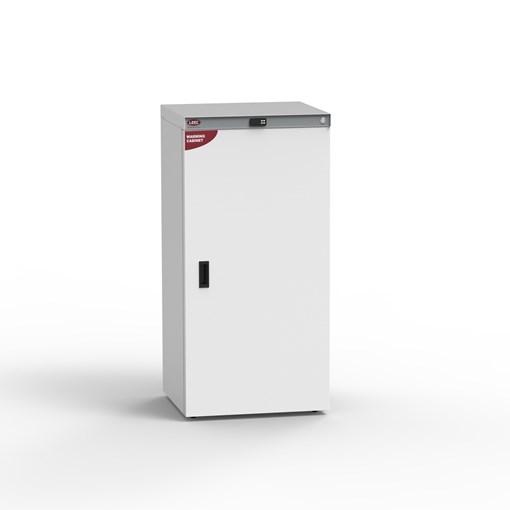

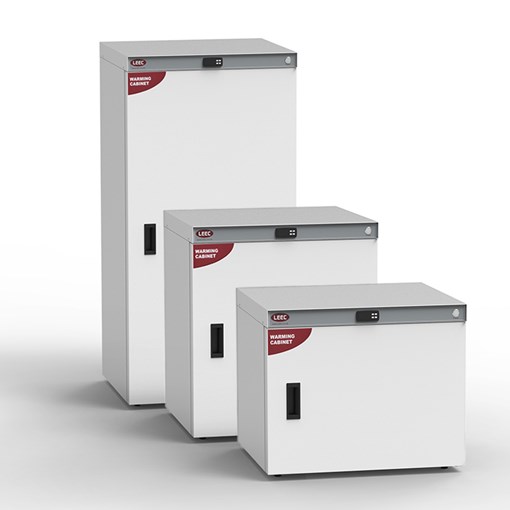

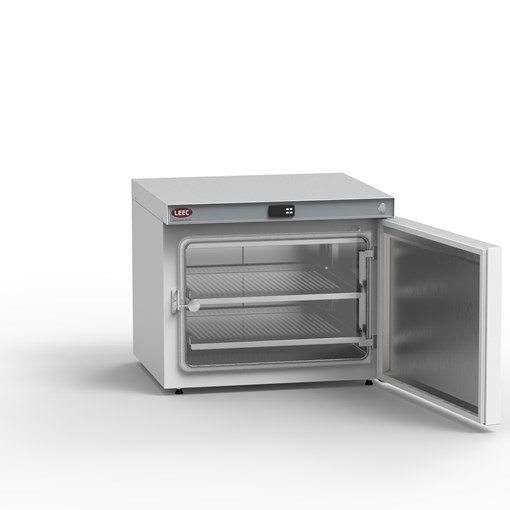

LEEC W100 Warming Cabinet LEEC W100 Warming Cabinet Inside LEEC LEEC Warming Cabinet Range LEEC W157 Warming Cabinet LEEC W157 Warming Cabinet Inside LEEC W330 Warming Cabinet LEEC W330 Warming Cabinet Inside
