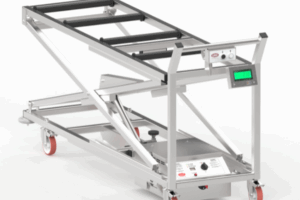

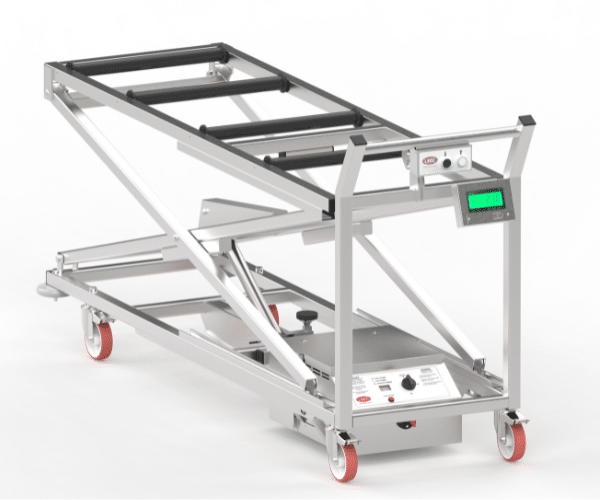

Battery Stacking Trolley
A modern stacking trolley with labour efficient handling techniques, allowing the product to be used by a single operator
A Battery Stacking Trolley is designed to limit manual handling during the transfer of bodies within mortuary environments. This particular trolley is fully compatible with LEEC trays, refrigerated body storage cabinets and body storage racking systems and other tray transfer products.
Each trolley can be used by a single operator and features labour efficiency and manual handling techniques. This model has been specifically designed to physically support the operator as well as improve dignity for the deceased within a mortuary setting.
Make an enquiryDIMENSIONS:
- Width: 580mm framework, 655mm buffer wheels
- Length: Short wheelbase 2060mm, or, Extended wheelbase 2260mm
- Handle Height: 1060mm
- Height Range: Short wheelbase 400-1780mm, or, Extended wheelbase 400-1920mm
TECHNICAL DETAILS:
- Operation: Single person operation
- Material and Finish: Stainless steel 304 polished and grained, or, Mild steel powder coated with durable anti-bacterial biocide paint
- SWL (Safe Working Load): 28 stone (180kg) lifting capacity, or, Extra-Heavy-Duty 40 stone (256kg)
- Castors: 150mm (6″) braked castors (x4)
- Battery: 24v Sealed Lead Acid Battery with in-built Smart Charger

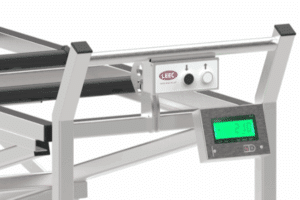

- Weighing attachment: On board loadcell with digital weighing device control and display
- Rollers: Plain full width rollers for Body Storage Trays, or, Raised Coffin Rollers for trays & coffins
- Side handle: Topframe side handle option for improved manoeuvrability in busy or tight turning circle environments

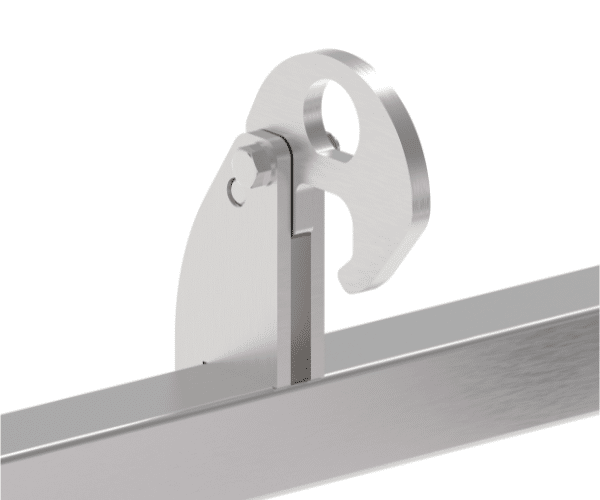

- Tray catch: Semi-Automatic tray catch for LEEC trays, or, options for universal stops/catches for coffins and/or non LEEC tray
