Cooled Incubators
LEEC Precision Cooled incubators offer accurate and reliable temperature controlled storage from 0-60°C with robust construction which is designed to last

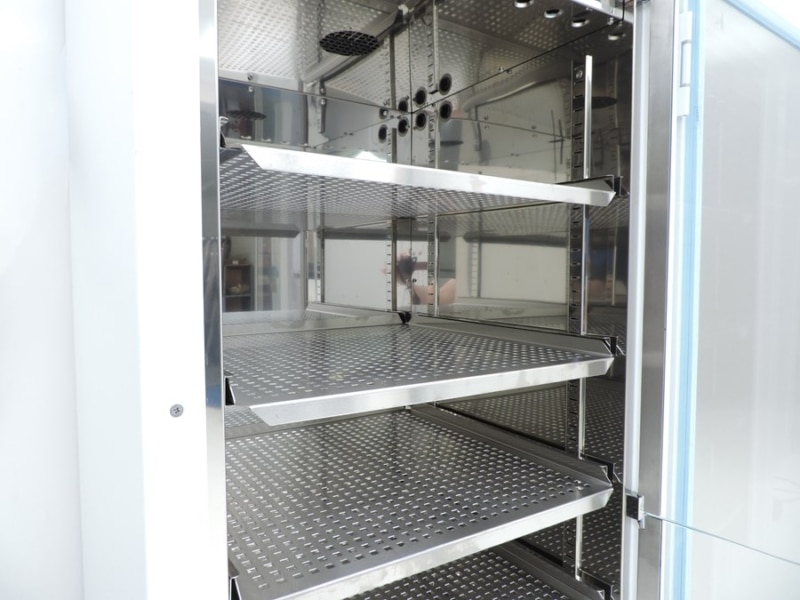

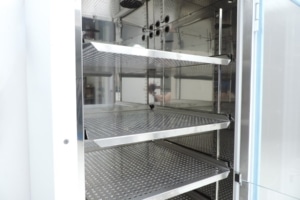

All models are made from rust-resistant steel finished in white polyester powder coat paint with anti-microbial properties. Inner chambers are made from stainless steel and have adjustable perforated stainless-steel shelves, and inner glass doors. The chamber fan (two in the P33C) circulates the hot and cold air around the chamber via a full width air duct. Two 12mm access ports are provided for inserting temperature monitoring probes / power cables into the chamber. Low wattage heating elements are bonded to the outer surface of the chamber and encased in polyurethane foam insulation, to minimise thermal losses and keep the temperature stable.

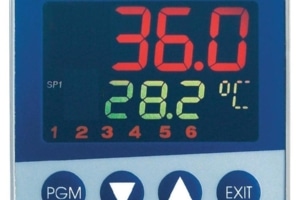

A digital temperature controller precisely controls the heating and cooling systems. The unique LEEC cooling system controls refrigerant flow to the evaporator, thereby eliminating the possibility of unwanted over cooling. Heating is pulsed by the controller only when needed – a very energy-efficient method of achieving stable temperature which eliminates the need for auto defrost (except when operating at the lowest chamber operating temperatures).
A digital over and under temperature alarm / cut out system provides essential protection for your products inside the chamber, and visual warning lights and audible alarms give clear indications if the chamber temperature goes out of limits.
An option for dual temperature cycling (DTC) allows the chamber temperature to automatically cycle between two pre-programmed temperatures at programmable times.
Make an enquiryP2C
- Temperature Range: 0°C to +60°C*
- Temperature Control: Typically ± 0.2°C
- Temperature Variation: Typically ± 0.5°C
- Refrigerant: CFC Free
- Chamber Material: Stainless Steel
- Exterior Material: White painted steel
- Castors: Optional (ST1 wheeled platform)
- Fan Assisted: Yes (single)
- Inner Glass Door: Yes (1)
- Access Port: Two 12mm ports
- Chamber Insulation: Polyurethane foam
- Chamber Capacity: 150 L
- External Dimensions:
(H x W x D mm): 1075 x 635 x 660 - Internal Dimensions
(H x W x D mm): 590 x 510 x 490 - Shelves Included: 4
- Weight: 100 Kg
- Power Rating: 800 Watts
P3C
- Temperature Range: 0°C to +60°C
- Temperature Control: Typically ± 0.2°C
- Temperature Variation: Typically ± 0.5°C
- Refrigerant: CFC Free
- Chamber Material: Stainless Steel
- Exterior Material: White painted steel
- Castors: Optional (ST1 wheeled platform)
- Fan Assisted: Yes (single)
- Inner Glass Door: Yes (2)
- Access Port: Two 12mm ports
- Chamber Insulation: Polyurethane foam
- Chamber Capacity: 320 L
- External Dimensions
(H x W x D mm): 1745 x 635 x 660 - Internal Dimensions
(H x W x D mm): 1275 x 510 x 490 - Shelves Included: 6
- Weight: 145 Kg
- Power Rating: 850 Watts
P33C
- Temperature Range: 0°C to +60°C
- Temperature Control: Typically ± 0.2°C
- Temperature Variation: Typically ± 0.5°C
- Refrigerant: CFC Free
- Chamber Material: Stainless Steel
- Exterior Material: White painted steel
- Castors: Yes (lockable)
- Fan Assisted: Yes (twin)
- Inner Glass Door: Yes (4)
- Access Port: Two 12mm ports
- Chamber Insulation: Polyurethane foam
- Chamber Capacity: 730 L
- External Dimensions:
(H x W x D mm): 1745 x 1270 x 660 - Internal Dimensions
(H x W x D mm): 1275 x 1140 x 490 - Shelves Included: 6
- Weight: 250 Kg
- Power Rating: 1050 Watts
