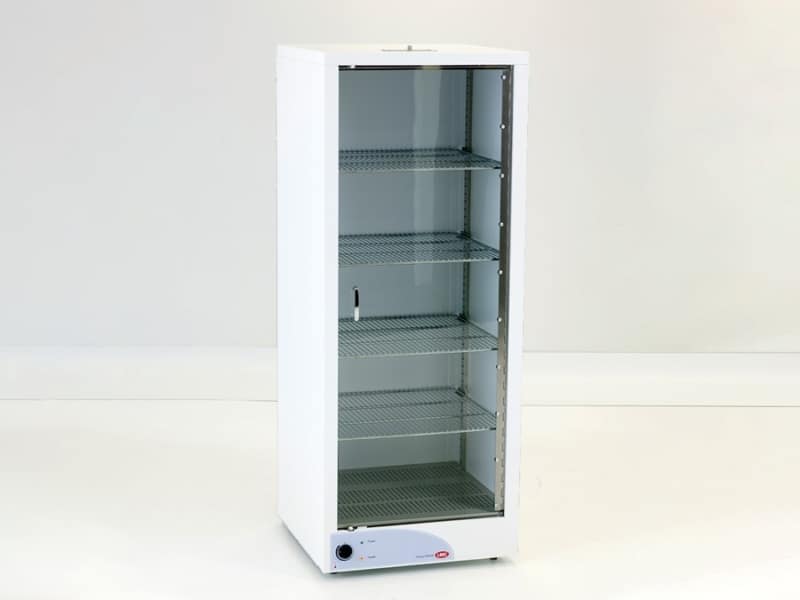

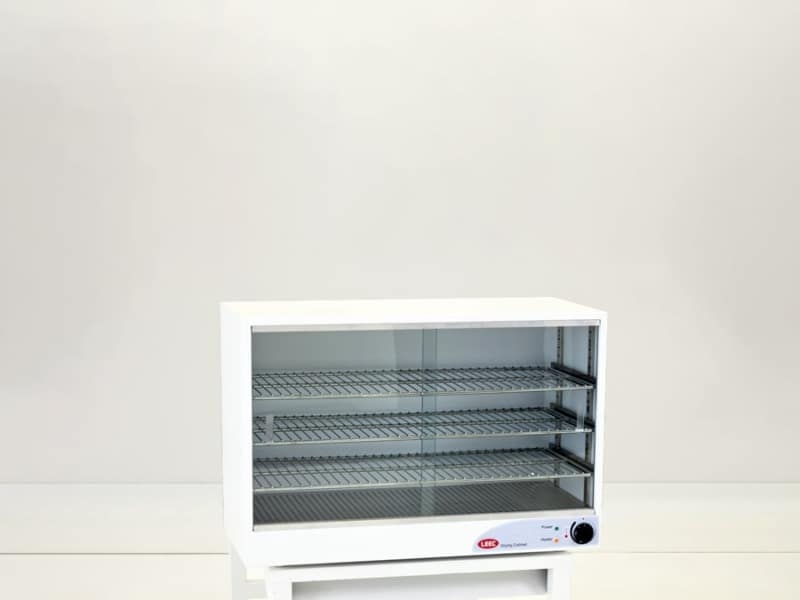

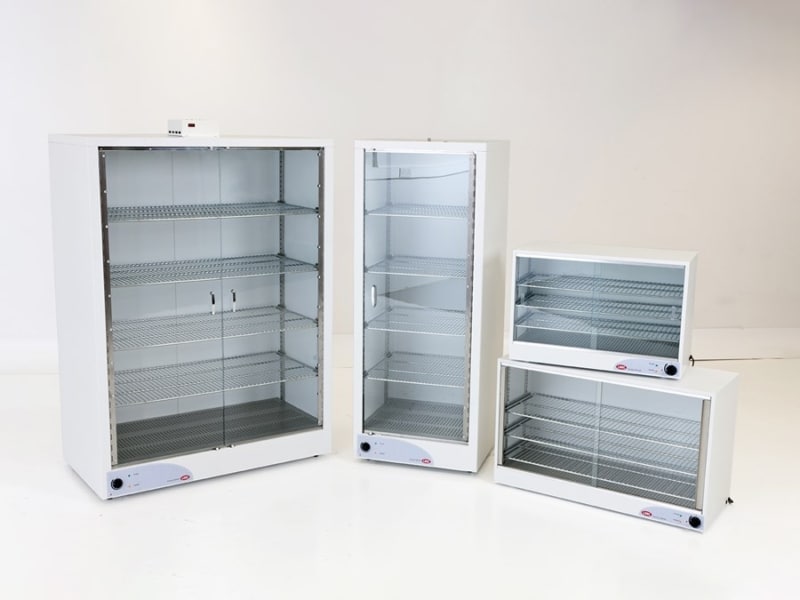

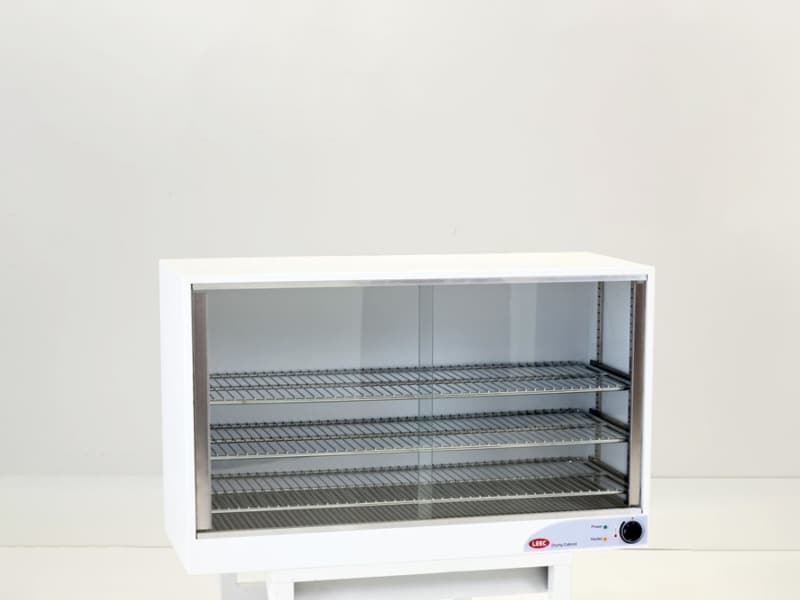

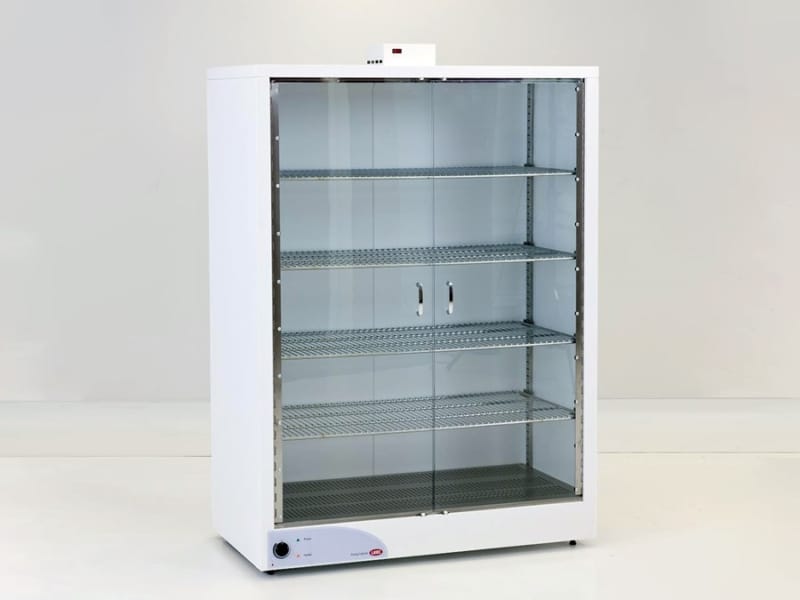

Drying Cabinets
An adjustable cabinet manufactured to professional standard suitable for various settings

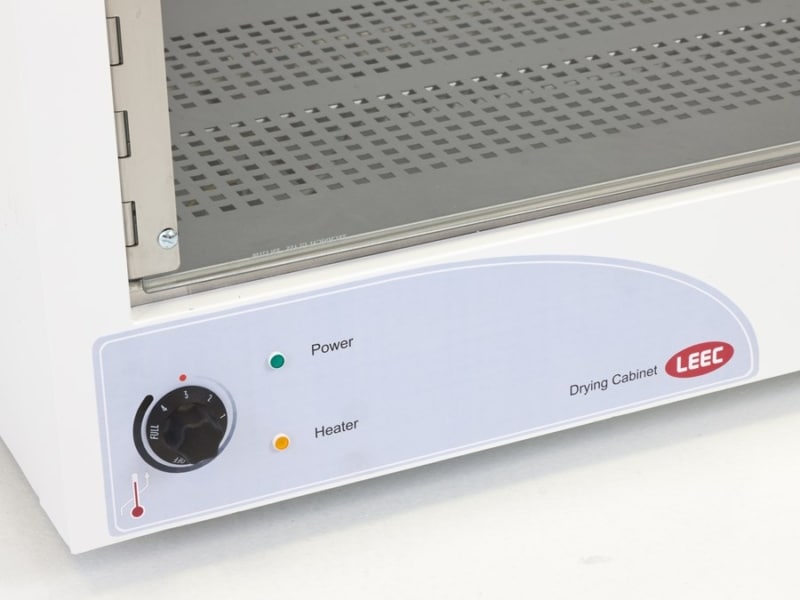

LEEC drying cabinets are made from rust-resistant steel which is finished in white polyester powder coat paint as standard. They have heatproof toughened glass doors to British Standards. The shelves are removable and can be adjusted in height every 25mm. Heating elements are waterproof and are located underneath a perforated floor, which is finished in unpainted, polished stainless steel. Temperature control is by Simmerstat giving any desired temperature up to a maximum of 50°C above ambient temperature.
Drying at a lower temperature than a laboratory oven, these units can be used in pharmaceutical/cosmetic manufacturing, the food testing industry, automotive and aerospace industries, and electronics (PCB) manufacturing, as well as science labs in schools, colleges and universities. They are also ideal for drying theatrical wigs and costumes and are popular with theatrical production companies, film/TV show producers. They are often referred to as “wig dryers” or a “wig dryer” and they can hold several head blocks.
Make an enquiryLEEC SS
- Litres (L): 113
- Element Power (Watts): 500
- Fan(s): n/a
- Ambient Temperature: 20ºC
- Consumption Per 24 Hours
(at 70ºC setpoint): 12.000kWh
LEEC LS
- Litres (L): 226
- Element Power (Watts): 750
- Fan(s): n/a
- Ambient Temperature: 20ºC
- Consumption Per 24 Hours
(at 70ºC setpoint): 18.000kWh
LEEC FC2
- Litres (L): 450
- Element Power (Watts): 1500
- Fan(s): 1
- Ambient Temperature: 20ºC
- Consumption Per 24 Hours
(at 70ºC setpoint): 36.000kWh
LEEC FC1
- Litres (L): 1000
- Element Power (Watts): 2500
- Fan(s): 1
- Ambient Temperature: 20ºC
- Consumption Per 24 Hours
(at 70ºC setpoint): 60.000kWh
| F1 | FC1 | FX1 | FCX1 | |
| Fan System | None (Natural Convection) | Circulating | Extract | Circulating/Extract |
| External Dimensions (H x W x D mm) |
1626 x 1168 x 610 | 1726 x 1168 x 610 | 1826 x 1168 x 610 | 1800 x 1168 x 610 |
| Internal Dimensions (H x W x D mm) |
1430 x 1165 x 590 | 1430 x 1165 x 590 | 1430 x 1165 x 590 | 1430 x 1165 x 590 |
| Capacity | 1000L | 1000L | 1000L | 1000L |
| Weight | 125kg | 125kg | 125kg | 125kg |
| Shelves | 4 | 4 | 4 | 4 |
| Power Rating | 2500 watts | 2500 watts | 2500 watts | 2500 watts |
| F2 | FC2 | FX2 | |
| Fan System | None (Natural Convection) | Circulating | Extract |
| External Dimensions (H x W x D mm) |
1626 x 635 x 610 | 1726 x 635 x 610 | 1826 x 635 x 610 |
| Internal Dimensions (H x W x D mm) |
1430 x 630 x 590 | 1430 x 630 x 590 | 1430 x 630 x 590 |
| Capacity | 540L | 540L | 540L |
| Weight | 75kg | 75kg | 75kg |
| Shelves | 4 | 4 | 4 |
| Power Rating | 1500 watts | 1500 watts | 1500 watts |
| B1 | BC1 | BX1 | |
| Fan System | None (Natural Convection) | Circulating | Extract |
| External Dimensions (H x W x D mm) |
864 x 1168 x 610 | 964 x 1168 x 610 | 1064 x 1168 x 610 |
| Internal Dimensions (H x W x D mm) |
685 x 1165 x 610 | 685 x 1165 x 610 | 685 x 1165 x 610 |
| Capacity | 480L | 480L | 480L |
| Weight | 63kg | 63kg | 63kg |
| Shelves | 1 | 1 | 1 |
| Power Rating | 1500 watts | 1500 watts | 1500 watts |
| B2 | BC2 | BX2 | |
| Fan System | None (Natural Convection) | Circulating | Extract |
| External Dimensions (H x W x D mm) |
864 x 635 x 610 | 964 x 635 x 610 | 1064 x 635 x 610 |
| Internal Dimensions (H x W x D mm) |
685 x 630 x 590 | 685 x 630 x 590 | 685 x 630 x 590 |
| Capacity | 255L | 255L | 255L |
| Weight | 45kg | 45kg | 45kg |
| Shelves | 1 | 1 | 1 |
| Power Rating | 1000 watts | 1000 watts | 1000 watts |
| LS | SS | |
| Fan System | None (Natural Convection) | None (Natural Convection) |
| External Dimensions (H x W x D mm) |
630 x 1000 x 410 | 530 x 760 x 360 |
| Internal Dimensions (H x W x D mm) |
530 x 990 x 390 | 430 x 750 x 340 |
| Capacity | 226L | 113L |
| Weight | 36kg | 22kg |
| Shelves | 3 | 3 |
| Power Rating | 750 watts | 500 watts |
