LEEC Culture Safe TOUCH CO2 Incubators
Modern, high functioning , electro-polished 190-litre chamber CO2 incubators

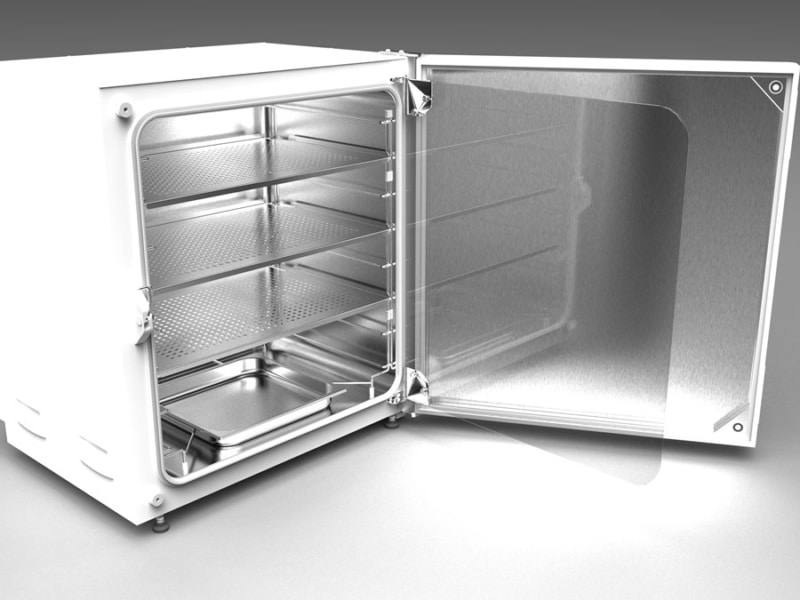

LEEC Culture Safe Touch 190 and Touch 190S CO2 incubators have a fully sealed, one-piece, deep drawn, 190-litre chamber, which is manufactured from 304 grade stainless steel. The outer cabinet is manufactured from stainless steel and has an anti-microbial polyester powder coated paint finish giving these CO2 incubators exceptional corrosion and contamination resistance.

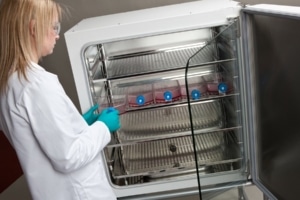

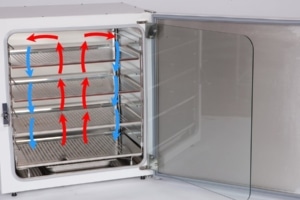

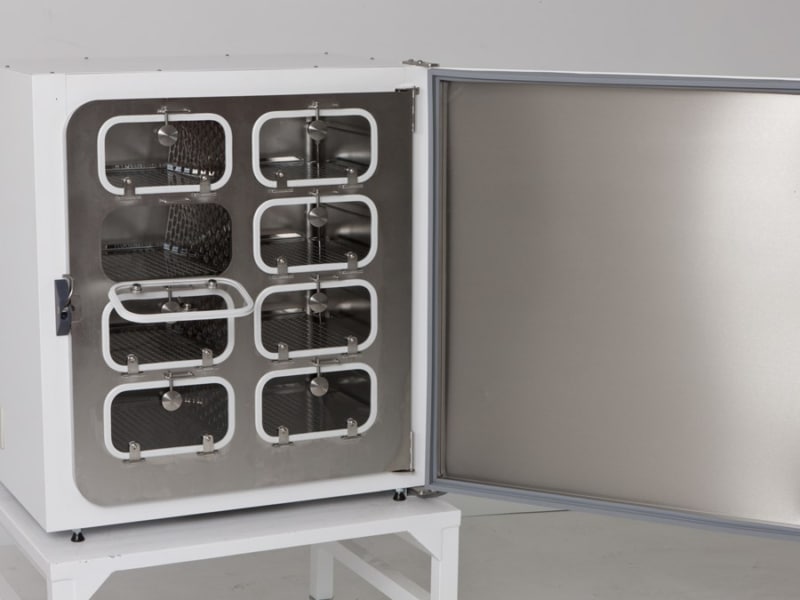

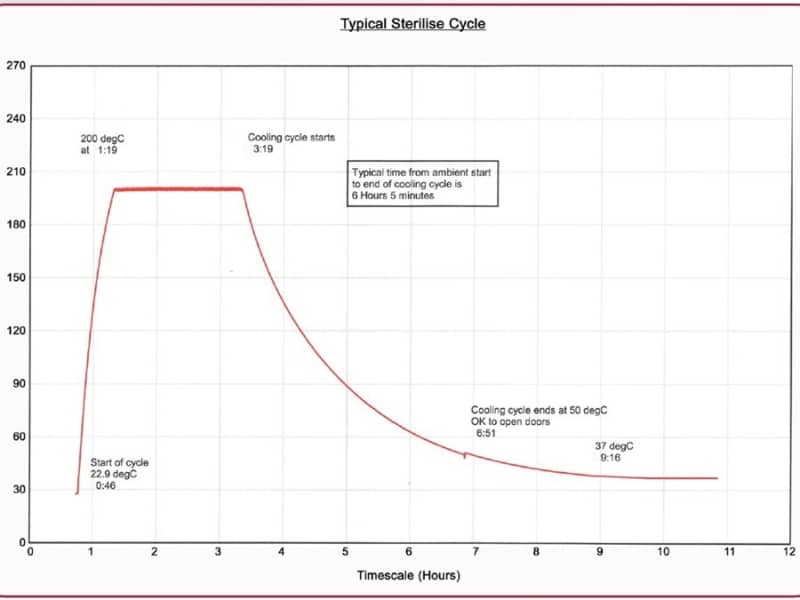

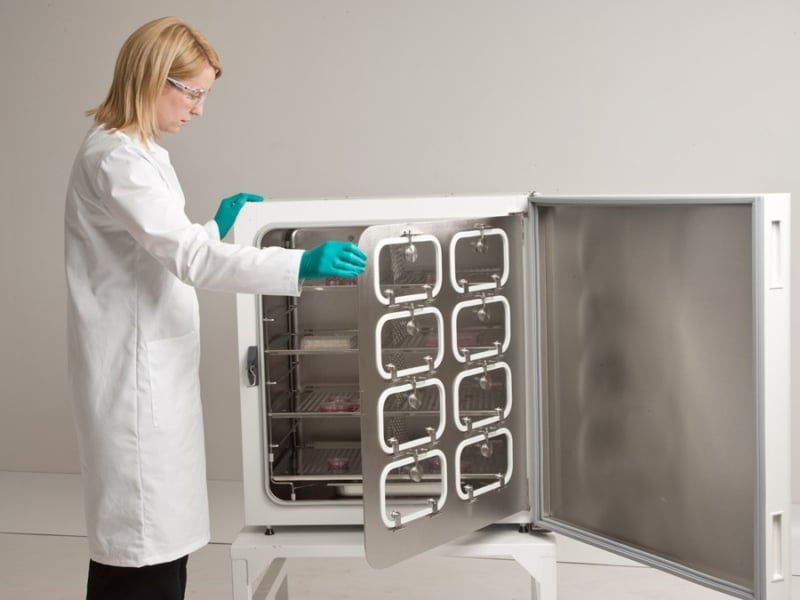

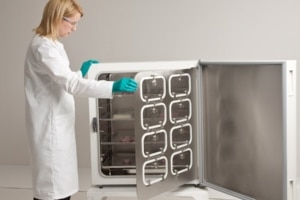

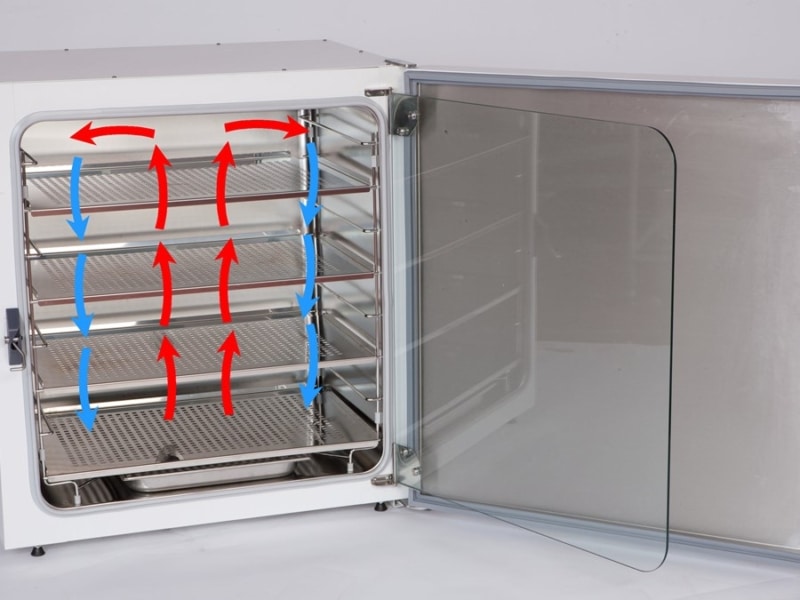

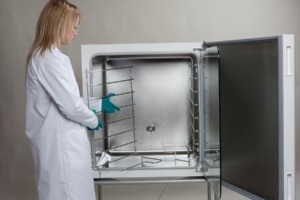

LEEC Culture Safe Touch CO2 incubators have 6-sided, fan-less heating systems with high-performance thermal insulation, minimising the risk of contamination and reducing running costs. Each incubator has an inner glass viewing door which gives a clear view of the chamber without disturbing the internal atmosphere. The outer door provides a firm seal with a magnetic gasket, which locks during the 200°C sterilisation cycle (Touch 190S only). An infrared CO2 sensor gives accurate readings of the internal atmosphere regardless of the humidity level.
LEEC also offers a low oxygen multi-gas incubator with CO2 and O2 control as a factory-fitted option on the Touch 190S and mini Culture Safe Touch 50S CO2 incubators.
Download the latest datasheet for more information.
Make an enquiryT190 / T190S
- Temperature Range: 5°C above ambient to +60°C
- Temperature Control: Typically ± 0.1°C
- Temperature Stability: ± 0.1°C @ 37°C
- Temperature Uniformity: ± 0.25°C @ 37°C
- CO2 Range: 0% to 20%
- CO2 Control: ± 0.1%
- CO2 Stability: ± 0.2%
- CO2 Uniformity: ± 0.2%
- CO2 Sensor: Infrared (externally mounted)
- Min CO2 inlet pressure: 5 psi / 0.3 bar
- Max CO2 inlet pressure: 10 psi / 0.7 bar
- Power Requirements: 240V AC, 50/60 Hz, 380W nominal (T190S 1800W sterilising), (120V versions available)
- Humidity (@37ºC / 5% CO2): up to 95% RH

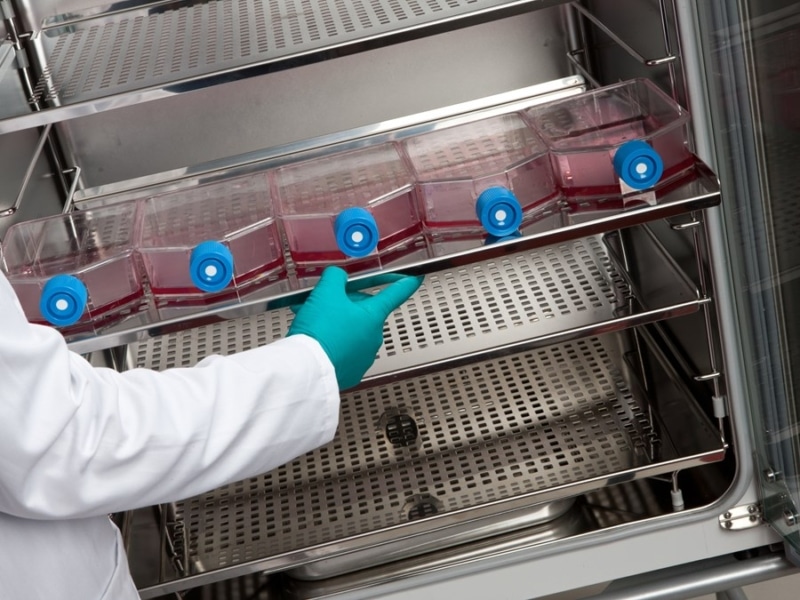

- Shelves included: 4 (stainless steel)
- Access port: 1 (24mm diameter)
- Weight: 94.5 KG (T190), 104 KG (T190S)
T190S with OXY 1-19
- Temperature Range: 5°C above ambient to +60°C
- Temperature Control: Typically ± 0.1°C
- Temperature Stability: ± 0.1°C @ 37°C
- Temperature Uniformity: ± 0.25°C @ 37°C
- CO2 Range: 1% to 19%
- CO2 Control: ± 0.1%
- CO2 Stability: ± 0.2%
- CO2 Uniformity: ± 0.2%
- CO2 Sensor: Infrared (externally mounted)
- O2 Range: 1% to 19%
- O2 Control: ± 0.1%
- O2 Stability: ± 0.25%
- O2 Uniformity: ± 0.25%
- O2 Sensor: Electrochemical
- Min CO2 inlet pressure: 5 psi / 0.3 bar
- Max CO2 inlet pressure: 10 psi / 0.7 bar
- Min N2 Inlet pressure: 5 psi / 0.3 bar
- Max N2 inlet pressure: 10 psi / 0.7 bar
- Power Requirements: 240V AC, 50/60 Hz, 380W nominal (1800W sterilising), (120V versions available)
- Humidity (@37ºC / 5% CO2): up to 95% RH
- Shelves included: 4 (stainless steel)
- Access port: 1 (24mm diameter)
- Weight: 105kg (T190S with OXY1-19)
