LEEC mini Culture Safe TOUCH CO2 Incubators
A mini CO2 stainless steel incubator with exceptional contamination resistance, utilised with a infrared CO2 sensor and fan-less heating system

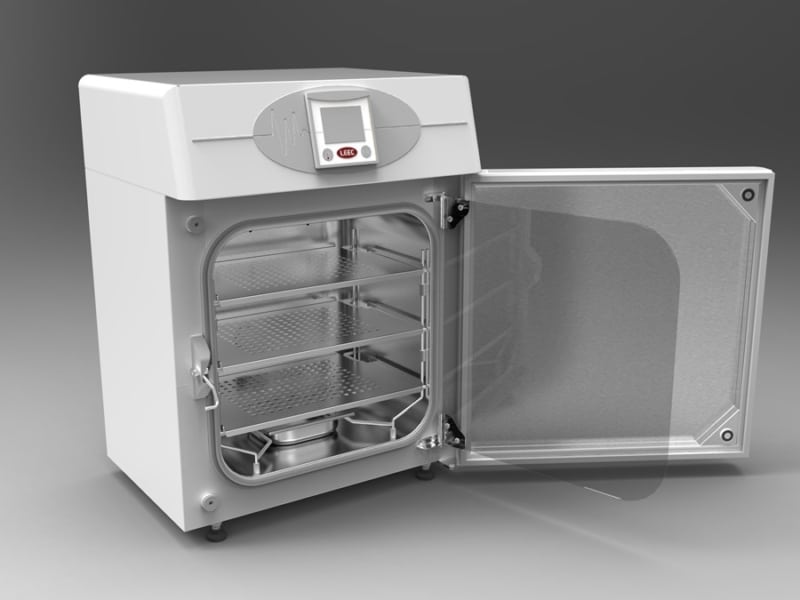

LEEC mini Culture Safe Touch CO2 incubators have a fully sealed, one-piece, deep drawn 50 litre chamber, which is manufactured from 304 grade stainless steel. The outer cabinets are manufactured from stainless steel and have an anti-bacterial polyester powder coat paint finish, giving these CO2 incubators exceptional corrosion and contamination resistance.
All LEEC mini Culture Safe CO2 incubators have 6-sided, fan-less heating systems, with high-performance thermal insulation, which minimises the risk of contamination and lowers running costs. Each incubator has an inner glass viewing door giving a clear view into the chamber without disturbing the internal atmosphere. The outer door provides a firm seal with a magnetic gasket, which locks during the sterilisation cycle (T50S only). LEEC utilise an infrared CO2 sensor, giving a more accurate reading of the internal atmosphere, irrespective of the humidity level.
LEEC also offers a low oxygen/multi-gas incubator with CO2 and Oxygen Control as a factory-fitted option (LEEC mini Culture Safe Touch 50S CO2 Incubator only). Please see the TECHNICAL tab (above) for more details.
Make an enquiryT50 / T50S
- Temperature Range: 5°C above ambient to +60°C
- Temperature Control: 0.1°C
- Temperature Stability: ± 0.1°C @ 37°C
- Temperature Uniformity: ± 0.25°C @ 37°C
- CO2 Range: 0% – 20%
- CO2 Control: ± 0.1%
- CO2 Stability: ± 0.2%
- CO2 Uniformity: ± 0.2%
- CO2 Sensor: Infrared (externally mounted)
- Min CO2 inlet pressure: 5 psi / 0.3 bar
- Max CO2 inlet pressure: 10 psi / 0.7 bar
- Power Requirements: 240V AC, 50/60 Hz, 350W nominal (T50S 950W sterilising), (120V versions available)
- Humidity (@37ºC / 5% CO2): up to 95% RH
- Shelves included: 3 (stainless steel)
- Access port: 1 (24mm diameter)
- Weight: 38 KG (T50), 40 KG (T50S)
T50S with OXY 1-19
- Temperature Range: 5°C above ambient to +60°C
- Temperature Control: 0.1°C
- Temperature Stability: ± 0.1°C @ 37°C
- Temperature Uniformity: ± 0.25°C @ 37°C
- CO2 Range: 0% – 20%
- CO2 Control: ± 0.1%
- CO2 Stability: ± 0.2%
- CO2 Uniformity: ± 0.2%
- CO2 Sensor: Infrared (externally mounted)
- O2 Range: 1% to 19%
- O2 Control: ± 0.1%
- O2 Stability: ± 0.25%
- O2 Uniformity: ± 0.25%
- O2 Sensor: Electrochemical
- Min CO2 inlet pressure: 5 psi / 0.3 bar
- Max CO2 inlet pressure: 10 psi / 0.7 bar
- Min N2 Inlet pressure: 5 psi / 0.3 bar
- Max N2 inlet pressure: 10 psi / 0.7 bar
- Power Requirements: 240V AC, 50/60 Hz, 350W nominal (950W sterilising), (120V versions available)
- Humidity (@37ºC / 5% CO2): up to 95% RH
- Shelves included: 3 (stainless steel)
- Access port: 1 (24mm diameter)
- Weight: 41 KG (T50S with OXY 1-19)
Options:
- 1-19% Oxygen Control (factory fitted – Touch 50S only)

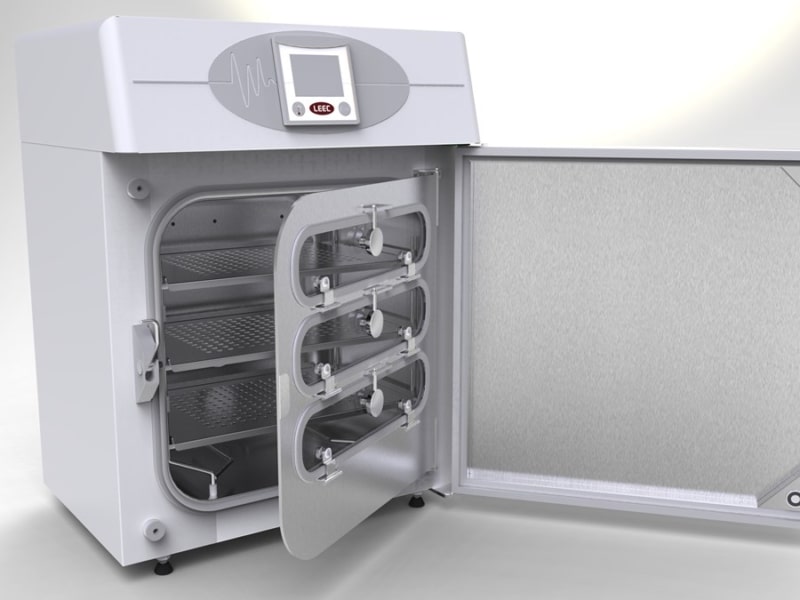

- 3 inner doors option (multi door)
- 6 inner doors option (multi door)
- %RH display
- Ethernet Communication Port
- 4-20mA retransmit
