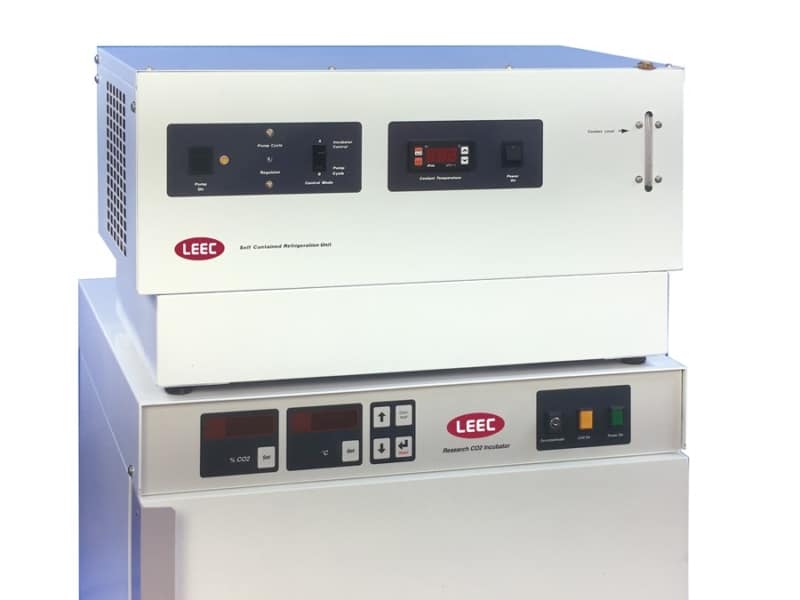

Self Contained Recirculating Cooler Units

An accurate cooling unit with extreme temperature sensitivity to minimise condensation and ice problems, pairing perfectly with LEEC incubators

LEEC C3 (1/4 h.p) and C4 (1/3 h.p) Self Contained Recirculating Cooler units have been designed specifically for use with LEEC incubators but they can also be used as an indirect cooling source where any closed circuit e.g. a sealed tank or coil is available. Please note, these units can always be added at a later date to any LEEC incubator that is fitted with a cooling coil to convert it into a cooled incubator, regardless of age:

LEEC Precision Incubators: P2 / P3 / P33.

LEEC Salts Type Humidity Cabinets: SFC2 / SFC3

The indirect system of cooling incubators is the most accurate method available because the coolant that is pumped around the incubator cooling coil is only slightly colder than the required chamber temperature. This small difference in temperature means that the chamber temperature control is extremely sensitive, and that condensation and ice problems are minimised.

Electrical supply required 240V AC, 50 Hz. Other voltages are available. Whilst the 1/4 h.p. capacity unit will be found adequate for operating 150-litre models down to +10°C, a unit of greater capacity may be required if heat dissipating apparatus or lights are used in the incubator.

Download the latest technical datasheet for more information.
