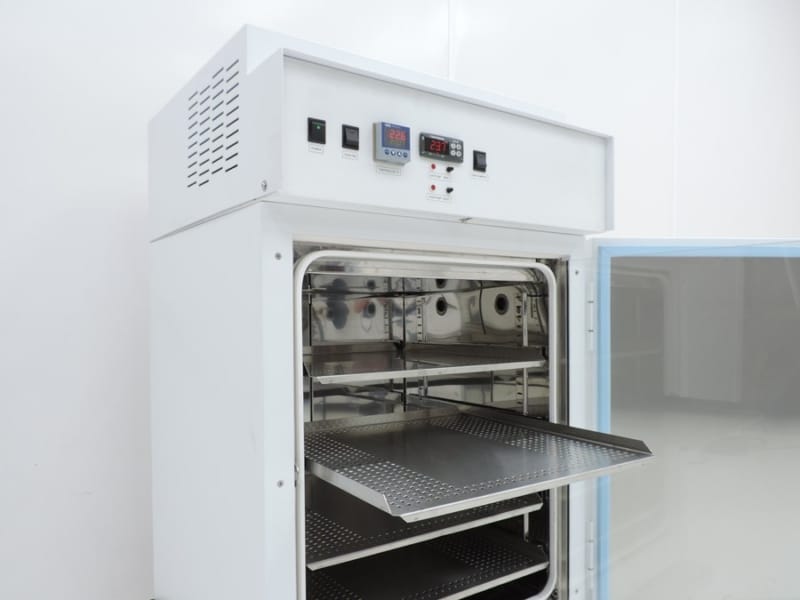

Ultrasonic Humidity Cabinets
A durable stainless-steel cabinet with efficient thermal stability and adjustable shelves, suitable for high humidity levels
LEEC’s humidity cabinets have stainless steel chambers and adjustable stainless-steel shelves. SF chambers are sealed and watertight making them suitable for humidity levels up to 98%. CFC-free Polyurethane insulation provides very efficient thermal stability in all models. Two 12mm cable access ports are fitted as standard for safely inserting monitoring probes into the chamber for temperature / humidity monitoring.
Control of both the heating and cooling functions are performed with great accuracy, achieving typical temperature stability of ±0.5°C. The microprocessor-based digital temperature controller allows temperature performance to be easily verified with a digital over-temperature safety cut out fitted to all models.

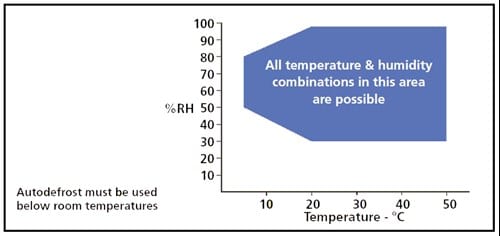

All /RH models are fitted with an ultrasonic fine mist humidity generator located at the bottom of the chamber. The microprocessor humidity controller accurately monitors and adjusts the chamber humidity level. All /RH models can de-humidify as well as increase humidity. Please note that not all combinations of humidity and temperature are possible. Temperature and humidity performance vary according to the combination selected.
Download the latest technical datasheet for more information.
Make an enquirySFC2C/RH
- Temperature Range: +5°C to +50°C
- Temperature Control: ±0.5°C at 20°C
- Temperature Variation: ±0.5°C at 20°C
- Humidity Range: 30% to 98%RH
- Humidity Variation: ±5% at 20°C
- External Dimensions
(H x W x D mm): 1075 x 635 x 660 - Internal Dimensions
(H x W x D mm): 590 x510 x 490 - Chamber Capacity: 150L
- Shelves Included: 4
- Weight: 100kg
- Power Rating: 800 watts
- Insulation: Expanded polyurethane foam
- Access Port: Yes (12mm diameter)
- Castors: Optional ST1 wheeled platform available
- Exterior Material: White polyester powder-coated steel
- Interior Material: Mirror finish stainless steel
- Refrigerant: CFC free
SFC3C/RH
- Temperature Range: +5°C to +50°C
- Temperature Control: ±0.5°C at 20°C
- Temperature Variation: ±0.5°C at 20°C
- Humidity Range: 30% to 98%RH
- Humidity Variation: ±5% at 20°C
- External Dimensions
(H x W x D mm): 1745 x 635 x 660 - Internal Dimensions
(H x W x D mm): 1275 x 510 x 490 - Chamber Capacity: 1275 x 510 x 490
- Shelves Included: 6
- Weight: 145kg
- Power Rating: 850 watts
- Insulation: Expanded polyurethane foam
- Access Port: Yes (12mm diameter)
- Castors: Optional ST1 wheeled platform available
- Exterior Material: White polyester powder-coated steel
- Interior Material: Mirror finish stainless steel
- Refrigerant: CFC free
