Features:

  • Precise temperature control
  • Precise humidity control
  • Fan assisted
  • Stainless steel chamber and shelves
  • Models available: SFC2C/RH, SFC3C/RH

LEEC’s Humidity cabinets all have stainless steel chambers and adjustable stainless-steel shelves. SF chambers are sealed and watertight making them suitable for humidity’s up to 98%. SF models can also have an optional heated outer door to demist the inner glass door(s). CFC-free Polyurethane insulation provides very efficient thermal stability in all models with a 12mm access port is provided as standard.

Monitoring and controlling both heating and cooling functions are performed with great accuracy, achieving typical temperature stability of ±0.5°C. The microprocessor-based digital temperature controller allows temperature performance to be easily verified with a digital over-temperature safety cut fitted to all models.

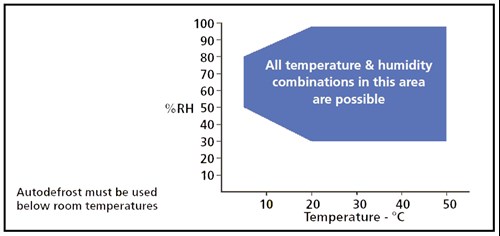

All RH models are fitted with an ultrasonic fine mist humidity generator located at the bottom of the chamber. The microprocessor humidity controller accurately monitors and adjusts the chamber humidity level. All RH models can dehumidify as well as increase humidity, but it should be noted that not all combinations of humidity and temperature are possible: temperature and humidity performance vary according to the combination selected.

  SFC2C/RH SFC3C/RH
Temperature Range* +5°C to +50°C +5°C to +50°C
Temperature Control ±0.5°C at 20°C ±0.5°C at 20°C
Temperature Variation ±0.5°C at 20°C ±0.5°C at 20°C
Humidity Range 30% to 98%RH 30% to 98%RH
Humidity Variation ±5% at 20°C ±5% at 20°C
External Dimensions
(H x W x D mm)
1075 x 635 x 660 1745 x 635 x 660
Internal Dimensions
(H x W x D mm)
590 x510 x 490 1275 x 510 x 490
Chamber Capacity 150L 320L
Shelves Included 4 6
Weight 100kg 145kg
Power Rating 800 watts 850 watts
Insulation Expanded polyurethane foam Expanded polyurethane foam
Access Port Yes (12mm diameter) Yes (12mm diameter)
Castors Optional ST1 wheeled platform available Optional ST1 wheeled platform available
Exterior Material White polyester powder-coated steel White polyester powder-coated steel
Interior Material Mirror finish stainless steel Mirror finish stainless steel
Refrigerant CFC free CFC free

* Temperature specification at 20°C ambient

LEEC Ultrasonic Humidity Cabinets are made to order. LEEC prides itself on being able to deliver exactly what the customer wants and can produce a Humidity Cabinet that is tailored to meet a specific need. Below are the options which are available on the LEEC Ultrasonic Humidity Cabinet range.

Options
HD
Heated outer door
L23
Spare stainless steel shelf and runners
DDR
Digital Data Recorder for temperature and humidity
RTX
4-20mA analogue output option
MAP1
Temperature or Humidity mapping, NAMAS traceable
MAP2
Temperature and Humidity mapping, NAMAS traceable
