LEEC Free Standing Racking

Class Leading Technology and Design

Features

Fixed Height or Height Adjustable Tiers
Bespoke Designs for each location
Available in a variety of widths
Compatible with Trays and Coffins
Stub or Full width coffin rollers
Single, Double and Multiple Bays
Wide Range of Fixing Options
Stainless Steel Construction
Easy Wipe Clean
Designed to operate in -30° Temperatures

Introduction
Technical
Options/Accessories
Additional Images

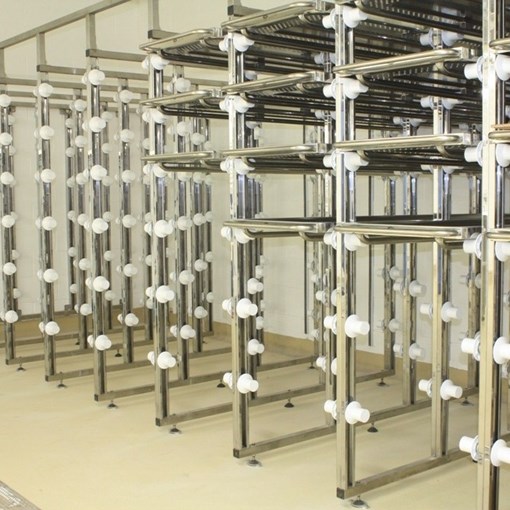

Fixed Height Racking

Stainless steel box section construction racking is available in a variety of widths and heights to suit each individual customer requirements. Compatible with all sizes of LEEC body storage trays and includes maintenance free, 50mm diameter self bearing acetyl stub roller system, allowing clear and full access to the racking for maintenance and cleaning. With the stub roller system the rollers screw into riv nuts in the box section uprights, due to this type of fixing the tiers are set at a fixed height and can not be adjusted. The tray spacing varies from 300mm upawards dependent on the capacity (2, 3, 4, or 5 tier storage). Full width coffin rollers with integral bearings and easy spring loaded pop-in shafts that insert straight into holes in the box section uprights are also available on request.

Adjustable Height Racking

Based on the Body Storage Cabinet height adjustable racking system the height adjustable racking combines the standard free standing racking with the flexibility of altering tier heights at any time. Fabricated from stainless steel box section and folded channel to allow the rollers to be set at any height. Compatible with all sizes of LEEC body storage trays and available in a variety of widths and heights to suit each individual customer requirements. Includes maintenance free, 50mm diameter self bearing acetyl stub roller system, allowing clear and full access to the racking for maintenance and cleaning. Tray spacing varies from 300mm upawards dependent on the capacity (2, 3, 4, or 5 tier storage). Full width coffin rollers with integral bearings and easy spring loaded pop-in shafts with brackets to allow for height adjustment in the channels are also available on request.

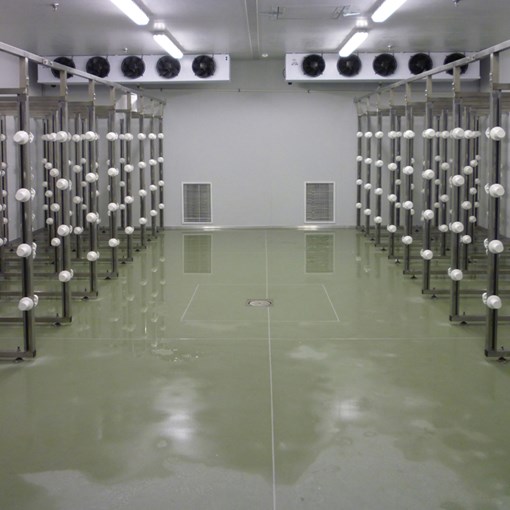

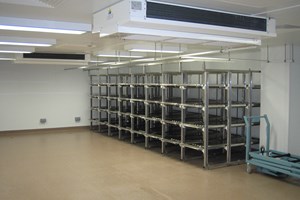

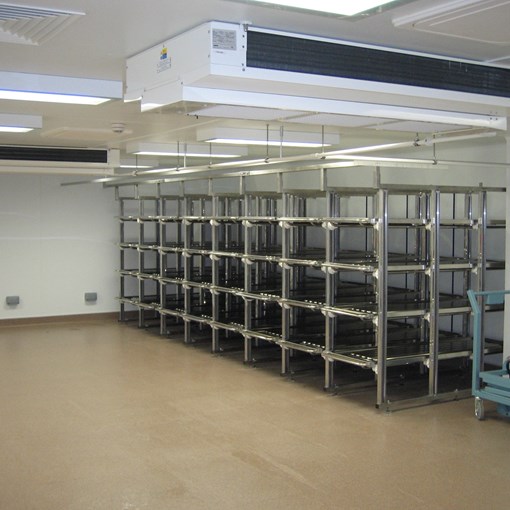

Multiple Bay Coldroom Solutions

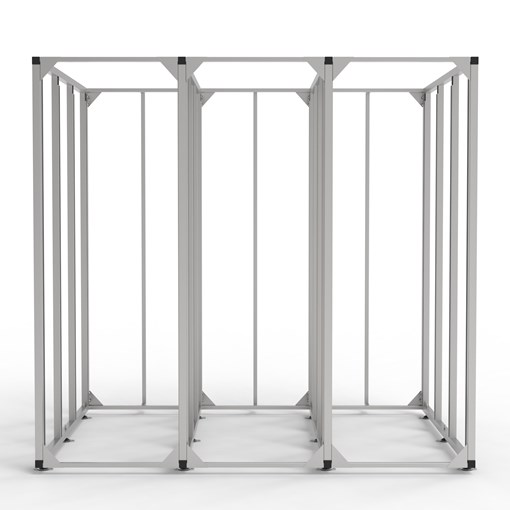

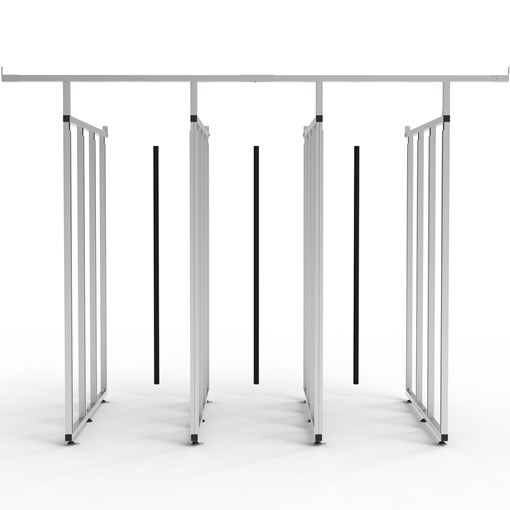

Both Fixed Height and Height Adjustable Racking is available in a multiple bay system not just single and double bay widths.

With site measurements the racking can be designed to fill a coldroom or storage area and with the easy assembly this provides an efficient solution and maximises body storage capacity.

Technical Drawings are available on request to each individual customer requirements.

Site dimensions are often required if multiple bay racking configurations are needed.

All LEEC free standing racking is made to order to meet the exacting needs of every customer. LEEC prides itself on being able to deliver exactly what the customer wants and relishes the challenge of producing Free standing racking that is tailored to every specific customer need.

Below are the Options which are available on the free standing racking. Please be aware that LEEC will endeavour to meet every customer requirement request.

Please do contact us for more information.

Width Options
Free standing racking is available in Standard, Semi Obese, Obese and Bariatric widths to suit LEEC's Body Storage Tray Range. Standard - 560mm Wide Trays Semi Obese - 660mm Wide Trays Obese - 750mm Wide Trays Bariatric - 900mm Wide Trays

Height and Tier Options

Racking is available in 2, 3, 4 and 5 tier systems. The space of each tier can vary and is defined by the height limitations of the racking. The main height limitations are The range of the trolley that is to be used with the racking, The height of the room that the racking is to be situated, The access (doorways) available to install the racking.
