Features:

  • Dry glassware, surgical instruments, wigs / costumes, media, cycle gear, PCB's
  • Two sizes with hinged glass doors
  • Two sizes with sliding glass doors
  • 5mm thick, clear, toughened glass doors (BS EN 12150)
  • Fan models available

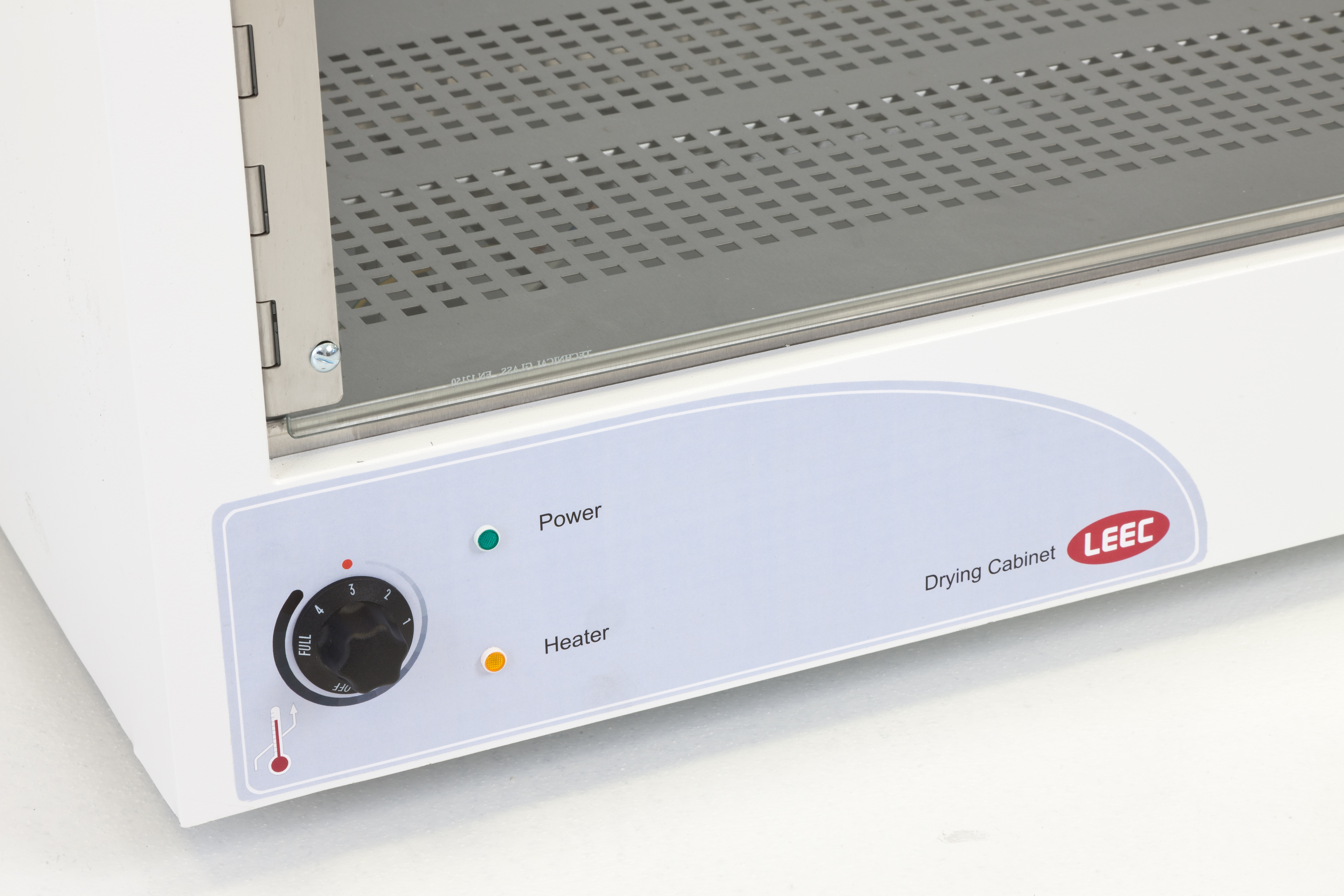

LEEC Drying Cabinets are made from rust-resistant steel which is finished in white polyester powder coat paint as standard. They have heatproof toughened glass doors to British Standards. The shelves are removable and can be adjusted in height every 25mm. Heating elements are waterproof and are located underneath a perforated floor, which is finished in unpainted, polished stainless steel. Temperature control is by Simmerstat giving any desired temperature up to a maximum of 50°C above ambient temperature.

Drying at a lower temperature than a laboratory oven, these units can be used in pharmaceutical/cosmetic manufacturing, the food testing industry, automotive and aerospace industries, and electronics (PCB) manufacturing, as well as science labs in schools, colleges and universities. They are also ideal for drying theatrical wigs and costumes and are popular with theatrical production companies, film/TV show producers. They are often referred to as "wig dryers" or a "wig dryer" and they can hold several head blocks.

DOWNLOAD BROCHURE

  F1 FC1 FX1 FCX1
Fan System None (Natural Convection) Circulating Extract Circulating/Extract
External Dimensions
(H x W x D mm)
1626 x 1168 x 610 1726 x 1168 x 610 1826 x 1168 x 610 1800 x 1168 x 610
Internal Dimensions
(H x W x D mm)
1430 x 1165 x 590 1430 x 1165 x 590 1430 x 1165 x 590 1430 x 1165 x 590
Capacity 1000L 1000L 1000L 1000L
Weight 125kg 125kg 125kg 125kg
Shelves 4 4 4 4
Power Rating 2500 watts 2500 watts 2500 watts 2500 watts

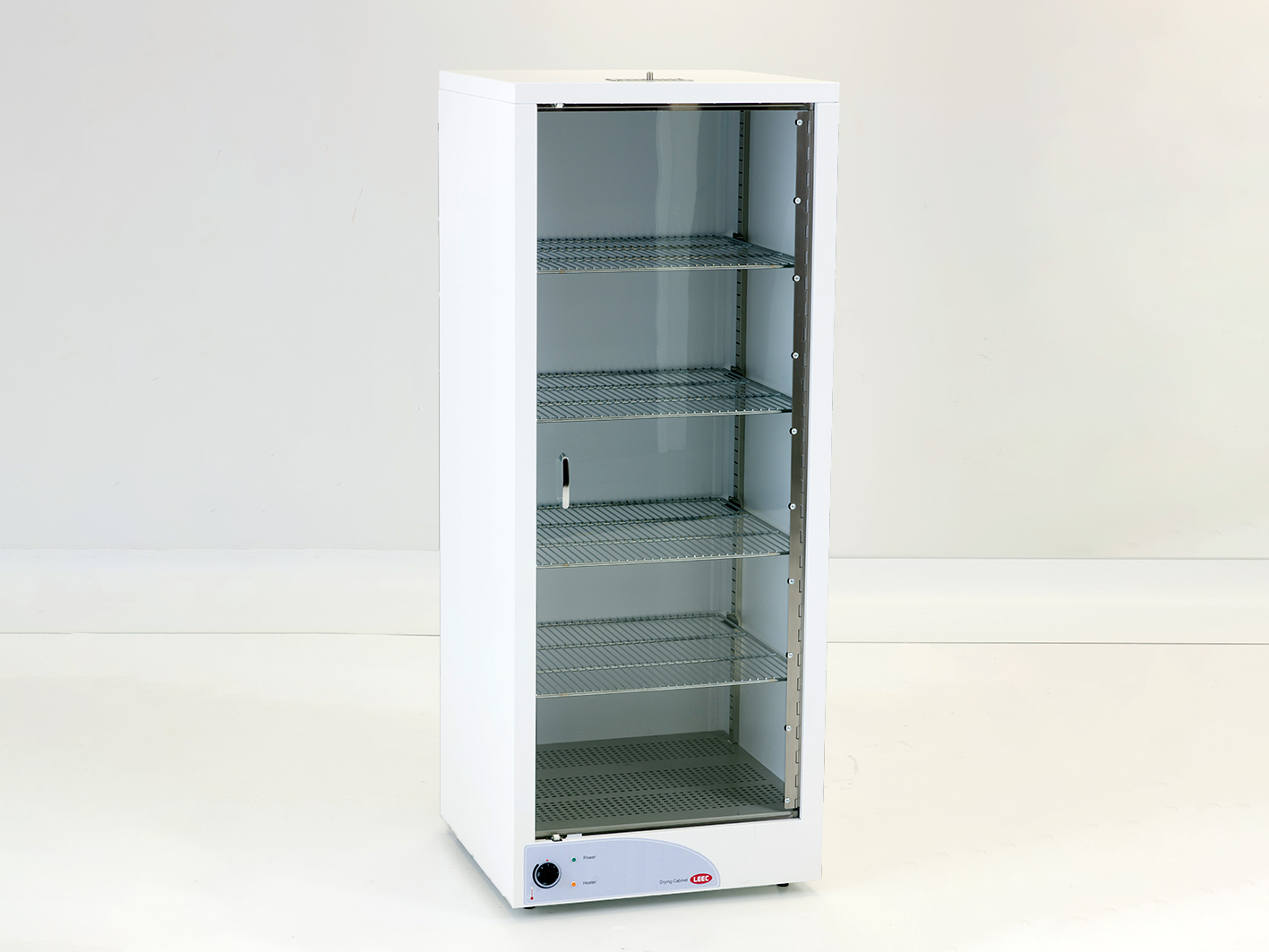

  F2 FC2 FX2
Fan System None (Natural Convection) Circulating Extract
External Dimensions
(H x W x D mm)
1626 x 635 x 610 1726 x 635 x 610 1826 x 635 x 610
Internal Dimensions
(H x W x D mm)
1430 x 630 x 590 1430 x 630 x 590 1430 x 630 x 590
Capacity 540L 540L 540L
Weight 75kg 75kg 75kg
Shelves 4 4 4
Power Rating 1500 watts 1500 watts 1500 watts
  B1 BC1 BX1
Fan System None (Natural Convection) Circulating Extract
External Dimensions
(H x W x D mm)
864 x 1168 x 610 964 x 1168 x 610 1064 x 1168 x 610
Internal Dimensions
(H x W x D mm)
685 x 1165 x 610 685 x 1165 x 610 685 x 1165 x 610
Capacity 480L 480L 480L
Weight 63kg 63kg 63kg
Shelves 1 1 1
Power Rating 1500 watts 1500 watts 1500 watts
  B2 BC2 BX2
Fan System None (Natural Convection) Circulating Extract
External Dimensions
(H x W x D mm)
864 x 635 x 610 964 x 635 x 610 1064 x 635 x 610
Internal Dimensions
(H x W x D mm)
685 x 630 x 590 685 x 630 x 590 685 x 630 x 590
Capacity 255L 255L 255L
Weight 45kg 45kg 45kg
Shelves 1 1 1
Power Rating 1000 watts 1000 watts 1000 watts
  LS SS
Fan System None (Natural Convection) None (Natural Convection)
External Dimensions
(H x W x D mm)
630 x 1000 x 410 530 x 760 x 360
Internal Dimensions
(H x W x D mm)
530 x 990 x 390 430 x 750 x 340
Capacity 226L 113L
Weight 36kg 22kg
Shelves 3 3
Power Rating 750 watts 500 watts

Electrical supply: all models 220/240v, 50Hz.
Glass doors excluded from the guarantee.

The standard "natural convection" drying cabinets are supplied with a sliding stainless steel shutter on top for ventilation. LEEC drying cabinets are also available with a circulation fan or extract fan. A circulating fan gives a better drying performance. The air is drawn upwards through the body of the cabinet and returned via a full-width air duct to the heaters in the base. Where an extractor fan for exhausting moisture to outside the building is fitted, the fan will be located in a chimney which adds approximately 200mm to the overall cabinet height and terminates in a 100mm diameter spigot.

Note: The FCX1 model is a combined circulating / extractor system. A butterfly valve system adjusts the proportion of air circulated or exhausted by a single, more powerful fan unit.

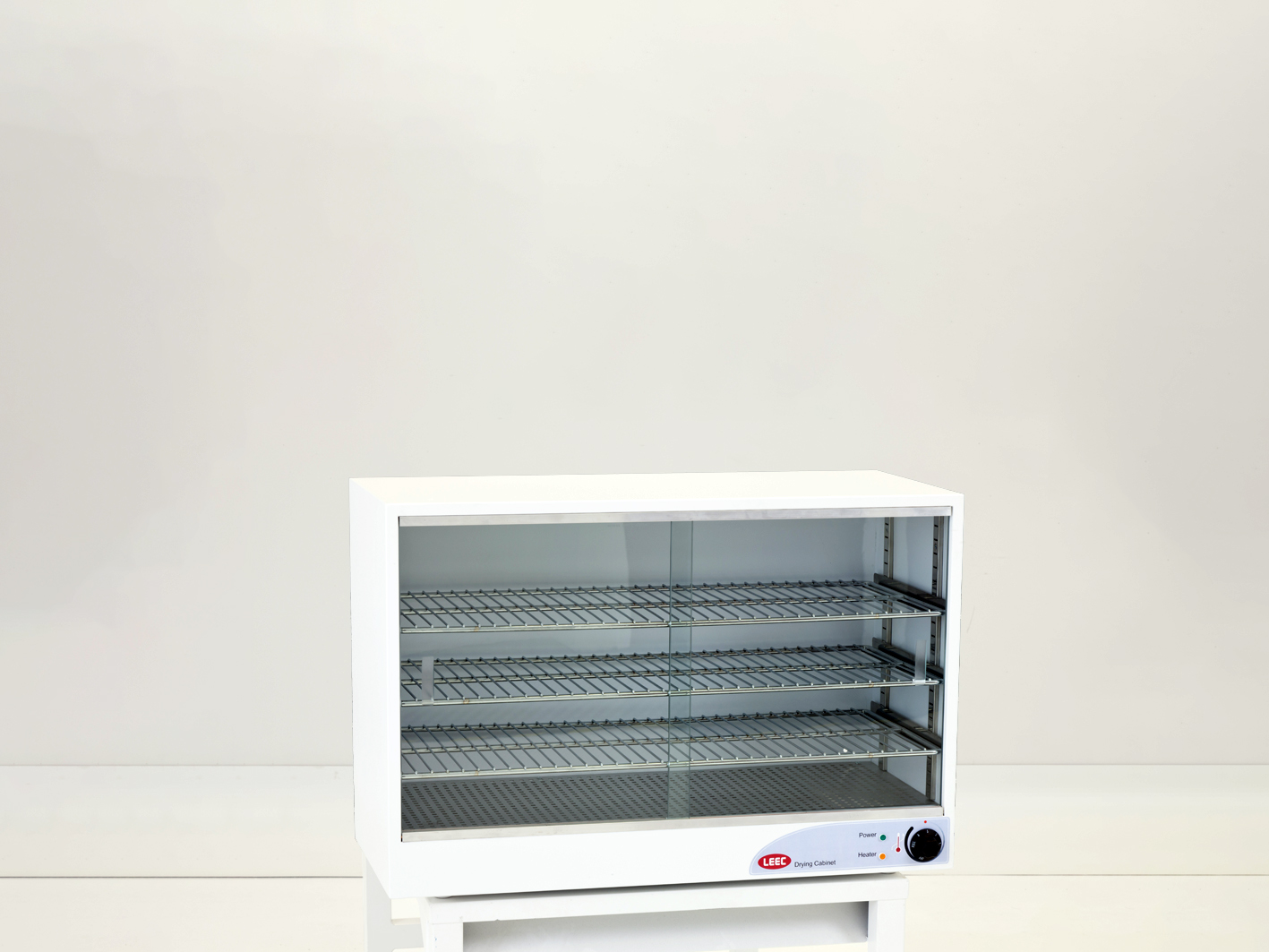

Both of the smaller drying cabinets are made of steel and are finished in white powder coated paint with heatproof toughened glass sliding doors. The perforated floor is finished in unpainted, polished stainless steel.

Three wire shelves (included) are removable and can be adjusted for height every 19mm. Temperature control is by Simmerstat giving any desired heat up to a maximum of 50°C above ambient temperature.

Both models have fixing holes in the back to allow for wall mounted if desired.

Accessories
SD
Solid aluminium doors, white painted (instead of glass).
L11
Spare mesh shelf and brackets for F1, FX1, B1 and BX1 models.
L12
Spare mesh shelf and brackets for FC1, FCX1 and BC1 models.
L13
Spare mesh shelf and brackets for F2, FX2, B2 and BX2 models.
L14
Spare mesh shelf and brackets for FC2 and BC2 models.
L15
Spare mesh shelf and brackets for models LS.
L16
Spare mesh shelf and brackets for model SS.
HE1
Boost heating element and switch for FC1, FX1 and FCX1.
HE2
Boost heating element and switch for FC2 and FX2.
HE3
Boost heating element and switch for BC1 and BX1.
HE4
Boost heating element and switch for BC2 and BX2.
