Features:

  • Large bench top CO2 incubators

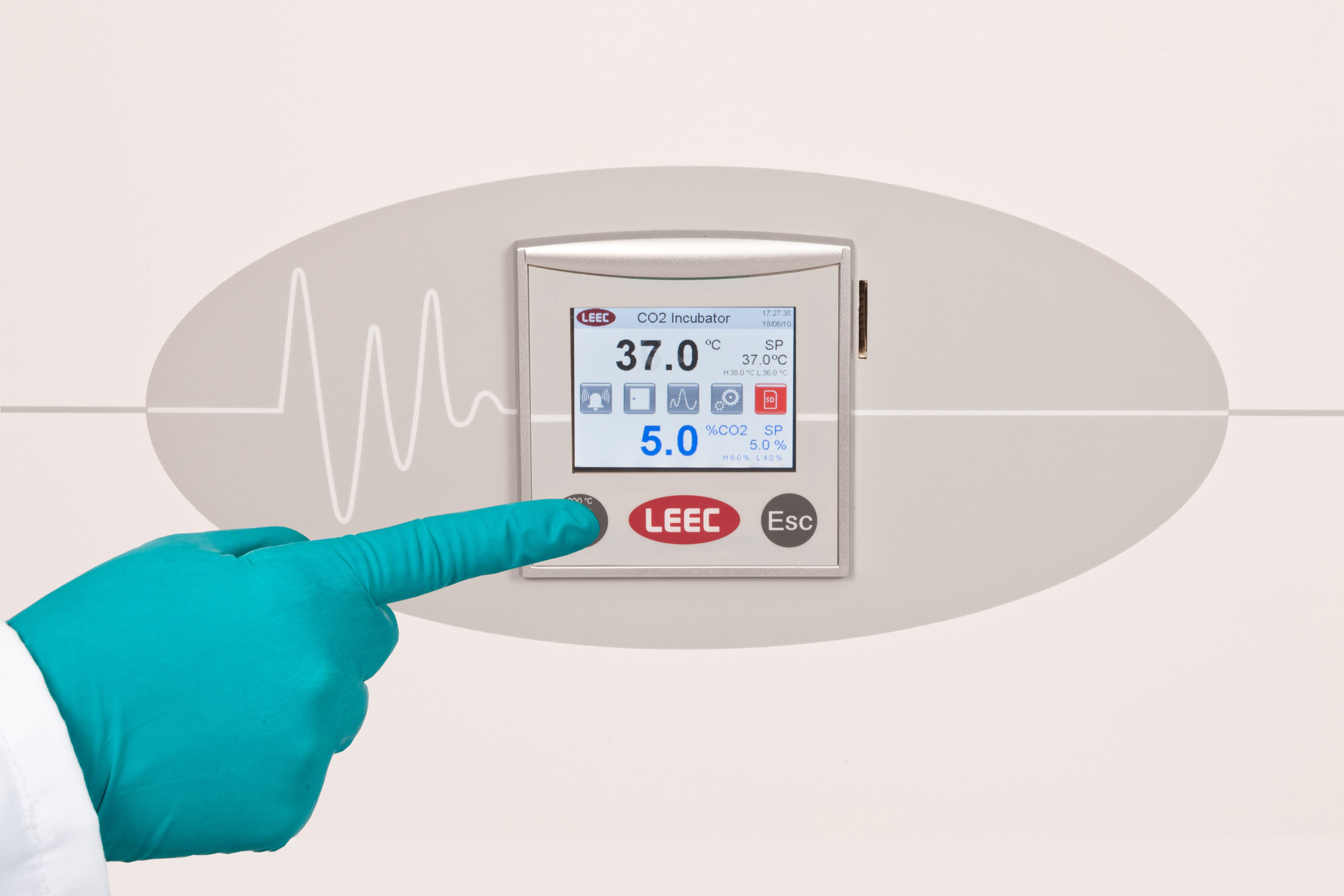

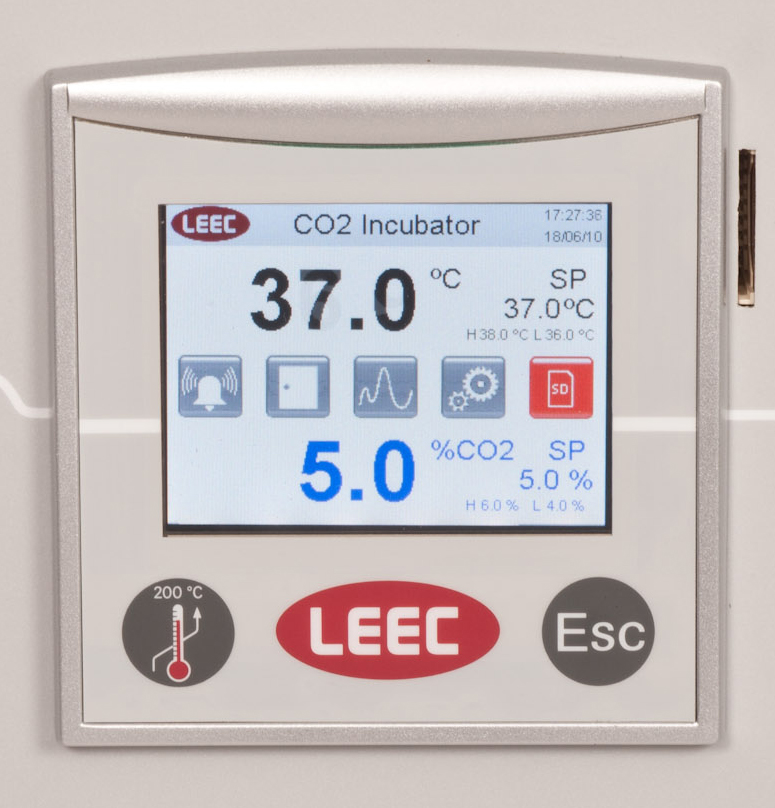

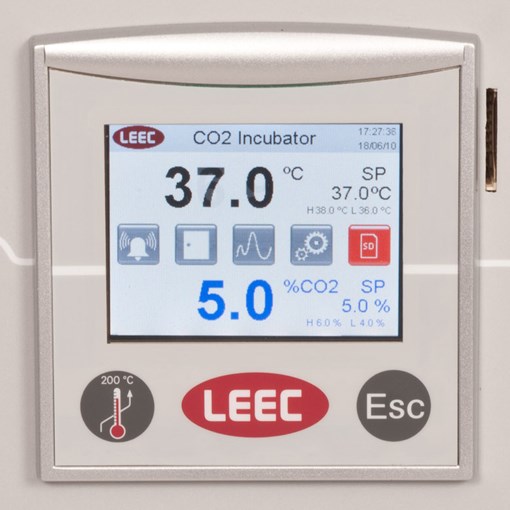

  • Touch screen controller
  • Infrared CO2 sensor
  • Seamless, one piece, deep drawn chamber
  • Built in data logging (text & graphical)
  • 316 grade electro-polished chamber
  • 190 litre chamber
  • Fan-less design
  • Anti-bacterial biocide paint

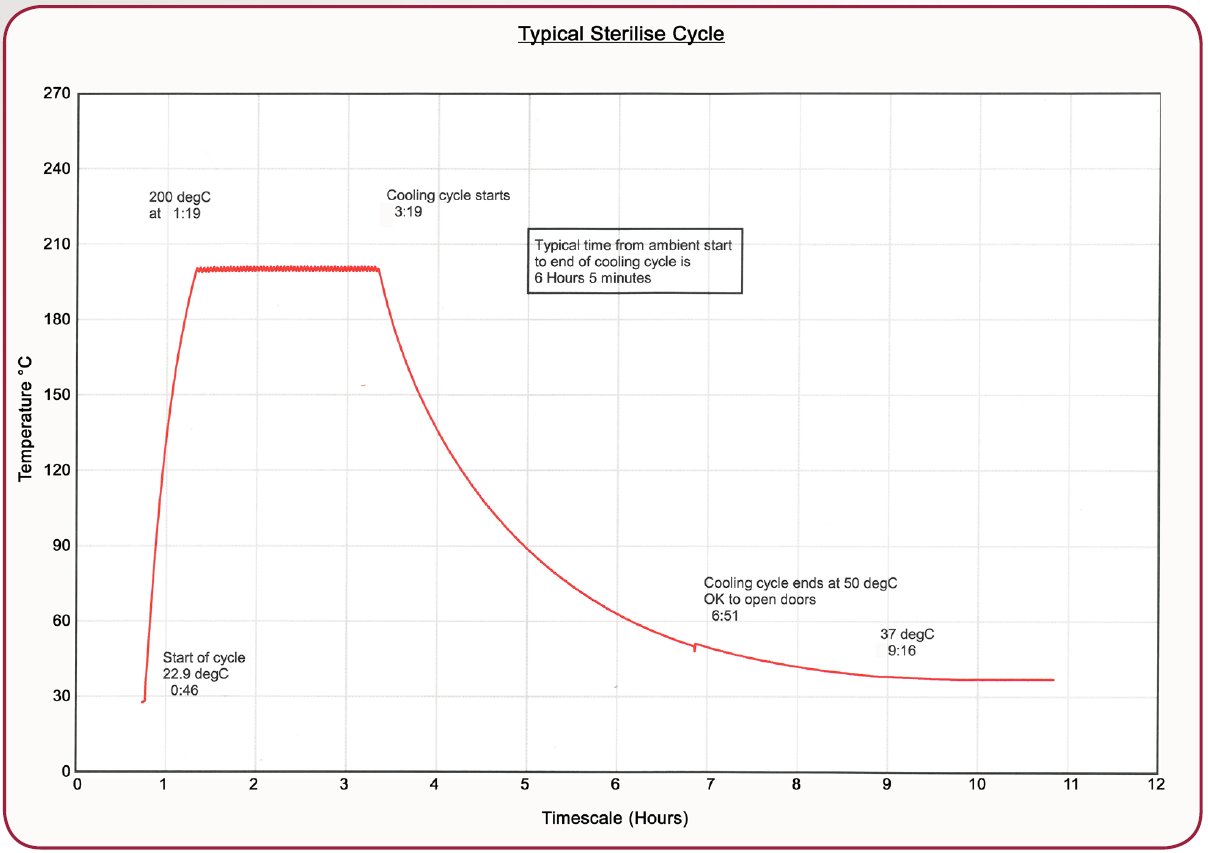

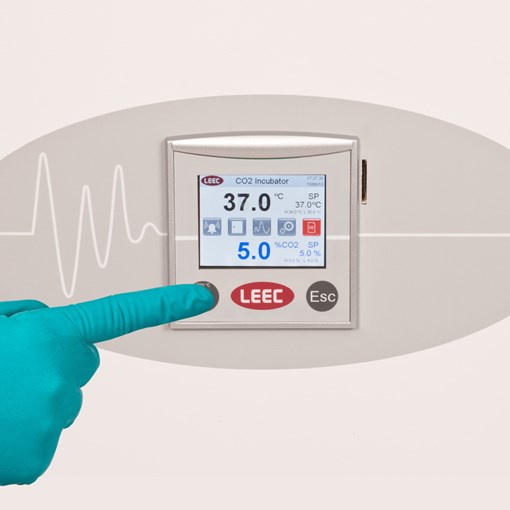

  • 200°C sterilisation (Touch 190S only)
  • Multi gas / low oxygen version available (Touch 190S with OXY 1-19)

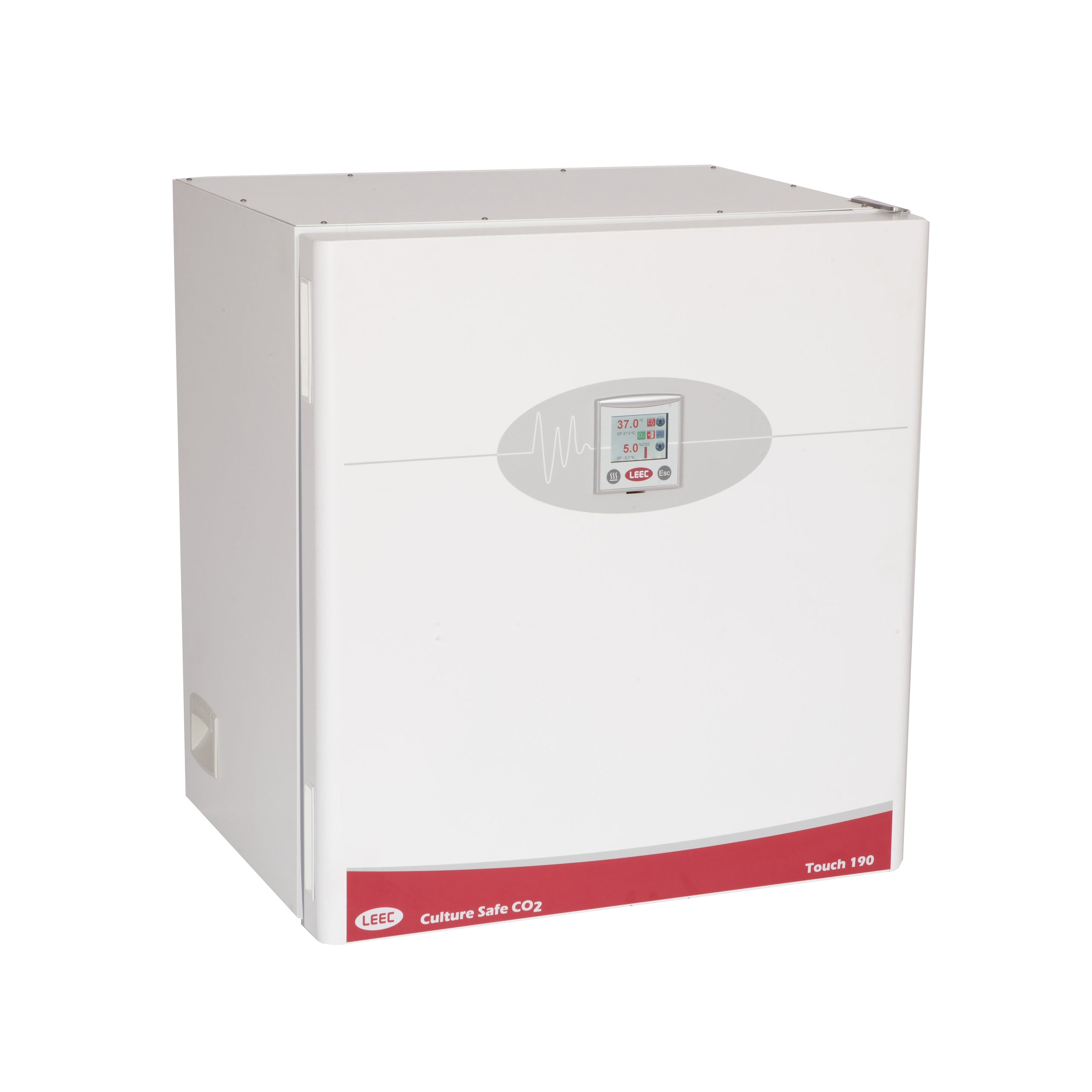

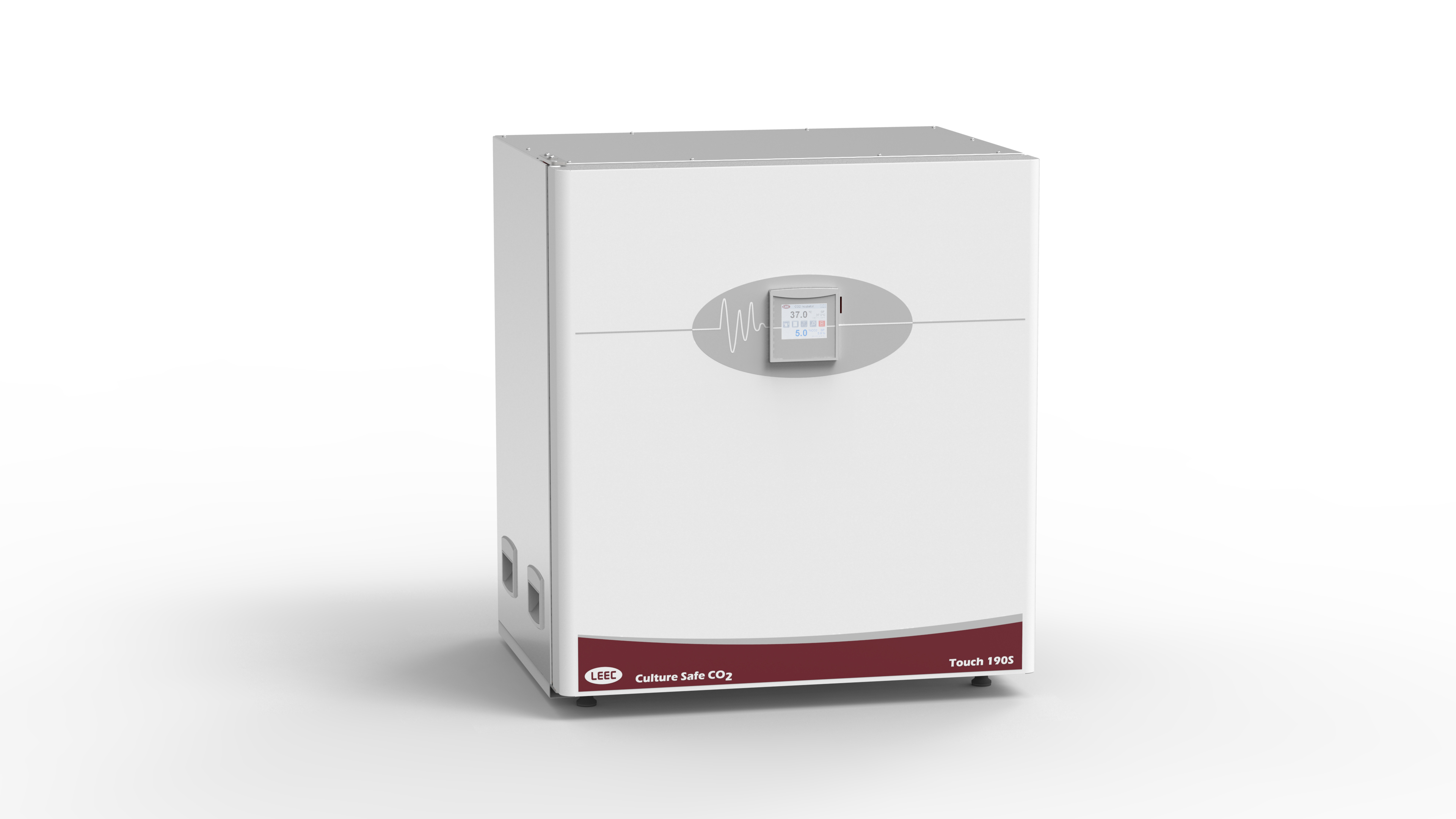

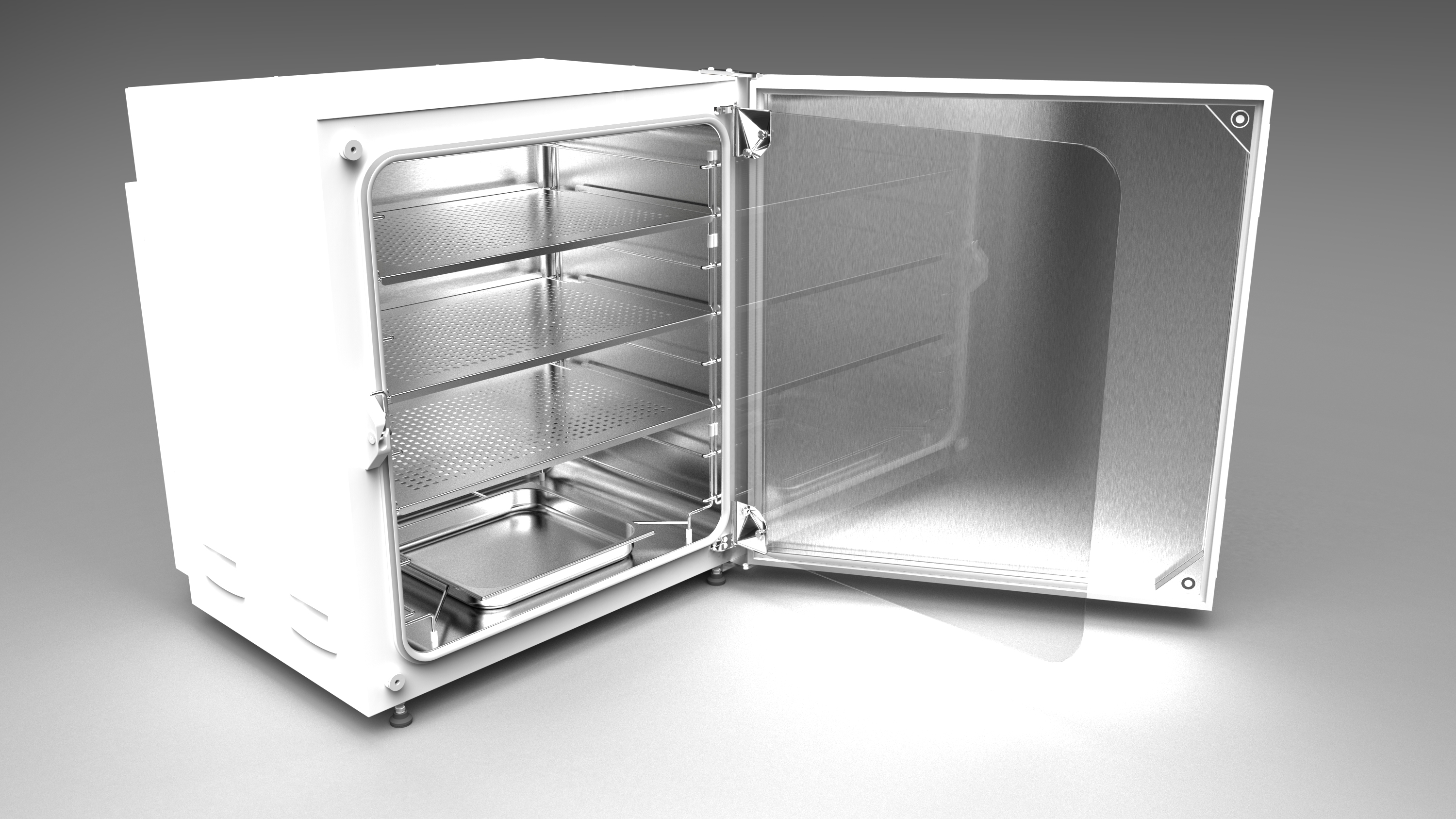

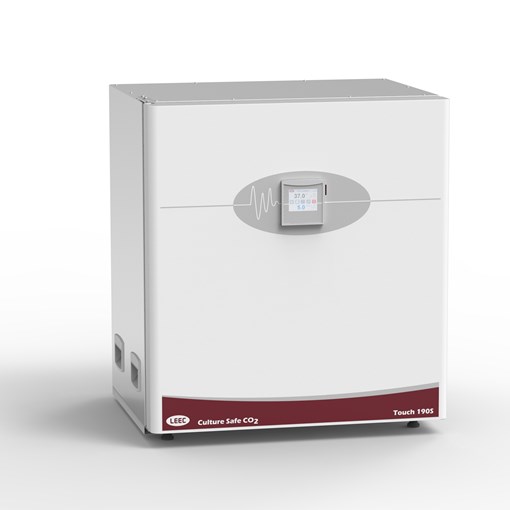

LEEC Culture Safe Touch 190 and Touch 190S CO2 incubators have a fully sealed, electro-polished, one-piece, deep drawn 190-litre chamber which is manufactured from the highest grade 316 stainless steel. The outer cabinet is manufactured from stainless steel and has an anti-microbial polyester powder coated paint finish giving these CO2 incubators exceptional corrosion and contamination resistance.

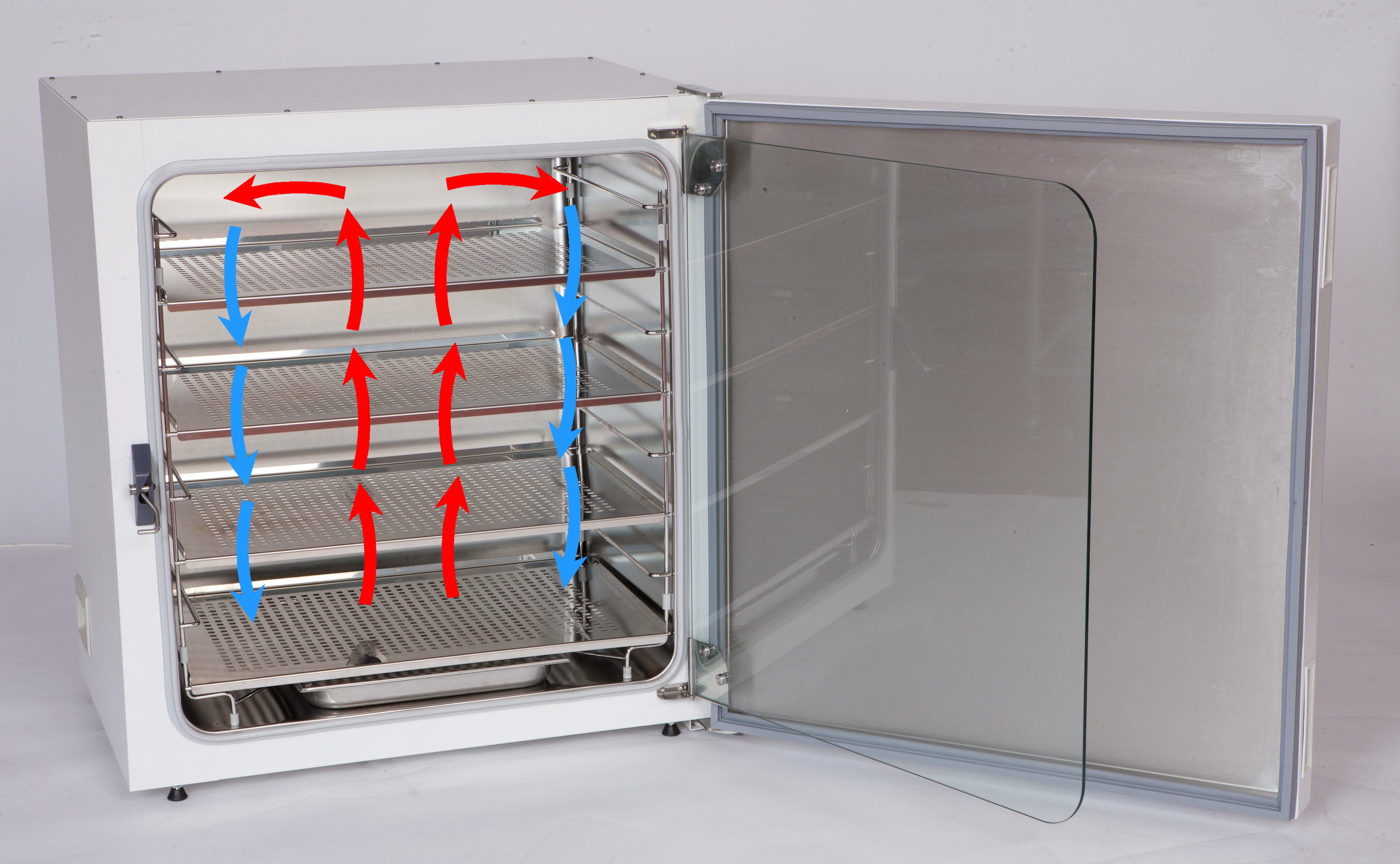

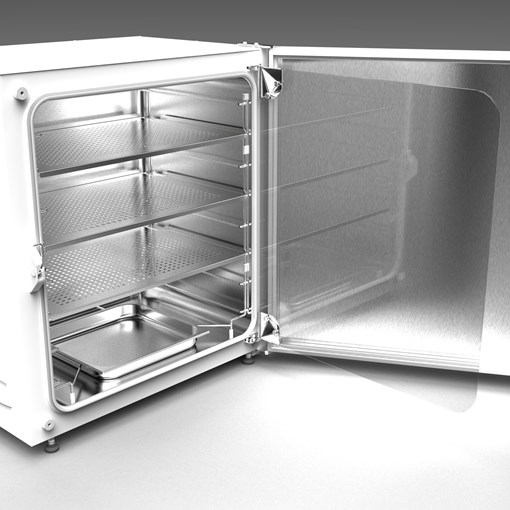

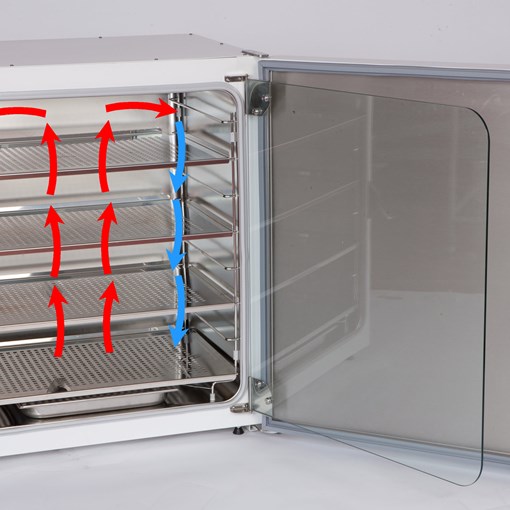

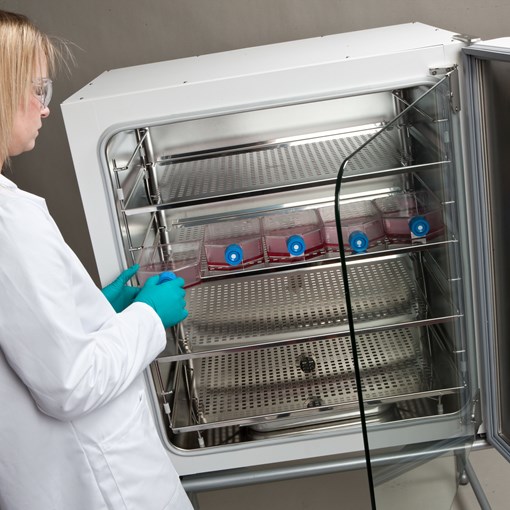

LEEC Culture Safe Touch CO2 incubators have 6-sided, fan-less heating systems with high-performance thermal insulation, minimising the risk of contamination and reducing running costs. Each incubator has an inner glass viewing door which gives a clear view of the chamber without disturbing the internal atmosphere. The outer door provides a firm seal with a magnetic gasket, which locks during the 200°C sterilisation cycle (Touch 190S only). An infrared CO2 sensor gives accurate readings of the internal atmosphere regardless of the humidity level.

LEEC also offers a low oxygen multi-gas incubator with CO2 and O2 Control as a factory-fitted option on the Touch 190S and mini Culture Safe Touch 50S CO2 incubators. (Please see the TECHNICAL tab for more details).

Download Brochure

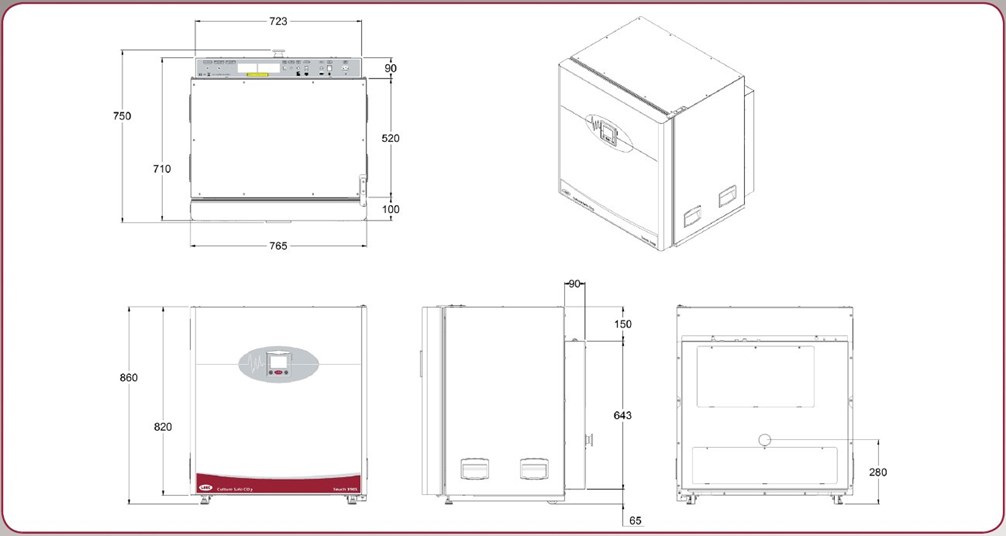

T190 T190S external dimensions

  T190 / T190S T190S with OXY 1-19
Temperature Range 5°C above ambient to +60°C 5°C above ambient to +60°C
Temperature Control Typically ± 0.1°C Typically ± 0.1°C
Temperature Stability ± 0.1°C @ 37°C ± 0.1°C @ 37°C
Temperature Uniformity ± 0.25°C @ 37°C ± 0.25°C @ 37°C
CO2 Range 0% to 20% 1% to 19%
CO2 Control ± 0.1% ± 0.1%
CO2 Stability ± 0.2% ± 0.2%
CO2 Uniformity ± 0.2% ± 0.2%
CO2 Sensor Infrared (externally mounted) Infrared (externally mounted)
O2 Range - 1% to 19%

O2 Control

- ± 0.1%
O2 Stability - ± 0.25%
O2 Uniformity - ± 0.25%
O2 Sensor  - Electrochemical
Min CO2 inlet pressure 5 psi / 0.3 bar 5 psi / 0.3 bar
Max CO2 inlet pressure 10 psi / 0.7 bar 10 psi / 0.7 bar
Min N2 Inlet pressure - 5 psi / 0.3 bar
Max N2 inlet pressure - 10 psi / 0.7 bar
Power Requirements

240V AC, 50/60 Hz

380W nominal (1800W sterilising)

(120V versions available)

240V AC, 50/60 Hz

380W nominal (1800W sterilising)

(120V versions available)

Humidity (@37ºC / 5% CO2) up to 95% RH up to 95% RH
Shelves included

4 (stainless steel)

4 (stainless steel)
Access port

1 (24mm diameter)

1 (24mm diameter)
Weight

94.5 KG (T190)

104 KG (T190S)

105kg (T190S with OXY1-19)

Every LEEC Culture Safe Touch CO2 incubator is hand made to order at our Nottingham factory. We also offer several options and accessories:

Options
OXY 1-19
1-19% Oxygen control (factory fitted option – Touch 190S only)

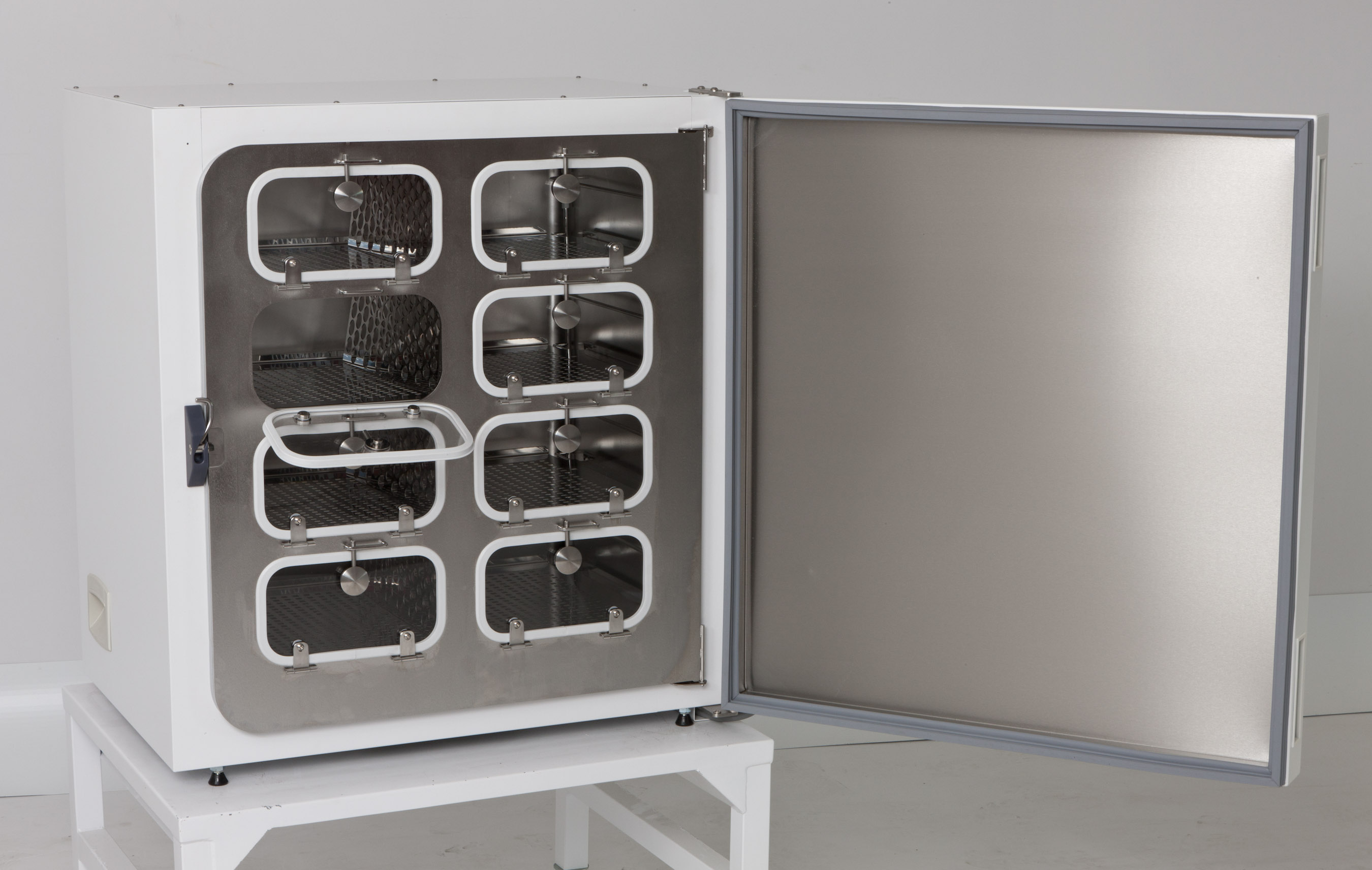

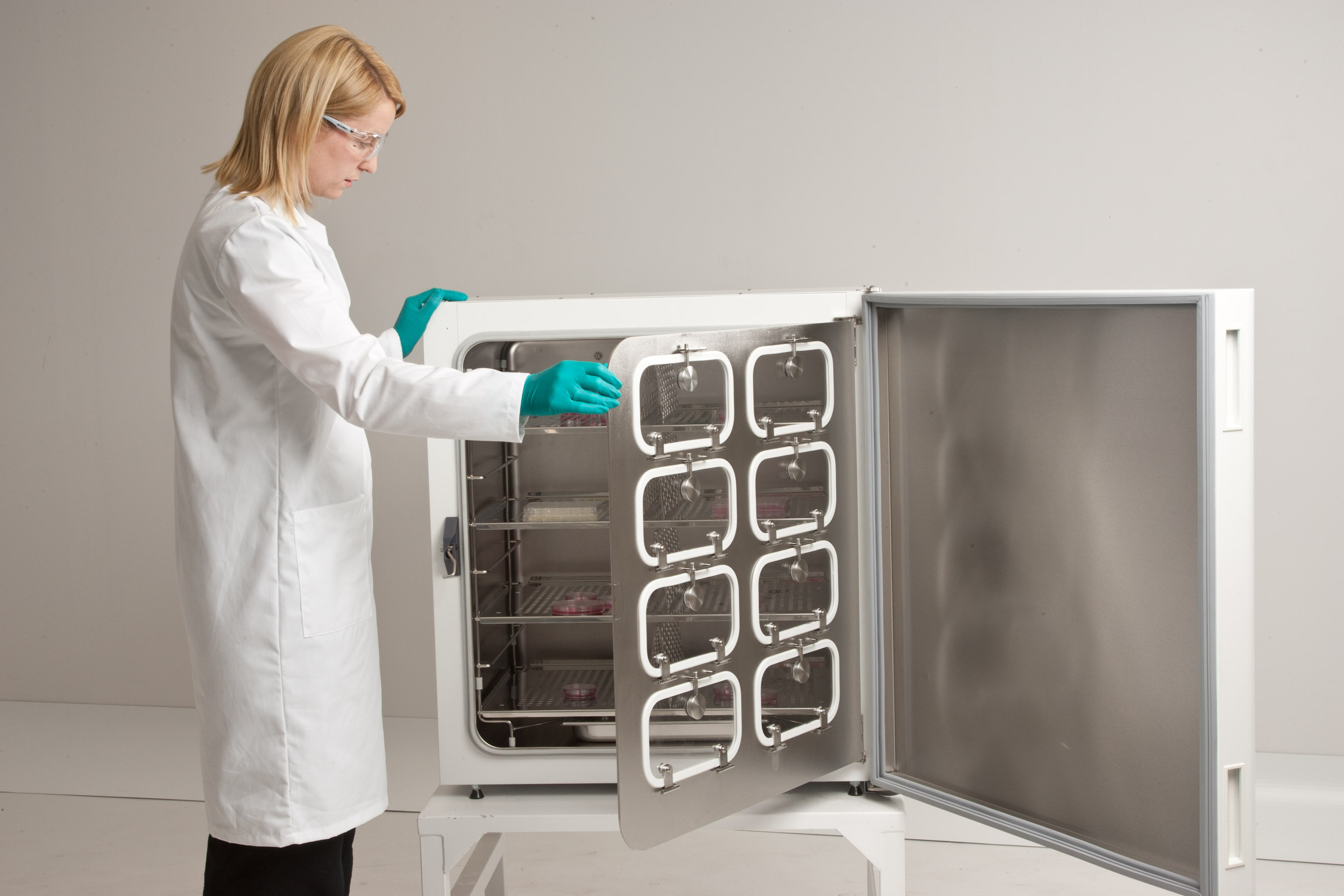

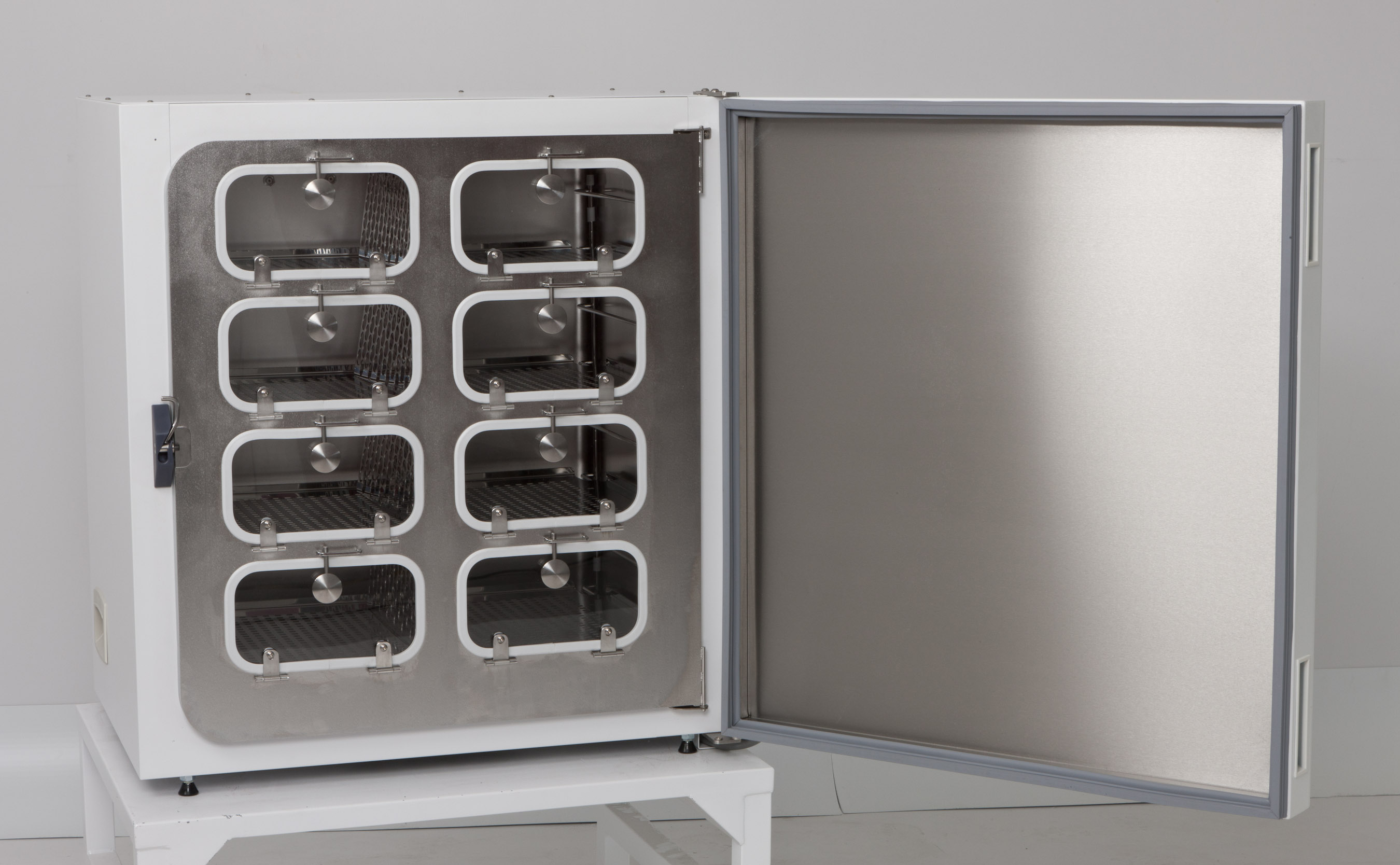

8ID

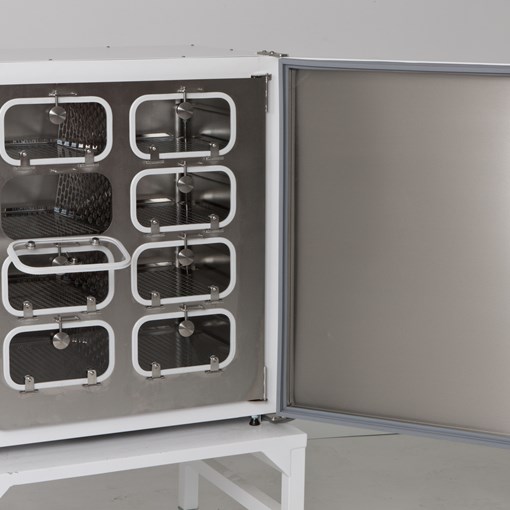

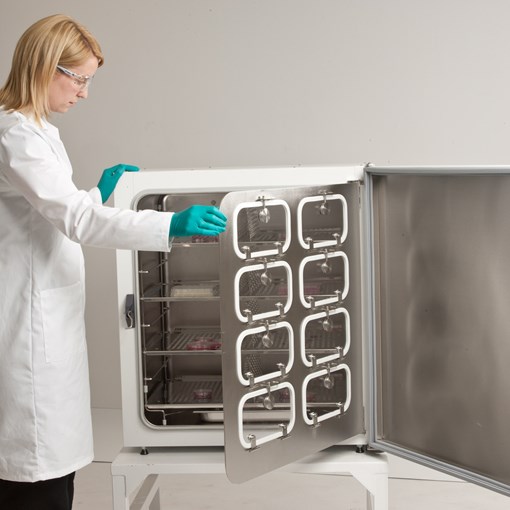

8 inner doors option (multi door)
RHDISP
%RH display
ETH
Ethernet communication port
RETX
4-20mA retransmit
Accessories

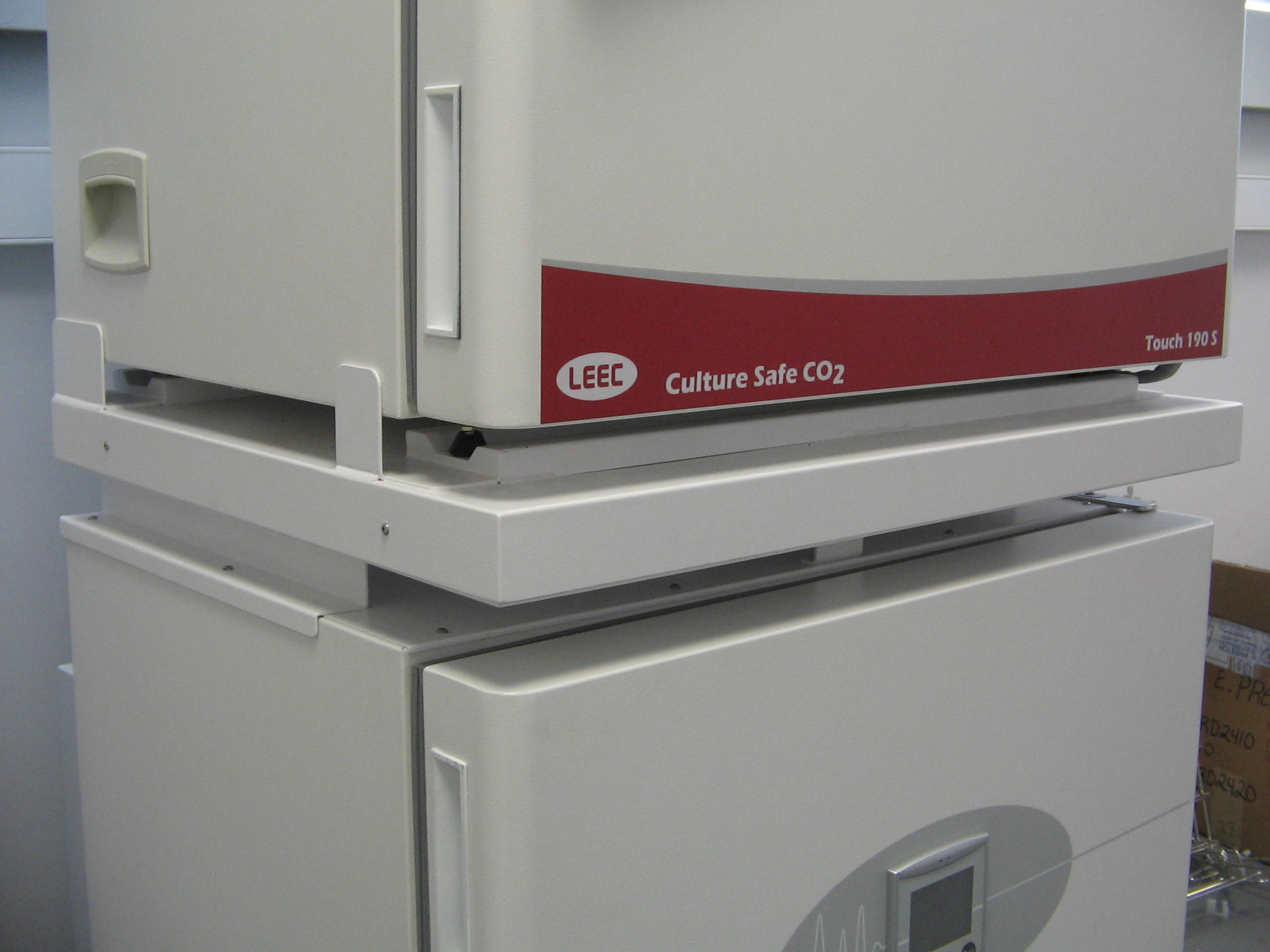

PTSK
Stacking Kit for two 190 models

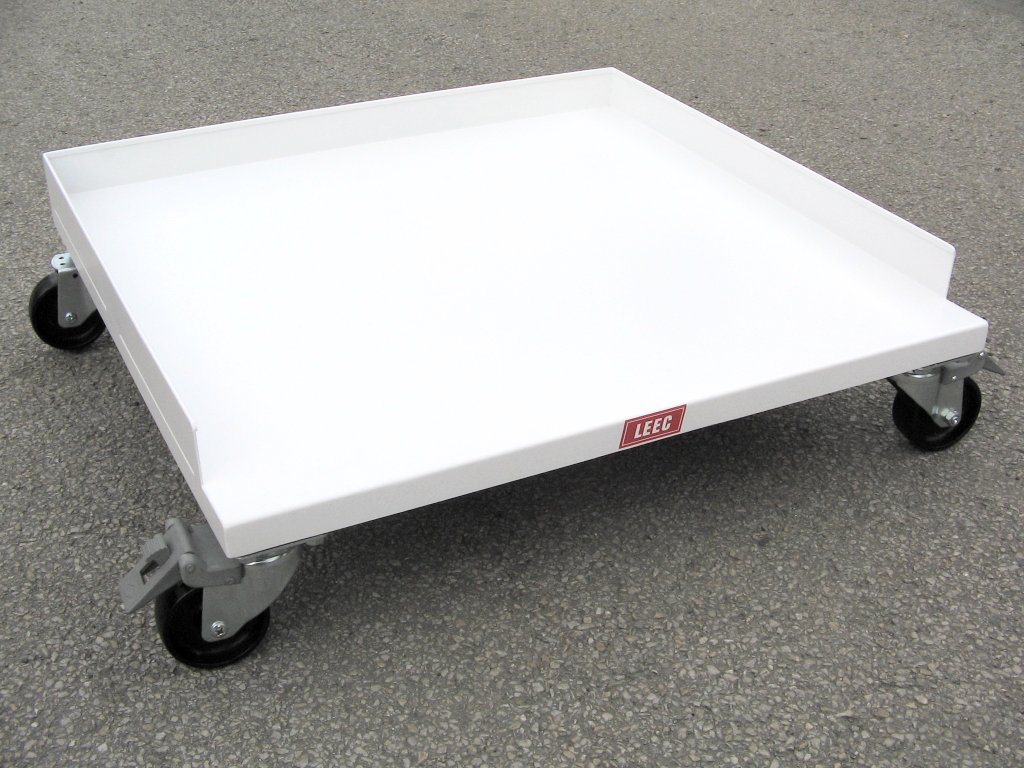

PTST1
Wheeled Platform for 190 models
PTSH
Stainless steel shelf for 190 litre Culture Safe models

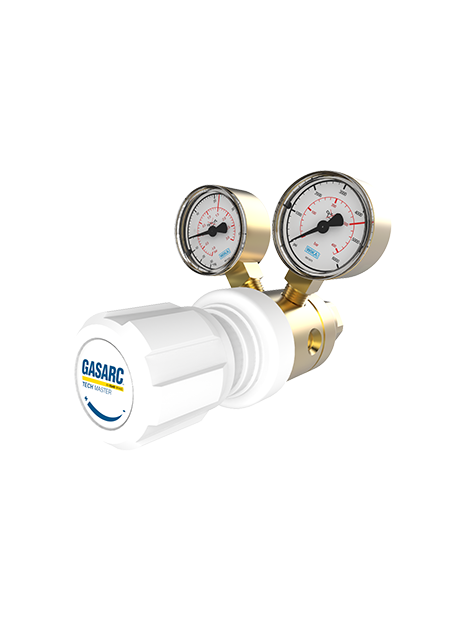

PRV2
Two stage CO2 cylinder pressure reducing valve with gauges
PRVN
N2 cylinder pressure reducing valve with gauges

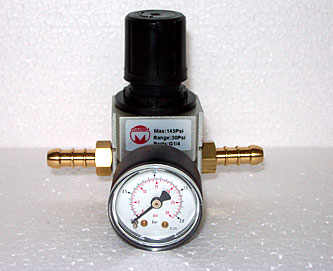

R06
In-Line CO2 reducing valve with gauge

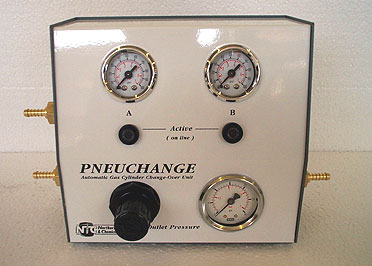

PNEU
Automatic change over unit for two cylinders

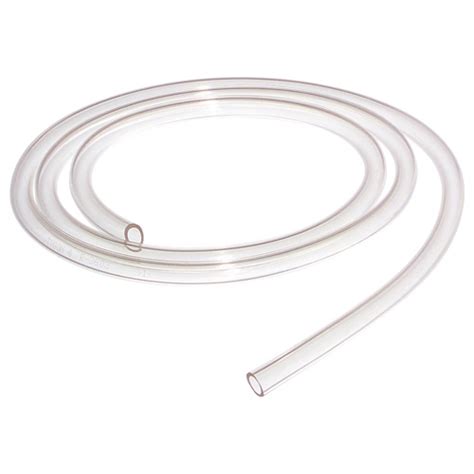

TUBE2
Tygon CO2 tubing, 4mm internal / 6mm external
