Features:

  • Small bench top CO2 incubators
  • Touch screen controller
  • Infrared CO2 sensor
  • Seamless, one piece, deep drawn chamber
  • Built in data logging (text & graphical)
  • 316 grade electro-polished chamber
  • 50 litre chamber capacity
  • Fan-less design
  • Anti-bacterial biocide paint
  • 200°C sterilisation (Touch 50S only)
  • Multi gas / low oxygen version available (Touch 50S with OXY 1-19)

LEEC mini Culture Safe Touch CO2 incubators have fully sealed, one-piece, deep drawn 50 litre chambers which are manufactured from the highest grade electro-polished 316 grade stainless steel. The outer cabinets are manufactured from stainless steel and have an anti-bacterial polyester powder coat paint finish, giving these CO2 incubators exceptional corrosion and contamination resistance.

All LEEC mini Culture Safe CO2 incubators have 6-sided, fan-less heating systems, with high-performance thermal insulation, which minimises the risk of contamination and lowers running costs. Each incubator has an inner glass viewing door giving a clear view into the chamber without disturbing the internal atmosphere. The outer door provides a firm seal with a magnetic gasket, which locks during the sterilisation cycle (T50S only). LEEC utilise an infrared CO2 sensor, giving a more accurate reading of the internal atmosphere, irrespective of the humidity level.

LEEC also offers a low oxygen/multi-gas incubator with CO2 and Oxygen Control as a factory-fitted option (LEEC mini Culture Safe Touch 50S CO2 Incubator only). Please see the TECHNICAL tab (above) for more details.

Download Brochure

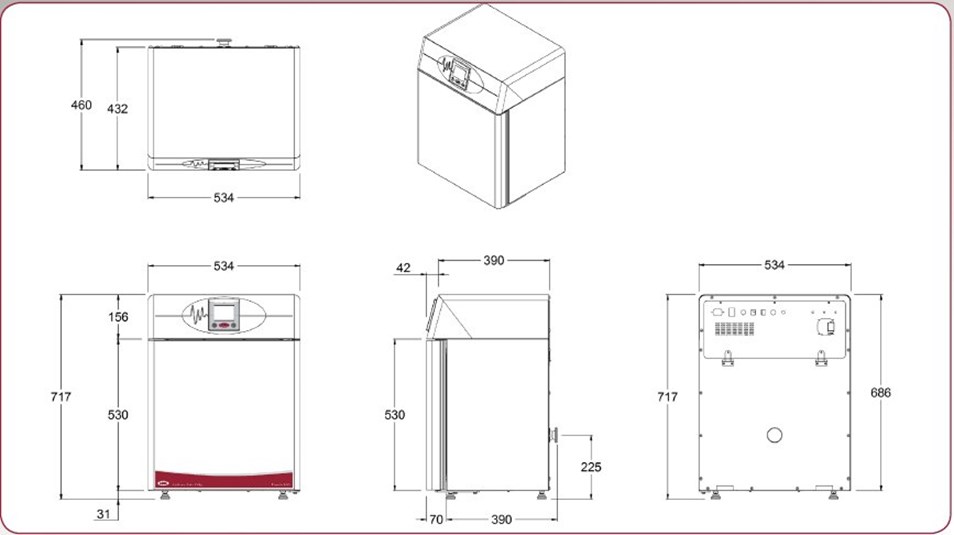

LEEC mini Culture Safe Touch external dimensions T50 T50S

  T50 / T50S T50S with OXY 1-19
Temperature Range 5°C above ambient to +60°C 5°C above ambient to +60°C
Temperature Control 0.1°C 0.1°C
Temperature Stability ± 0.1°C @ 37°C ± 0.1°C @ 37°C
Temperature Uniformity ± 0.25°C @ 37°C ± 0.25°C @ 37°C
CO2 Range 0% - 20% 0% – 20%
CO2 Control ± 0.1% ± 0.1%
CO2 Stability ± 0.2% ± 0.2%
CO2 Uniformity ± 0.2% ± 0.2%

CO2 Sensor

Infrared (externally mounted) Infrared (externally mounted)
O2 Range - 1% to 19%
O2 Control - ± 0.1%
O2 Stability - ± 0.25%
O2 Uniformity - ± 0.25%
O2 Sensor - Electrochemical
Min CO2 inlet pressure 5 psi / 0.3 bar 5 psi / 0.3 bar
Max CO2 inlet pressure 10 psi / 0.7 bar 10 psi / 0.7 bar
Min N2 inlet pressure - 5 psi / 0.3 bar
Max N2 inlet pressure - 10 psi / 0.7 bar
Power Requirements

240V AC, 50/60 Hz

350W nominal (950W sterilising)

(120V versions available)

240V AC, 50/60 Hz

350W nominal (950W sterilising)

(120V versions available)

Humidity (@37ºC / 5% CO2)

up to 95% RH

up to 95% RH
Shelves Included 3 (stainless steel) 3 (stainless steel)
Access port 1 (24mm diameter) 1 (24mm diameter)
Weight 38 KG (T50), 40 KG (T50S) 41 KG (T50S with OXY 1-19)

Every LEEC mini Culture Safe Touch CO2 incubator is hand made to order at our Nottingham factory. We also offer several options and accessories:

Options
OXY 1-19
1-19% Oxygen Control (factory fitted - Touch 50S only)

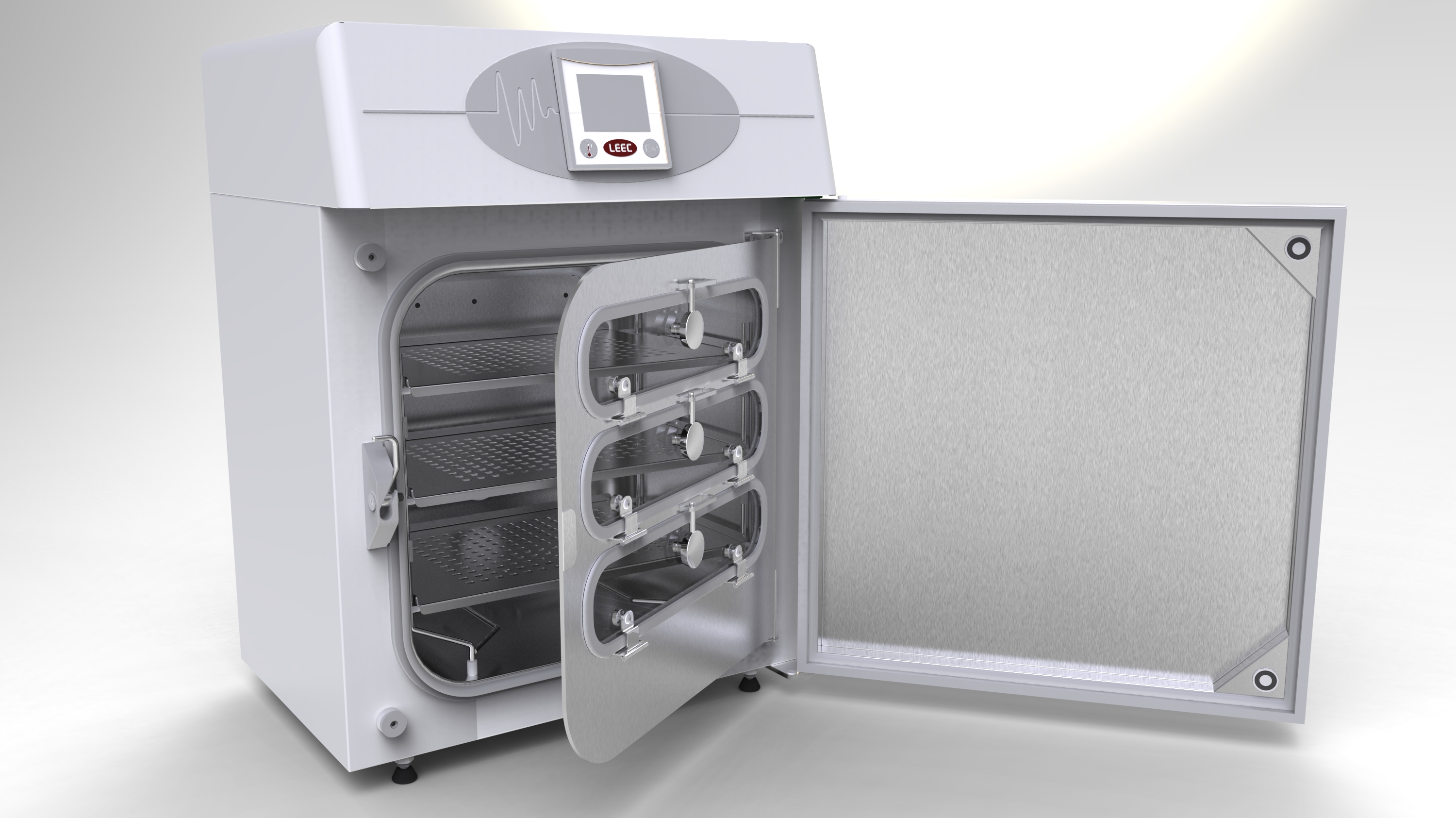

3ID
3 inner doors option (multi door)
6ID
6 inner doors option (multi door)
RHDISP
%RH display
ETH
Ethernet Communication Port
RETX
4-20mA retransmit
Accessories
PTSK3
Wheeled stacking frame for two 50L models
PRV2
Two stage CO2 cylinder pressure reducing valve with gauges
PRVN
Two stage N2 cylinder pressure reducing valve with gauges
R06
In-Line CO2 reducing valve with gauge
PNEU
Automatic change over unit for two cylinders
TUBE2
Tygon CO2 tubing, 4mm internal / 6mm external
