Features:

  • Small bench top CO2 incubator

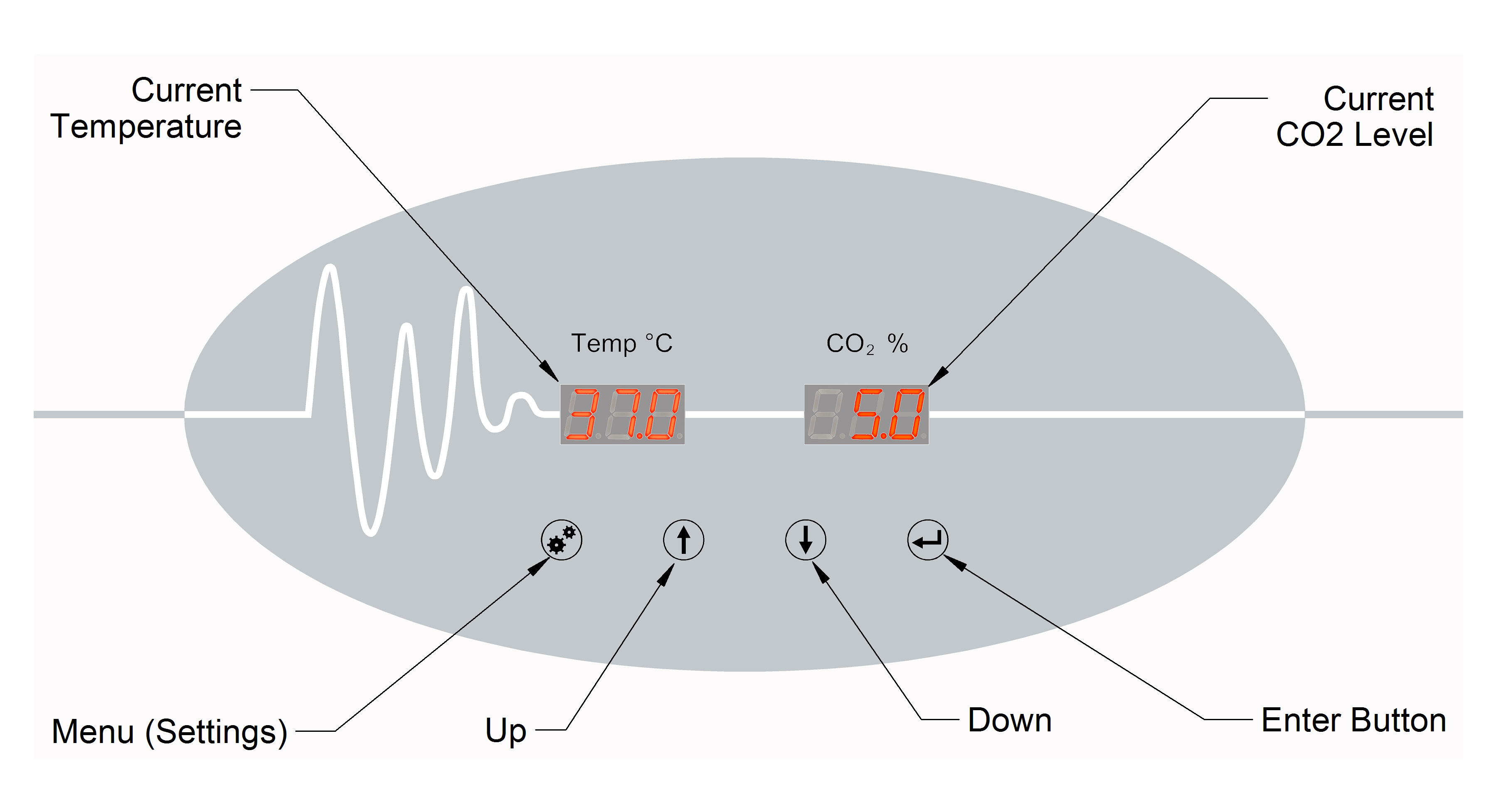

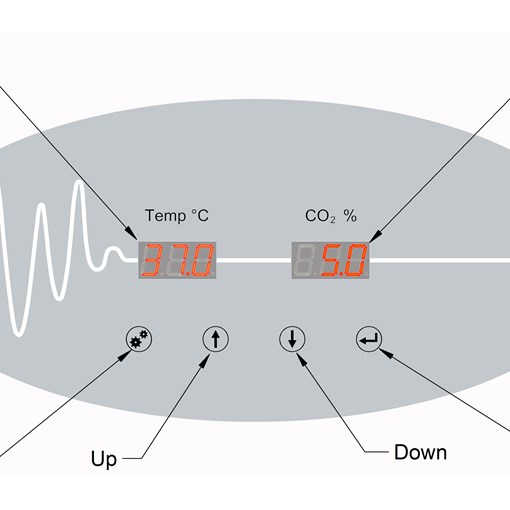

  • Simple digital control system
  • Infrared CO2 sensor
  • Fan-less design
  • 50 litre chamber capacity
  • Seamless, one piece, deep drawn chamber
  • 304 grade stainless steel chamber
  • Anti-bacterial biocide paint

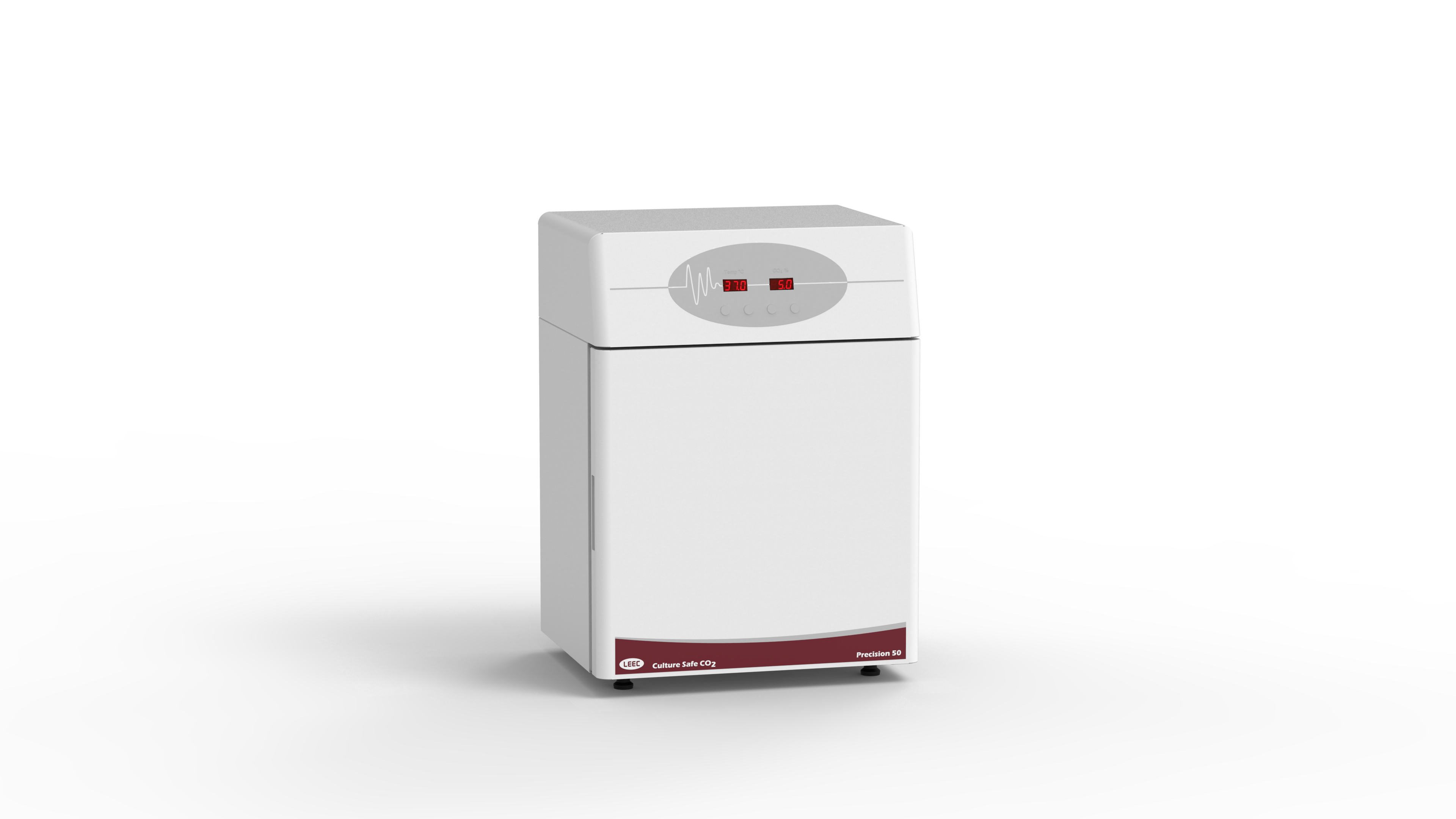

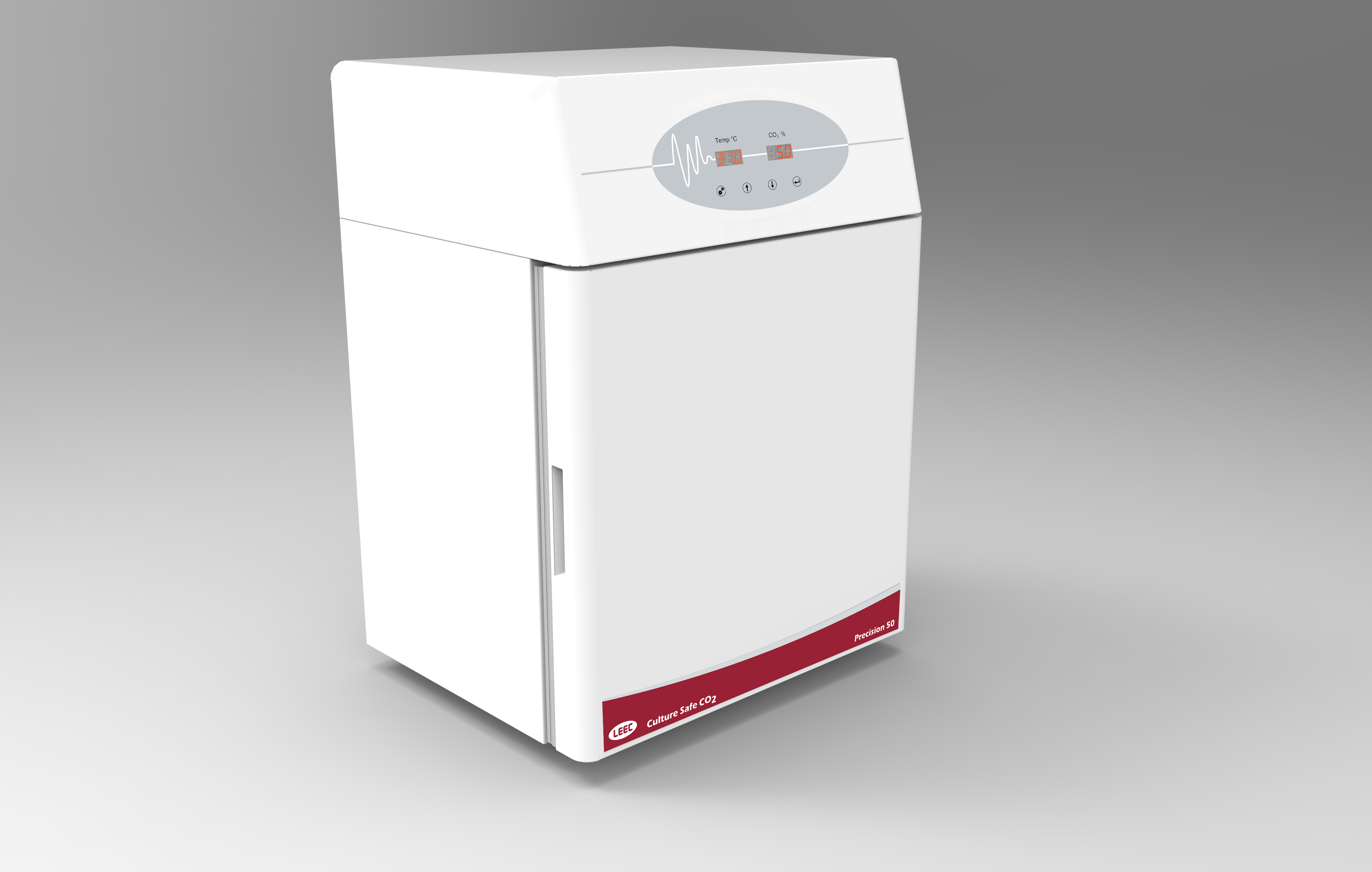

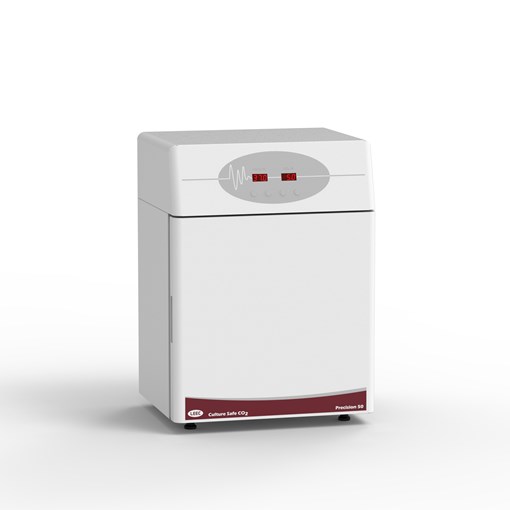

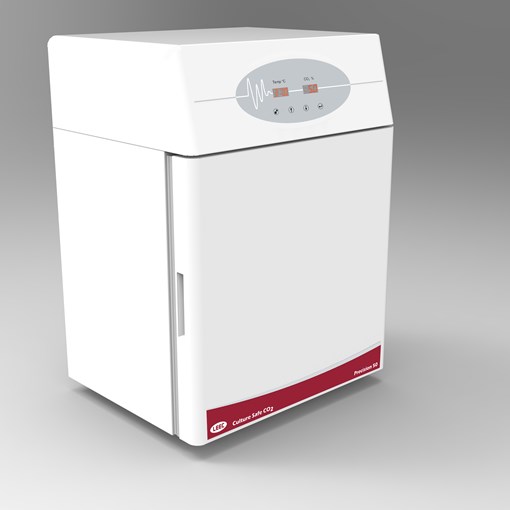

LEEC mini Culture Safe Precision CO2 incubator has a fully sealed, one-piece deep-drawn, 50 litre chamber which is manufactured from grade 304 stainless steel. The outer cabinet is manufactured from stainless steel and has an anti-bacterial polyester powder coat paint finish giving the CO2 incubator exceptional corrosion and contamination resistance.

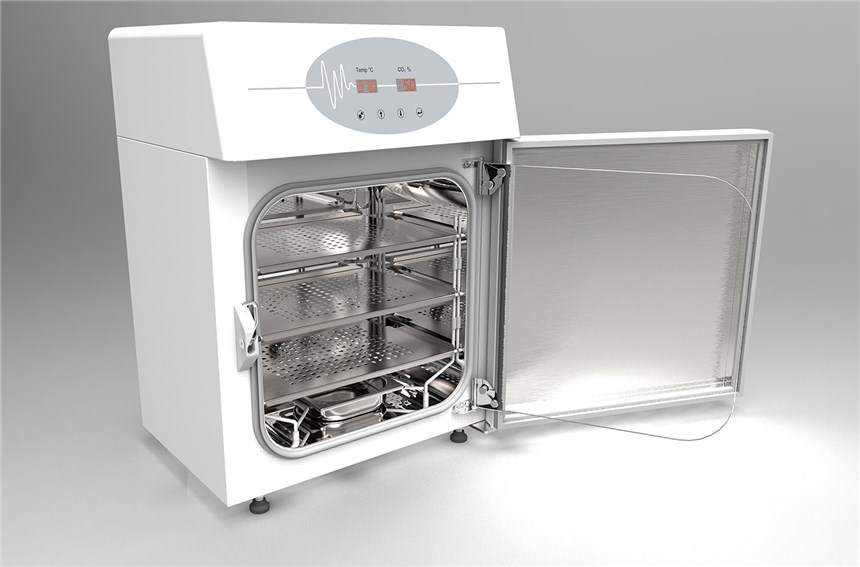

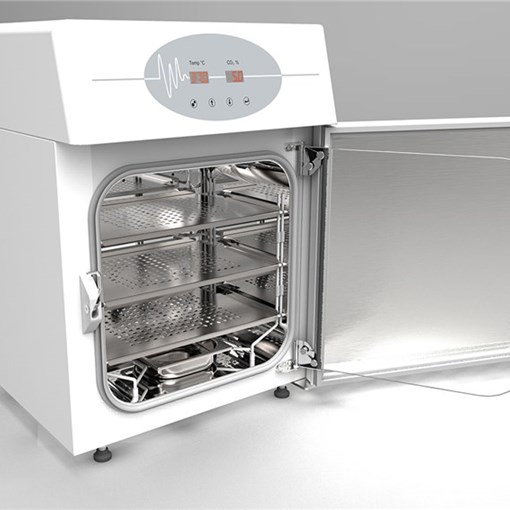

LEEC mini Culture Safe CO2 incubators have 6-sided, fan-less heating systems with high-performance thermal insulation, minimising the risk of contamination and lowering running costs. Each incubator has an inner glass viewing door which allows for a clear view into chamber without disturbing the internal atmosphere. The outer door provides a firm seal with a magnetic gasket. LEEC utilise an infrared CO2 sensor, giving a more accurate reading of the internal atmosphere irrespective of the humidity level.

Download Brochure

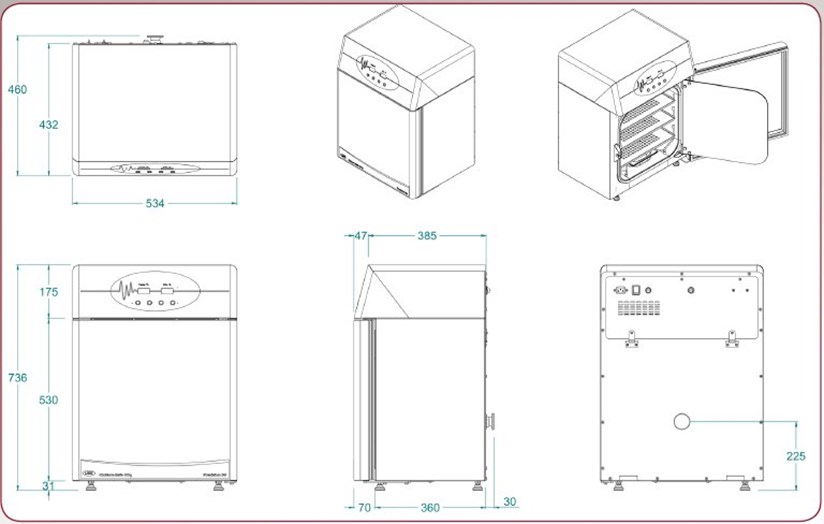

P50 external dimensions

  P50
Temperature Range 5°C above ambient to +60°C
Temperature Control 0.1°C
Temperature Stability ± 0.1°C @ 37°C
Temperature Uniformity ± 0.25°C @ 37°C
CO2 Range 0% to 20%
CO2 Control ± 0.1%
CO2 Stability ± 0.2%
CO2 Uniformity ± 0.2%
CO2 Sensor Infrared (externally mounted)
Min CO2 inlet pressure 5 psi / 0.3 bar
Max CO2 inlet pressure 10 psi / 0.7 bar
Power Requirements

240V AC, 50/60 Hz

350W nominal

(120V version available)

Humidity (@37ºC / 5% CO2) up to 90% RH
Shelves Included 3 (stainless steel)
Access port 1 (24mm diameter)
Weight 38 KG (P50)



Every LEEC mini Culture Safe Precision CO2 incubator is hand made to order at our Nottingham factory. We also offer several options and accessories:

Options
3ID

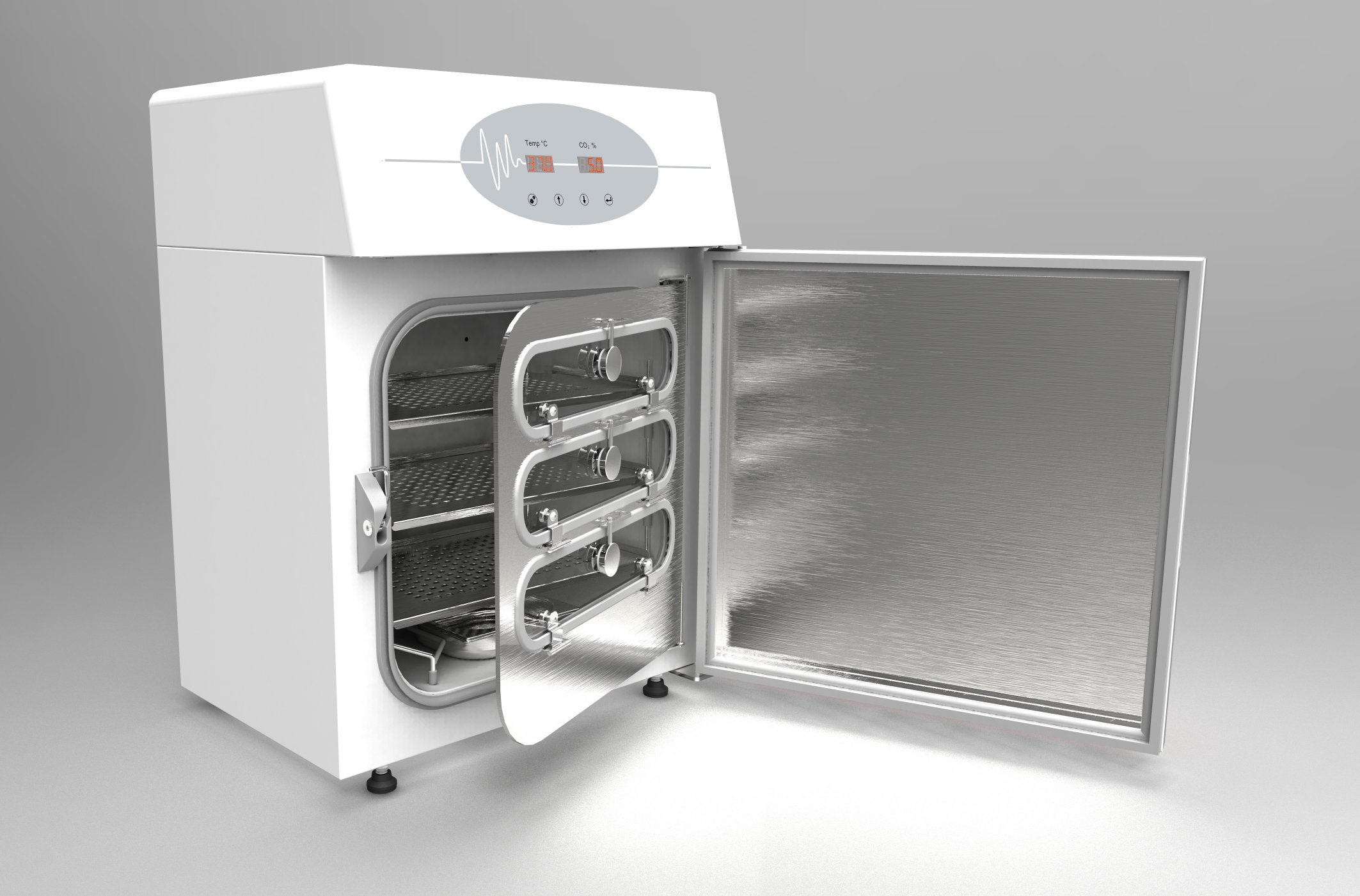

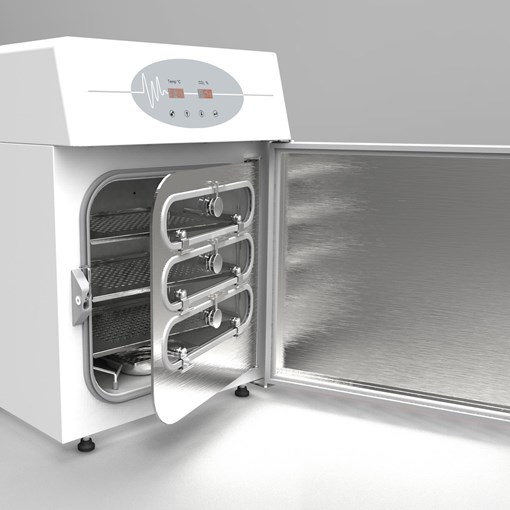

3 inner doors option (multi door)
6ID
6 inner doors option (multi door)
Accessories
PTSK3

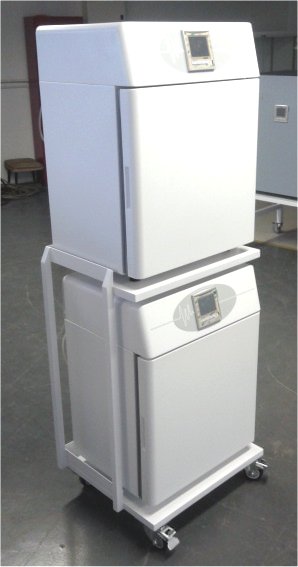

Wheeled stacking frame for two 50L models
PRV2
Two stage CO2 cylinder pressure reducing valve with gauges
R06
In-line CO2 pressure reducing valve with gauge (2 to 30 psi)
PNEU
Automatic cylinder change over unit for two cylinders
TUBE 2
TYGON CO2 tubing, 4mm internal / 6mm external
