Features:

  • Stainless steel construction
  • Energy efficient
  • Fully sealed chamber
  • Simple to use
  • Fan assisted air circulation
  • Fast recovery time
  • Anti-microbial paint
  • Digital temperature control
  • Radius corners - easy to clean and disinfect
  • Supersedes K1, K2 and K3 Compact Incubators

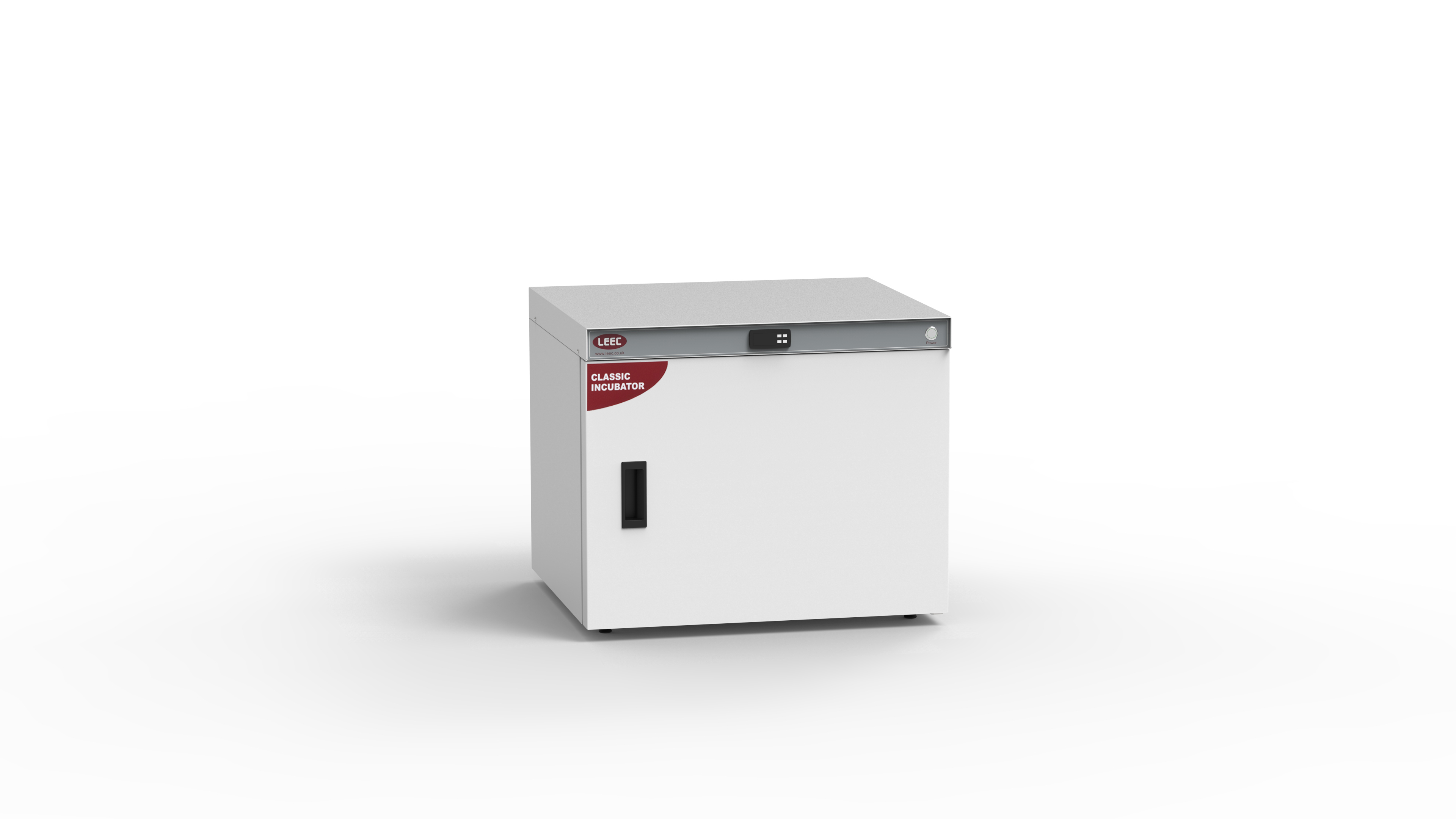

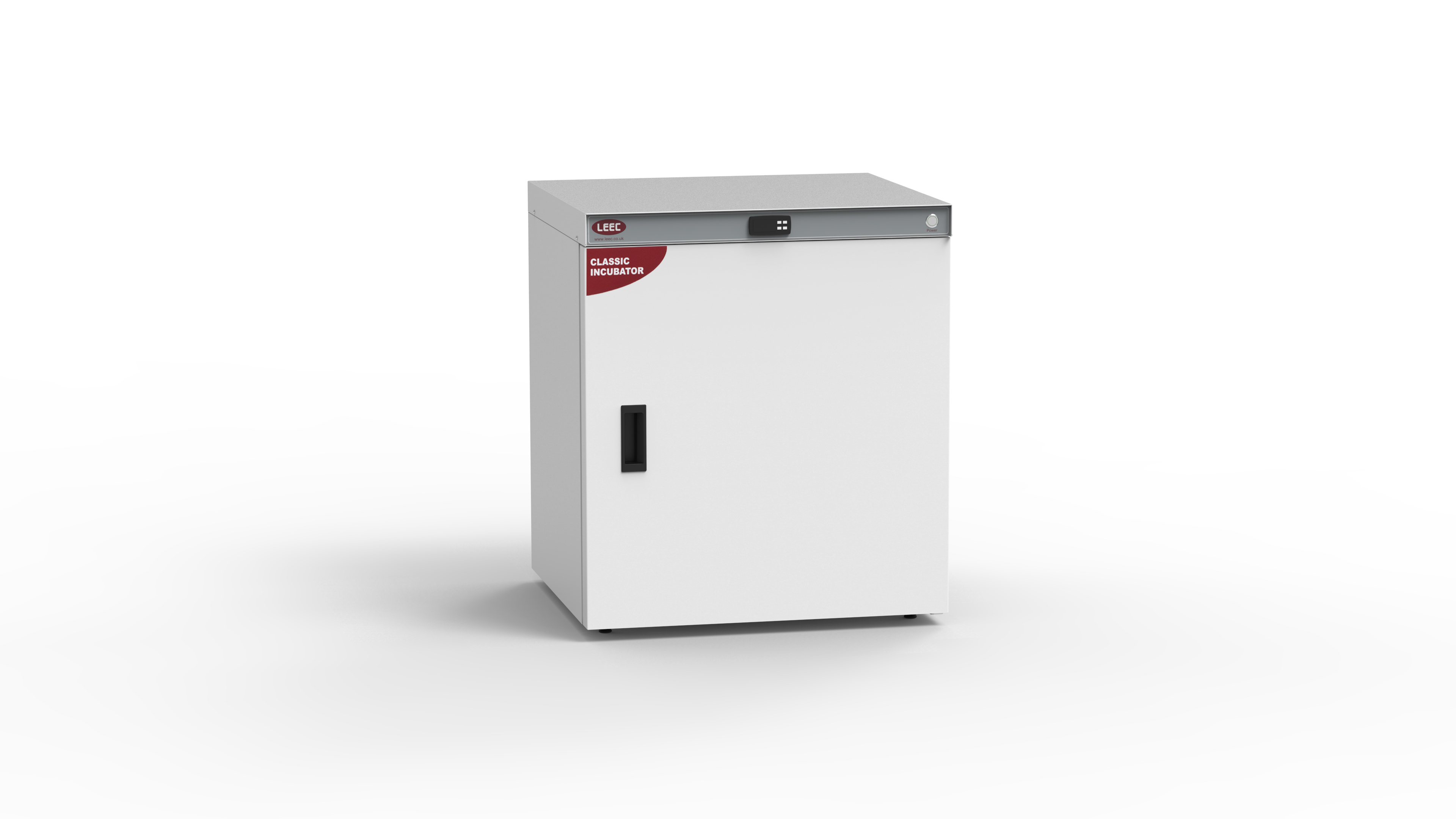

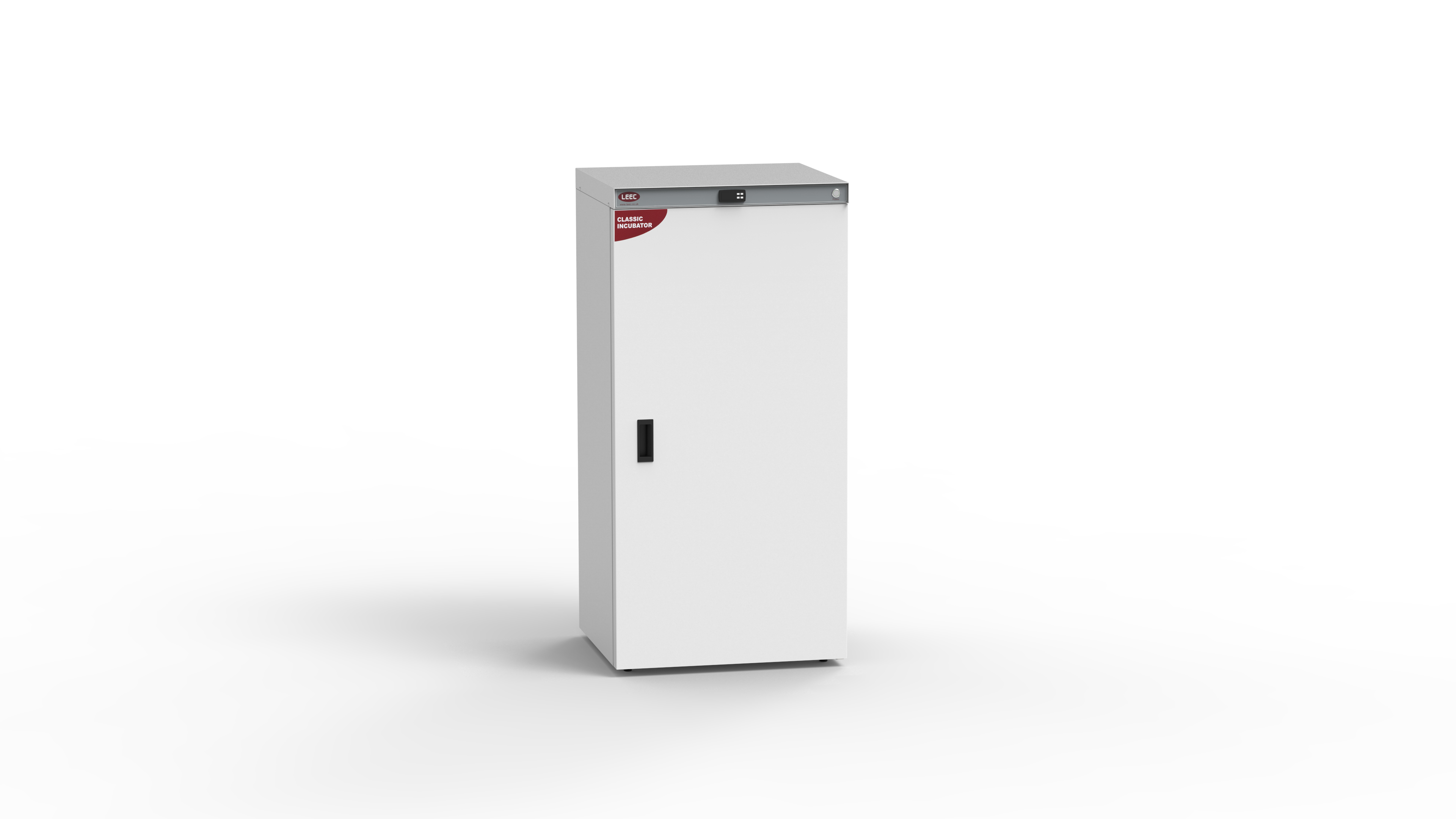

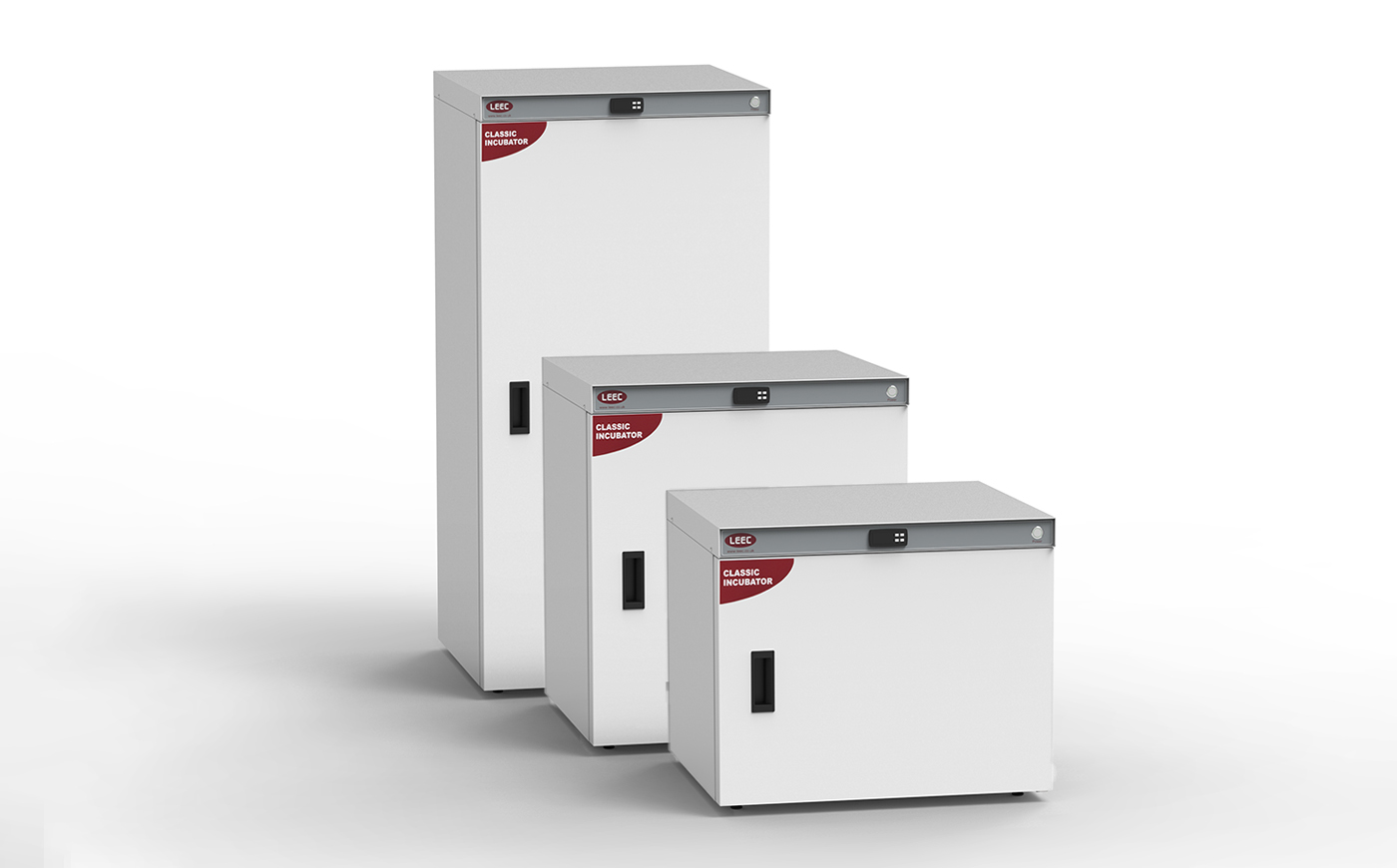

LEEC Classic Incubators are available in 3 sizes 100 litres (C100), 157 litres (C157) and 330 litres (C330) which all feature the impeccable construction and quality you would expect from a LEEC product. All classic incubators have fully sealed chambers manufactured from polished stainless steel with rounded corners for easy cleaning. The outer cabinet is manufactured from stainless steel and has a tough powder coat paint finish. An inner glass viewing door closes positively onto a silicone gasket and allows a clear view of the chamber contents without disturbing the internal atmosphere. A 12mm diameter rear access port allows temperature monitoring probes to be inserted safely into the incubator chamber.

New profiled resistive wire heating elements and high-performance insulation ensure optimum temperature control. All models have gentle fan assisted air circulation which ensures even temperature distribution throughout the chamber. Fast temperature recovery keeps heat loss to a minimum after door opening.

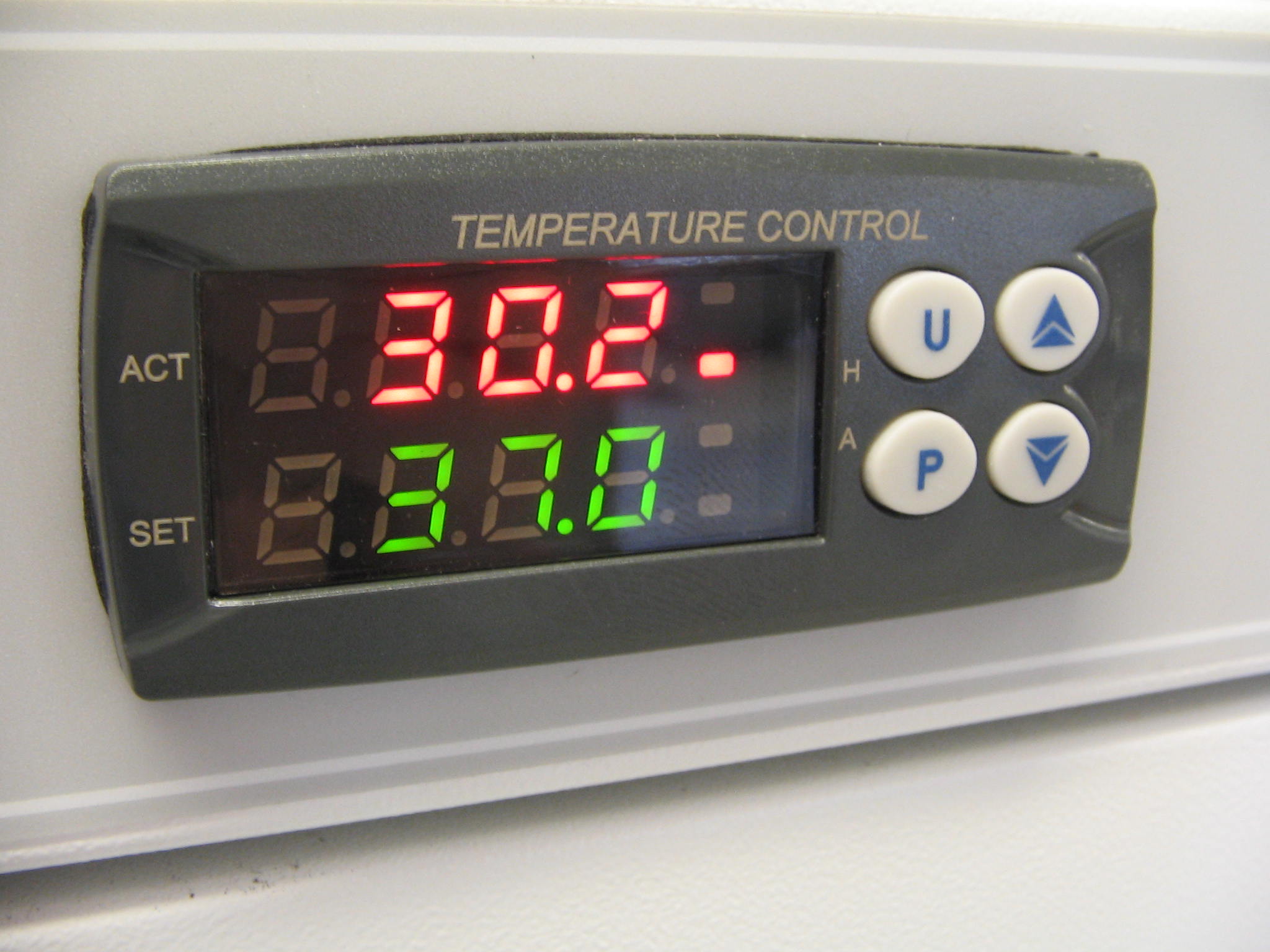

The latest microprocessor temperature controller technology gives this incubator range excellent temperature stability to within 0.1°C. Fuzzy Logic and Auto-Tune features allow the controller to adapt to each chamber size, optimising their performance and accuracy. The controller is simple to use, with target and actual temperatures being displayed in real-time on a two-colour digital display.

Over and under temperature alarm thresholds can be programmed into the controller. An independent safety cut out disconnects the heating elements should an over-temperature condition occur. The controller can be password protected too, stopping any unauthorised adjustments to the Set Point and alarm thresholds.

Download Brochure

  C100 C157 C330
External Dimensions
(H x W x D mm)
582 x 684 x 620 790 x 684 x 620 1417 x 684 x 620
Internal Dimensions
(H x W x D mm)
365 x 550 x 500 573 x 550 x 500 1200 x 550 x 500
Chamber Capacity 100L 157L 330L
Shelves Included 2 4 6
Power Rating Maximum 240 (watts) Maximum 280 (watts) Maximum 440 (watts)
Weight 54kg 70kg 107kg
Temperature Range At least 5°C above ambient to +60°C At least 5°C above ambient to +60°C At least 5°C above ambient to +60°C
Temperature Control Typically ± 0.1°C @ 37°C Typically ± 0.1°C @ 37°C Typically ± 0.1°C @ 37°C
Temperature Variation Typically better than ± 0.2°C @ 37°C Typically better than ± 0.2°C @ 37°C Typically better than ± 0.2°C @ 37°C
Temperature Recovery 2 minutes 3 minutes 4 minutes



Every LEEC Incubator is made to order to meet the exacting needs of every customer. LEEC prides itself on being able to deliver exactly what the customer wants and relishes the challenge of producing an Incubator that is tailored to every specific customer need.



Options

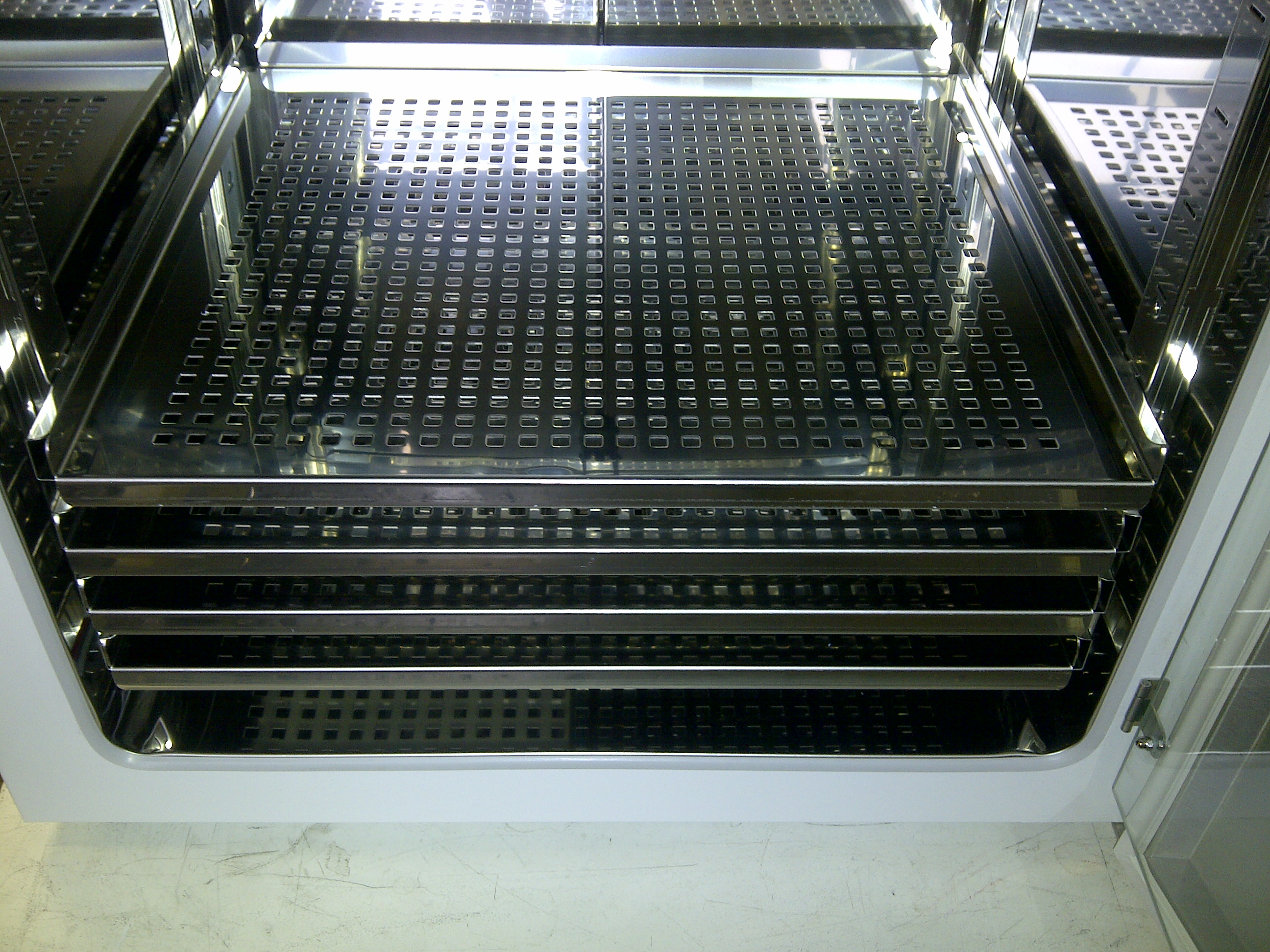

SHC
Spare stainless steel shelf and runners for C100, C157 or C330.

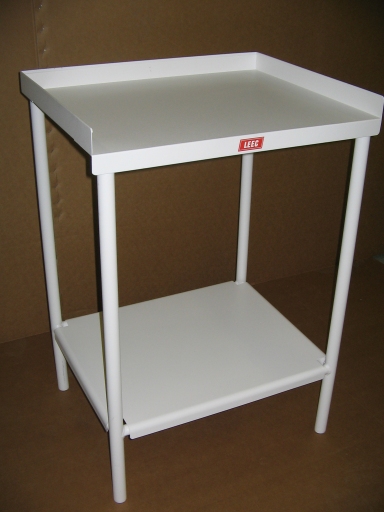

WST6
Stand with shelf for C100 or C157 (950mm high).

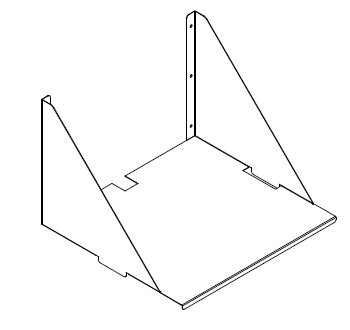

WST9
Stainless steel wall mounting system for C100.

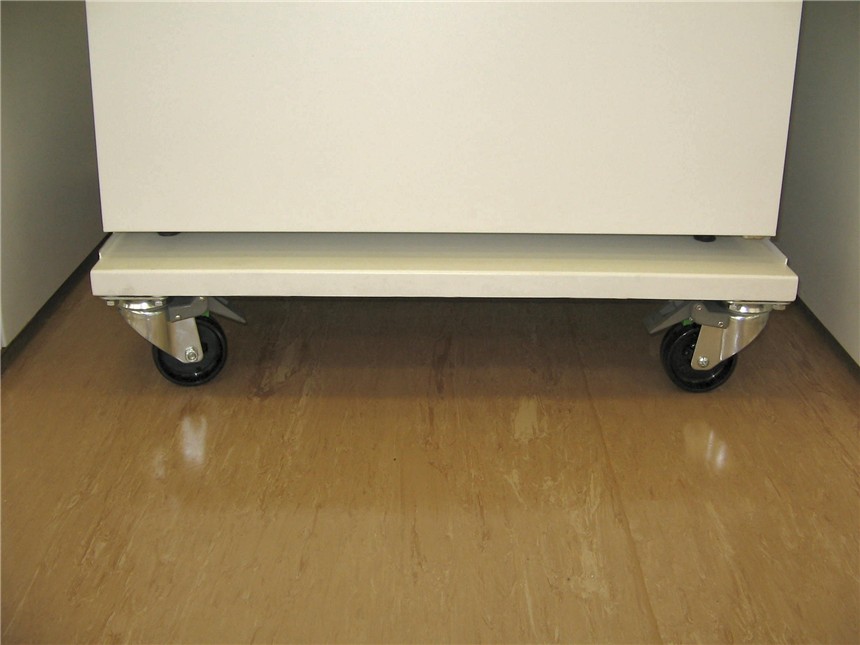

WST1
Wheeled platform for Classic Incubators.

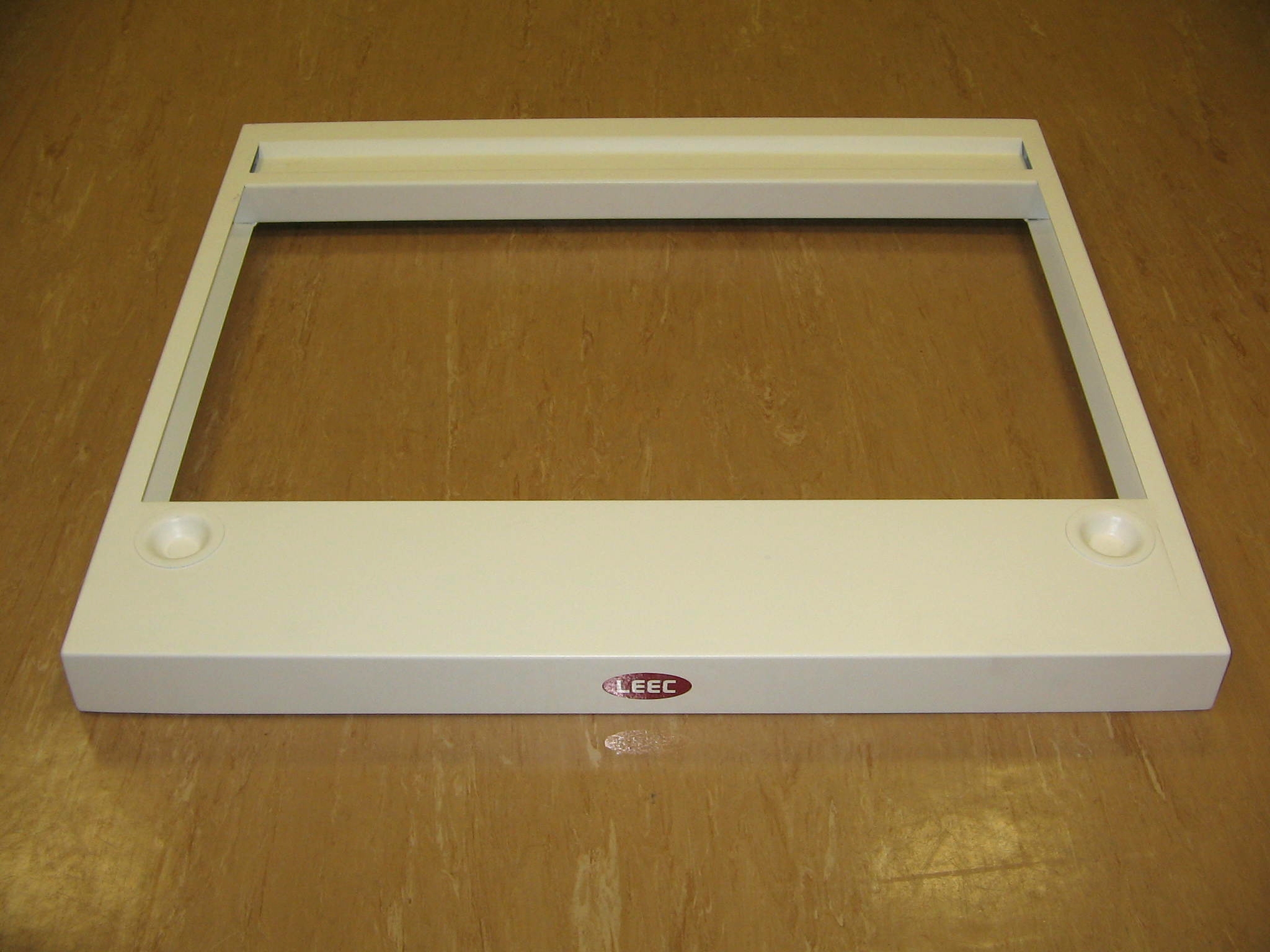

WST7
Stacking kit for Classic Incubators.
